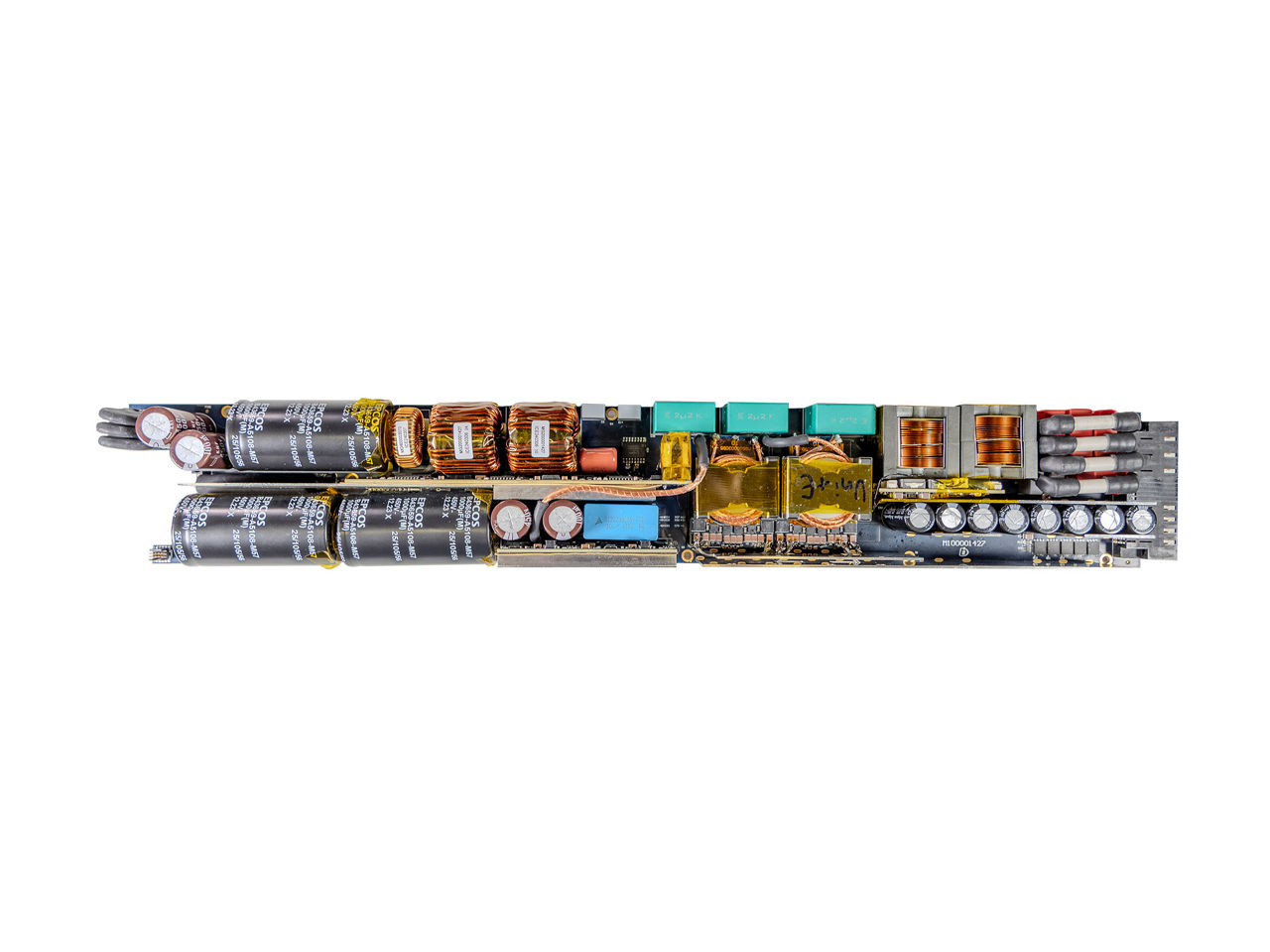

REF_8KW_HFHD_PSU

8 kW high power density and high frequency PSU for AI datacenters and servers
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_8KW_HFHD_PSU
REF_8KW_HFHD_PSU
Application Notes

Product details

  • Board Type
    Reference Board
  • Frequency
    500 kHz
  • Input Type
    AC
  • Output Voltage Type
    DC
  • Output Voltage
    50 V
  • Pout max
    8000 W
  • Qualification
    Consumer
  • Target Application
    AI, ML, GPU accelerator cards
  • Topology
    Full-bridge LLC, Totempole PFC
OPN
REF8KWHFHDPSUTOBO1
Product Status on request
Infineon Package -
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package -
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
REF_8KW_HFHD_PSU is a 8 kW complete Power Supply Unit for AI data centers. It features a peak efficiency of 97.5% 230 VAC including fan power consumption, and a 100 W/in3 power density. It features an inrush current limiting circuit with no electromechanical relays.

Features

  • 8 kW maximum output power
  • 97.5 % peak efficiency at 230 VAC
  • 96.5 % efficiency at 230 VAC
  • 40 x 73.5 x 450 mm including chassis
  • 100 W/in3 power density
  • 20 ms hold-up time @100% of output load
  • Protection LLC primary & output currents
  • AC input voltage brown-out protection
  • UVP & OVP protections on output voltage

Benefits

  • System solution using GaN, SiC and Si
  • Highest efficiency and power density
  • High power density planar transformer
  • Re-rush current control
  • Digital control for both converters
