REF_5QR2280BG-1_24W1

NEW

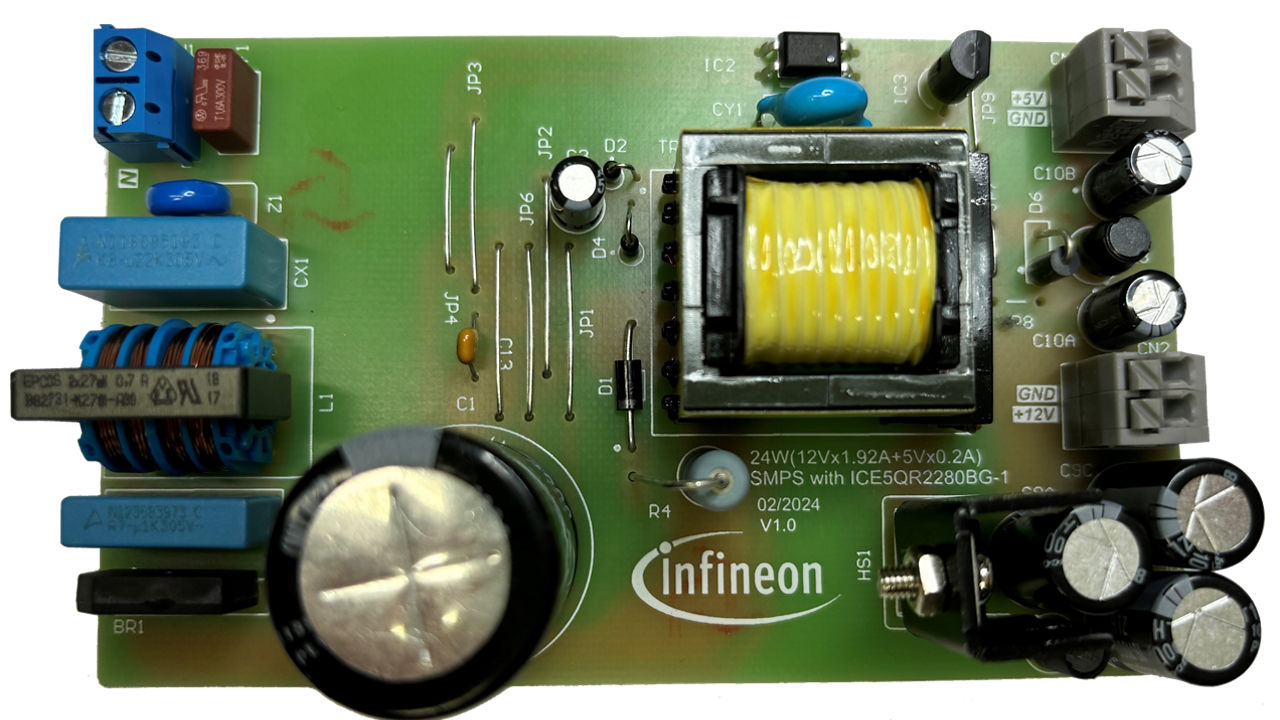

REF_5QR2280BG-1_24W1 is a reference board using the latest CoolSET™ 5th Generation Quasi Resonant Plus ICE5QR2280BG-1 switching controller.
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_5QR2280BG-1_24W1
REF_5QR2280BG-1_24W1
ea.
Application Notes

Product details

  • Board Type
    Reference Board
  • Configuration
    ICE5QR2280BG-1
  • Description
    This reference board features the new ICE5QR2280BG-1 PWM quasi resonant flyback CoolSET™ with 800V integrated MOSFET in DSO-12 package. The board is designed to operate under a wide range input and developed to target offline SMPS applications.
  • Dimensions
    110x66x27 (LxWxH) in mm
  • Family
    CoolSET™
  • Input Type
    AC
  • Output Current max
    1.92 A, 0.2 A
  • Pout max
    24 W
  • Qualification
    Consumer
  • Target Application
    - Home Appliances - AC DC power supplies for servers
  • Topology
    Flyback
Recommended
OPN
REF5QR2280BG124W1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This 24 W auxiliary SMPS reference design operates under a wide range input developed with indoor residential airconditioning application in mind. It features the new CoolSET™ 5th Generation Quasi Resonant Plus ICE5QR2280BG-1 with 800m V integrated MOSFET in DSO-12 package.

Features

  • Universal input: 85 ~300 VAC, 50/60 Hz
  • Output 1: 12 V
  • Output current 1: 1.92 A
  • Output 2: 5 V
  • Output current 2: 0.2 A

Benefits

  • Robust operation
  • Digital frequency reduction
  • Programmable burst mode
  • Integrated 800 V MOSFET

Bill of Material
