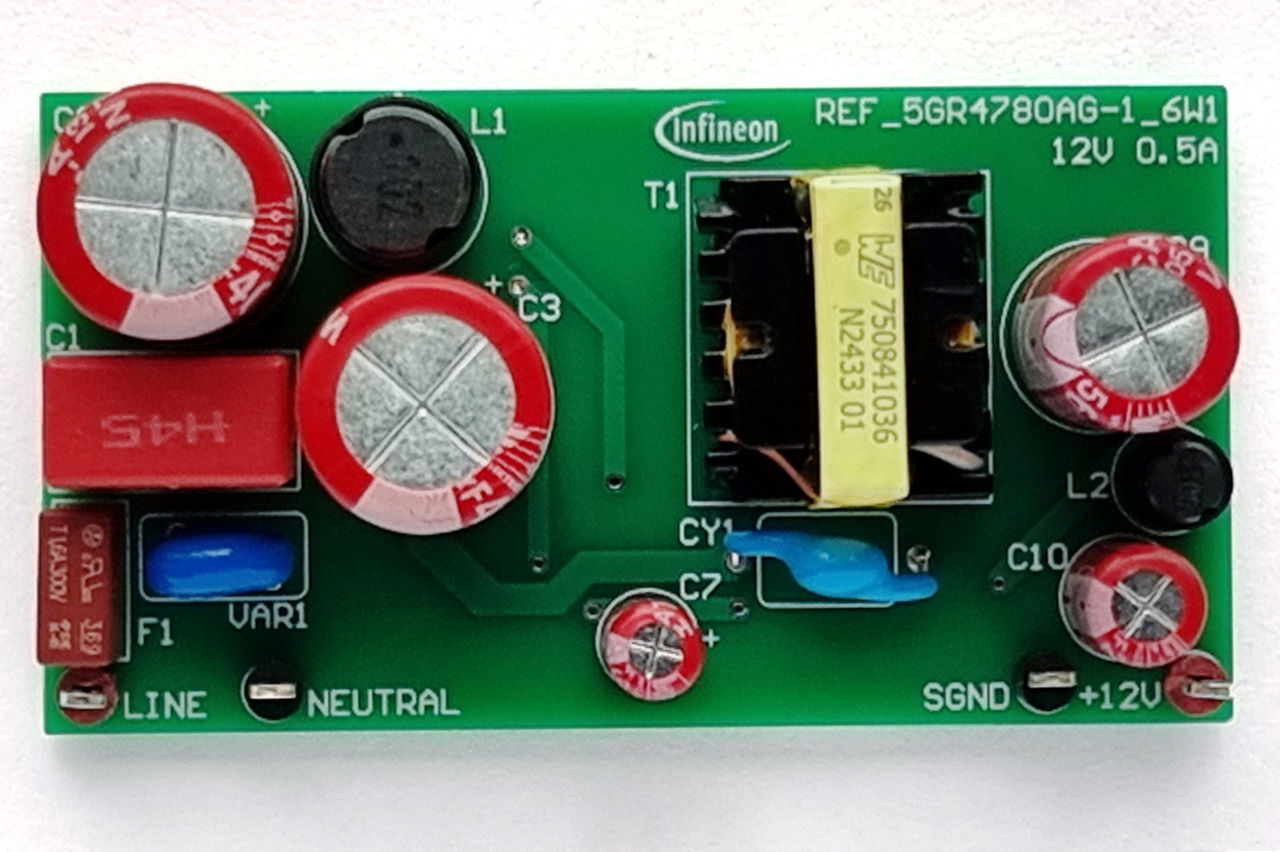

REF_5GR4780AG-1_6W1 is a reference board using the latest CoolSET™ 5th Generation Fixed Frequency Plus ICE5GR4780AG-1 switching controller.
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_5GR4780AG-1_6W1
REF_5GR4780AG-1_6W1
ea.

Product details

  • Board Type
    Reference Board
  • Dimensions
    65x35x25 mm
  • Family
    CoolSET™
  • Frequency
    53 kHz to 125 kHz
  • Input Type
    AC
  • Output Current max
    0.5 A
  • Output Voltage
    12 V
  • Pout max
    6 W
  • Qualification
    Consumer
  • Supply Voltage
    85 V to 264 V
  • Topology
    Flyback
Recommended
OPN
REF5GR4780AG16W1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This 6 W reference board operates under a wide range input developed with offline SMPS application in mind. It features the new CoolSET™ 5th Generation Fixed Frequency Plus ICE5GR4780AG-1 with 800 V integrated MOSFET in DSO-12 package.

Features

  • Universal Input: 85 ~264 VAC, 50/60 Hz
  • Output 1: 12 V
  • Output Current 1: 0.5 A

Benefits

  • Robust operation
  • Digital frequency reduction
  • Programmable burst mode
  • Integrated 800 V MOSFET

List of Components:

Applications

Home appliances

Bill of Material
