Active and preferred
RoHS Compliant

REF_5AR4780BZS-1_14W1

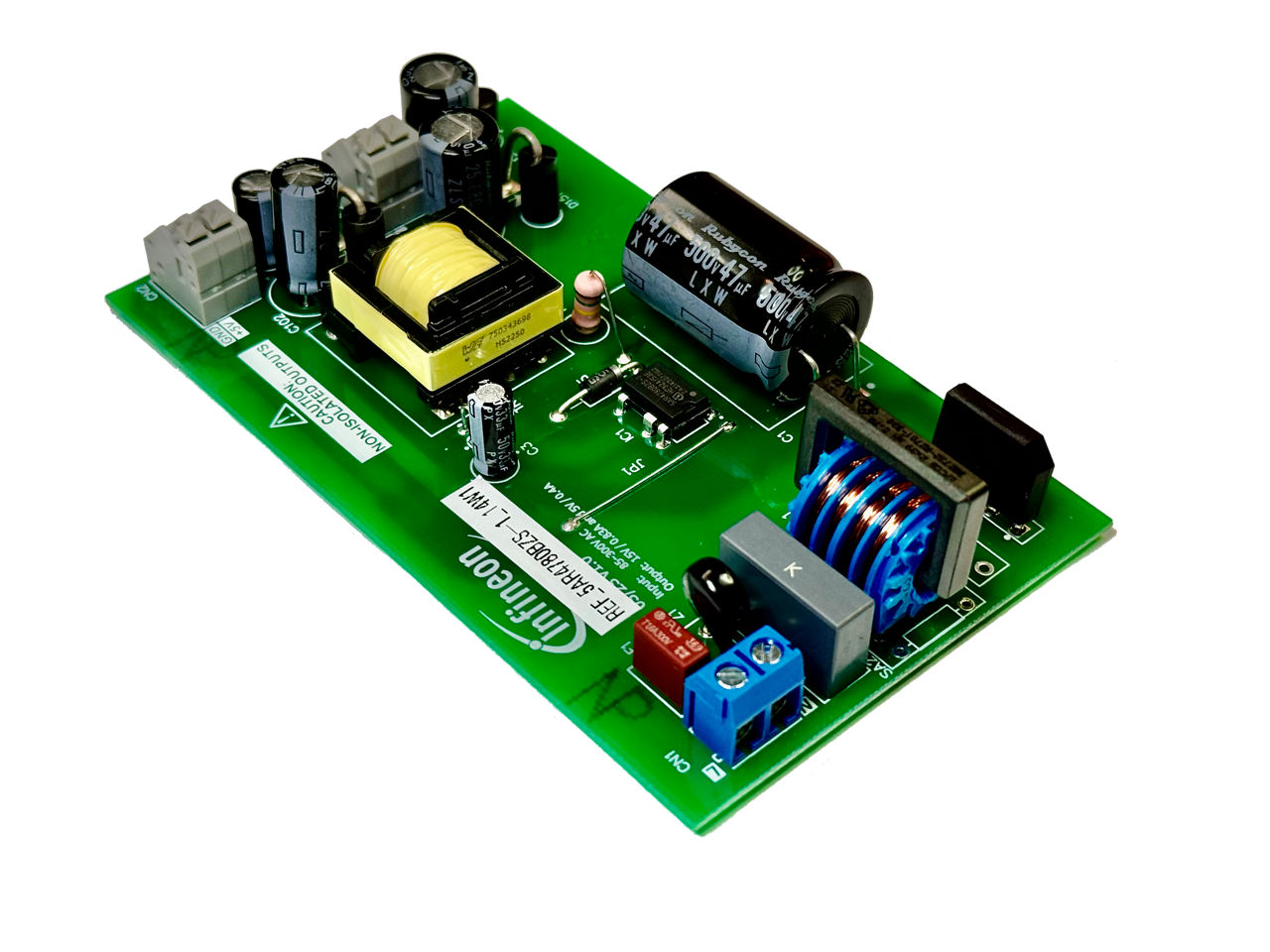

REF_5AR4780BZS-1_14W1 is a reference board using the latest CoolSET™ 5th Generation Fixed Frequency Plus ICE5AR4780BZS-1 switching controller.
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_5AR4780BZS-1_14W1
REF_5AR4780BZS-1_14W1
ea.
Application Notes

Product details

  • Board Type
    Reference Board
  • Configuration
    ICE5AR4780BZS-1
  • Dimensions
    110mm x 66mm x 27mm
  • Family
    CoolSET™
  • Frequency
    43 kHz to 100 kHz
  • Input Type
    AC
  • Output Current max
    0.83 A, 0.4 A
  • Output Voltage
    15 V, 5 V, 15 V, 5 V
  • Pout max
    14 W
  • Qualification
    Consumer
  • Supply Voltage
    85 V to 300 V
  • Topology
    Flyback
Recommended
OPN
REF5AR4780BZS114W1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This 14 W auxiliary SMPS reference design operates under a wide range input developed with indoor residential aircon application in mind. It features the new CoolSET™ 5th Generation Fixed Frequency Plus ICE5AR4780BZS-1 with 700 V integrated MOSFET in DIP-7 package.

Features

  • Universal input: 85 ~300 VAC, 50/60 Hz
  • Output 1: 15 V (non isolated)
  • Output current 1: 830 mA (for 15 V)
  • Output 2: 5 V (non isolated)
  • Output current 2: 400 mA (for 5 V)

Benefits

  • Robust operation
  • Frequency reduction at light loads
  • Programmable burst mode
  • Integrated error amplifier
  • Integrated 800 V MOSFET
  • Either primary/secondary side regulation

Applications

Home appliances

Bill of Material
