REF_5AR4770BZS-1_15W1

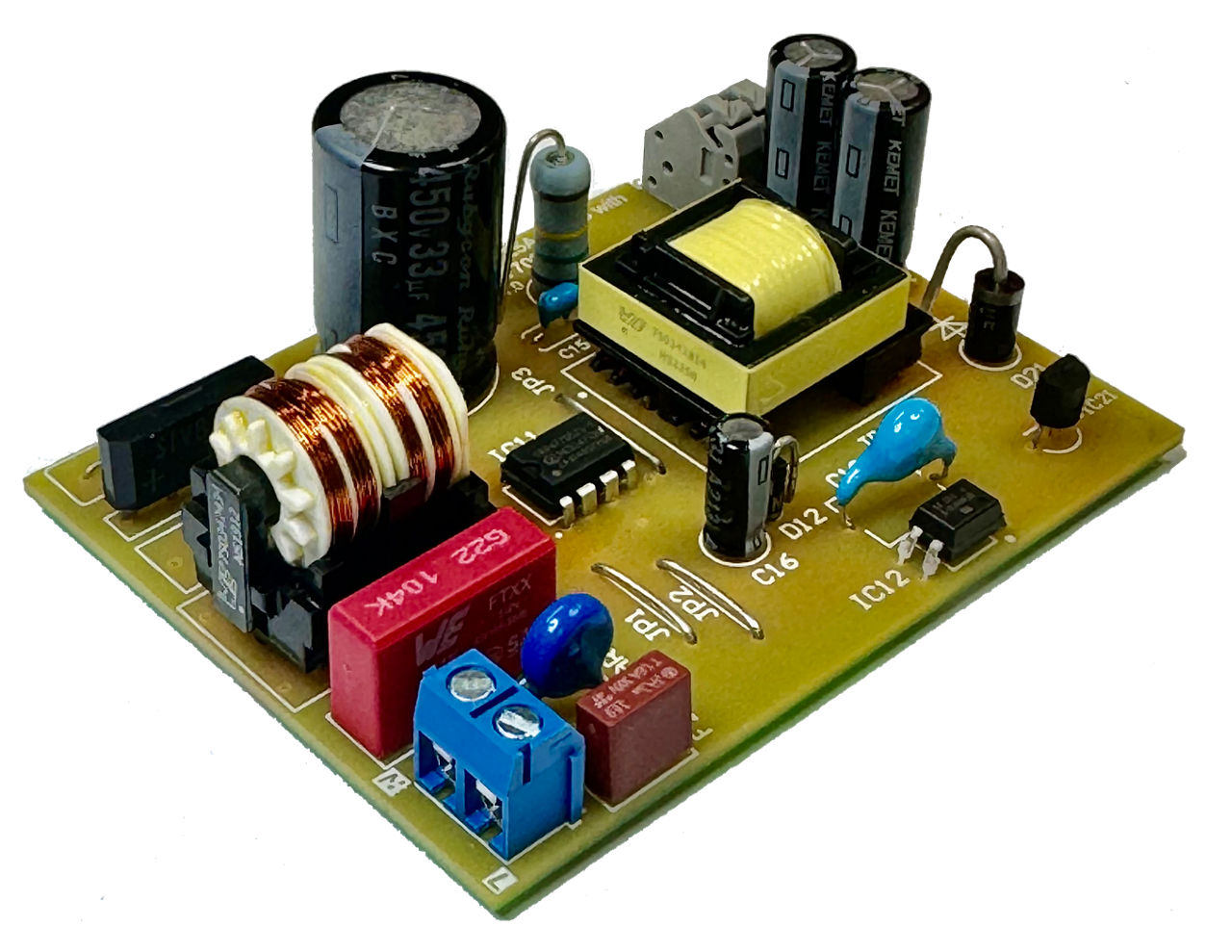

REF_5AR4770BZS-1_15W1 is a reference board using the latest CoolSET™ 5th Generation Fixed Frequency Plus ICE5AR4770BZS-1 switching controller.
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_5AR4770BZS-1_15W1
REF_5AR4770BZS-1_15W1
ea.
Application Notes

Product details

  • Board Type
    Reference Board
  • Configuration
    ICE5AR4770BZS-1
  • Dimensions
    60mm x 80mm x 32mm
  • Family
    CoolSET™
  • Frequency
    43 kHz to 100 kHz
  • Input Type
    AC
  • Output Current max
    1.25 A
  • Output Voltage
    12 V
  • Pout max
    15 W
  • Qualification
    Consumer
  • Supply Voltage
    90 V to 264 V
  • Topology
    Flyback
Recommended
OPN
REF5AR4770BZS115W1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This 15 W auxiliary SMPS reference design operates under a wide range input developed with indoor residential airconditioning application in mind. It features the new CoolSET™ 5th Generation Fixed Frequency Plus ICE5AR4770BZS-1 with 700 V integrated MOSFET in DIP-7 package.

Features

  • Universal input: 90 ~264 VAC, 50/60 Hz
  • Output: 12 V (isolated)
  • Output current: 1.25 A


Benefits

  • Robust operation
  • Frequency reduction at light loads
  • Programmable burst mode
  • Integrated error amplifier
  • Integrated 700 V MOSFET
  • Either primary/secondary side regulation


Applications

Home appliances
