Solar microinverter based on cyclo-inverter topology featuring PSOC™ control C3 MCU and CoolGaN™ bidirectional switches 650 V G5
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_500W_CYCLO_BDSGAN
REF_500W_CYCLO_BDSGAN
Application Notes

Product details

  • Efficiency
    97 %
  • Input Voltage
    22 V to 60 V
  • Operating Voltage
    185 V to 276 V
  • Power max
    500 W
  • Switching Frequency
    100 kHz to 350 kHz
OPN
REF500WCYCLOBDSGANTOBO1
Product Status on request
Infineon Package ---
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package ---
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

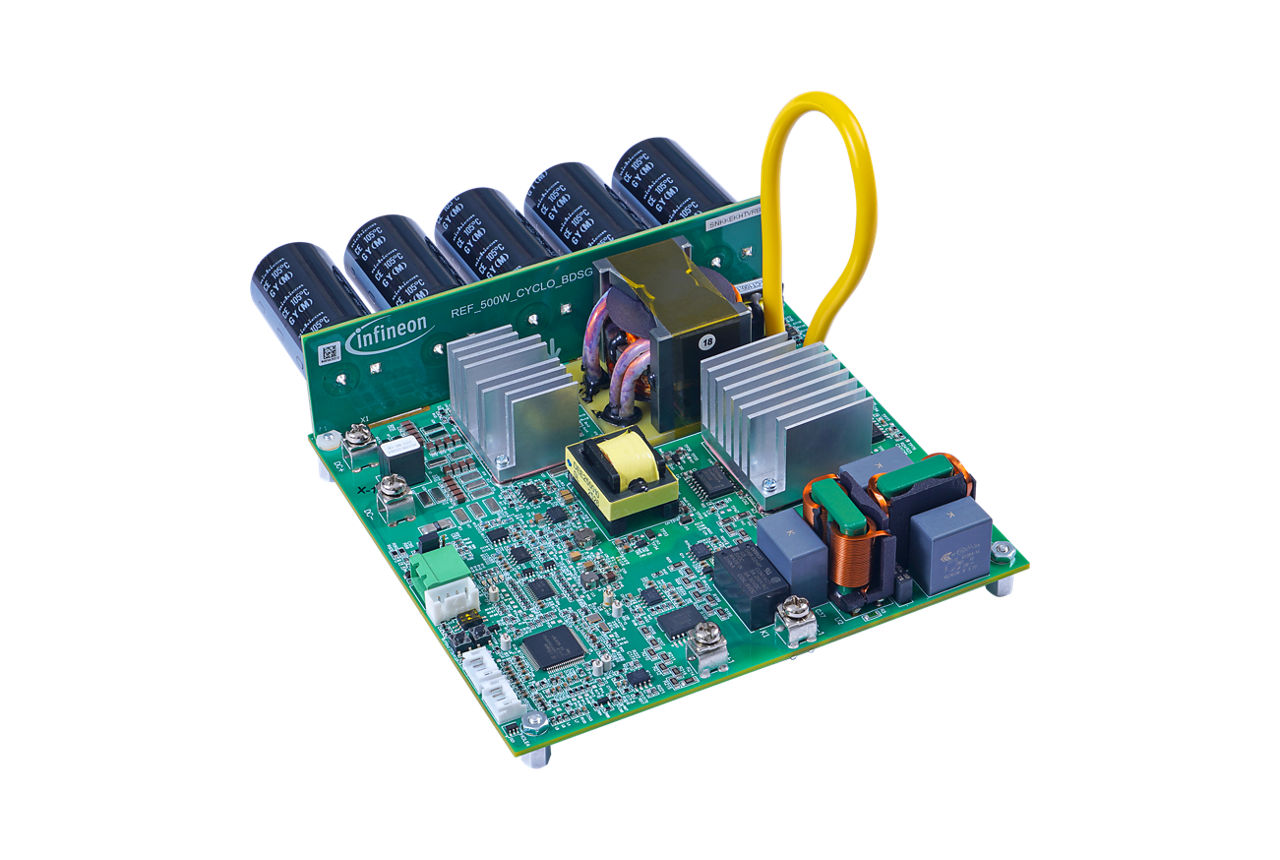

REF_500W_CYCLO_BDSGAN is a solar microinverter reference design based on a novel variation of the cyclo-converter topology. Control is implemented with Infineon's high-performance PSOC™ control C3 microcontroller with full-featured firmware including: AC power flow control, maximum power point tracking (MPPT) and comprehensive protection for safe operation.

Features

  • Grid tied operation
  • Off grid operation mode
  • Real and reactive AC power transfer
  • High efficiency
  • Burst mode for light-load efficiency
  • Displacement power factor 0.8 to 1.0
  • Maximum power point tracking (MPPT)
  • Over voltage protection
  • Over current protection
  • Thermal protection
  • AC grid disconnect relay
  • User-friendly PC based GUI tool

Benefits

  • >97% peak efficiency
  • 96.7% CEC weighted efficiency
  • Minimal thermal losses
  • Safety shutdown with relay disconnect
  • Easy operation with PC based GUI tool

Applications
