REF_45W1_ZVS_184LM

45 W power supply using CoolSET™ SiP ICE184LM
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_45W1_ZVS_184LM
REF_45W1_ZVS_184LM
ea.
Application Notes

Product details

  • Board Name
    REF_45W1_ZVS_184LM
  • Board Type
    Reference Board
  • Configuration
    ICE184LM
  • Family
    CoolSET™
  • Input Type
    AC
  • Output Current max
    3.75 A
  • Pout max
    45 W
  • Qualification
    Consumer
  • Supply Voltage
    90 V to 264 V
  • Topology
    Flyback
Recommended
OPN
REF45W1ZVS184LMTOBO2
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

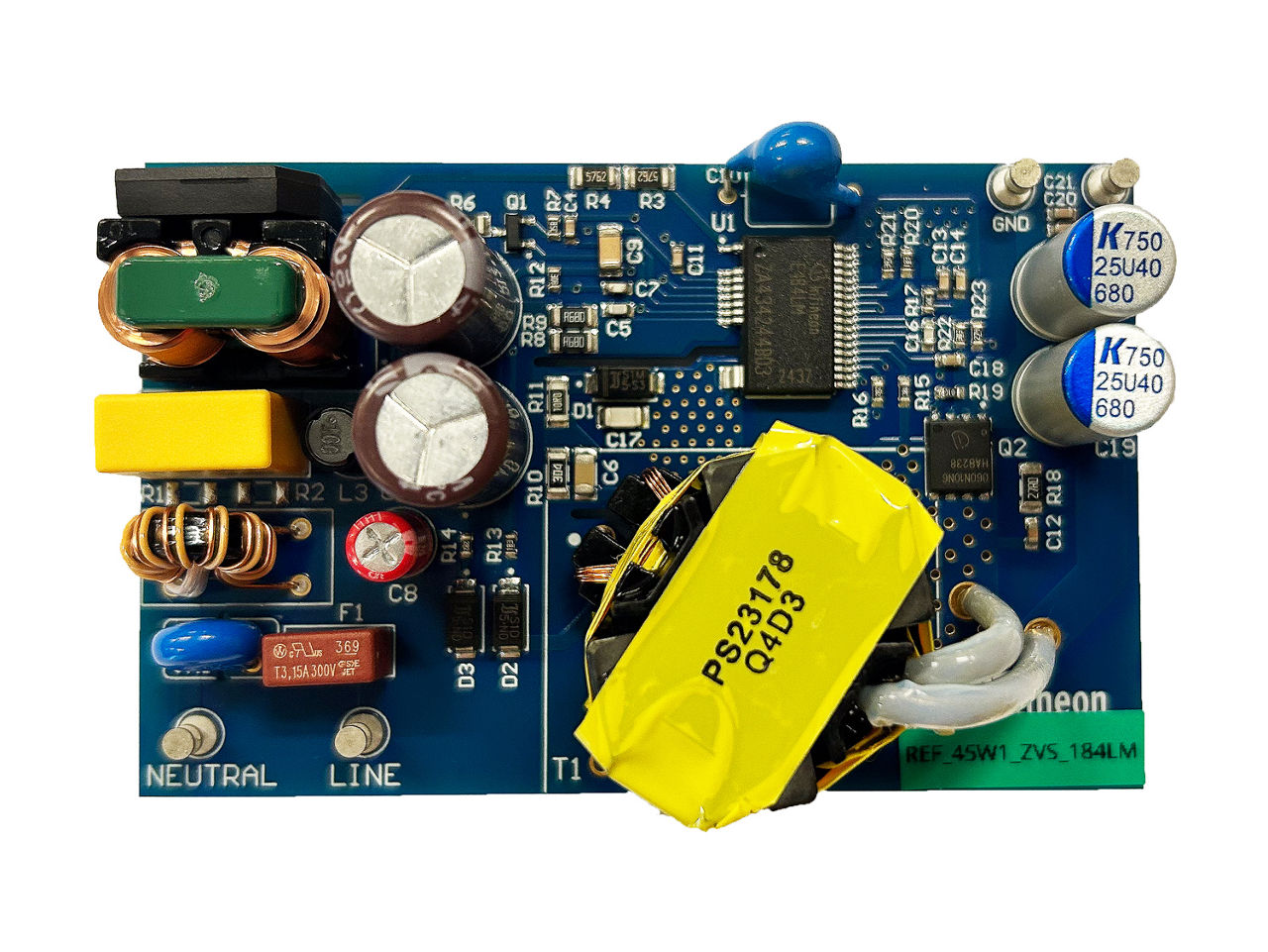

REF_45W1_ZVS_184LM is a 45 W auxiliary power supply reference design based on Infineon’s latest CoolSET™ SiP ICE184LM configured in a flyback topology.

Features

  • Universal input 90~264 VAC
  • Output: 12 V/3.75 A
  • > 92% full-load efficiency at 230 VAC
  • < 20 mW standby power at 230 VAC

Benefits

  • Fully integrated Flyback solution
  • High efficiency design with SR
  • Low standby loss
  • High reliability and robust operation

List of Components:
