REF_3K3W_3LFC_PSU
Active and preferred

REF_3K3W_3LFC_PSU

3.3 kW high power density AC-DC power supply reference design with 3-level flying capacitor PFC
Application note
Video
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_3K3W_3LFC_PSU
REF_3K3W_3LFC_PSU
ea.
Application note


Product details

  • Board Type
    Reference Board
  • Configuration
    1EDB8275F1EDB9275F1EDN8511B1EDN8550B2EDN7533B4DIR1400HICE2QR2280GIGT65R035D2IMT40R025M2HIPN60R3K4CEIPT60R016CM8IQE046N08LM5TLS4120D0EP V33TLS820D0EL V33XMC4200-Q48F256 AB
  • Description
    3.3 kW PSU with 3-level flying capacitor PFC
  • Efficiency
    97.6%
  • Family
    CoolSiC™
  • Frequency range
    45 kHz to 500 kHz
  • Input Type
    AC
  • Input Voltage range
    180 V to 265 V
  • Input Voltage
    230 V
  • Operating Voltage range
    48 V to 51 V
  • Output Current range
    0 A to 69 A, 0 A to 69 A
  • Output Current
    66 A, 66 A
  • Output Voltage range
    48 V to 51 V
  • Supply Voltage range
    230 V to 265 V
  • Target Application
    Telecom, Data Centers
  • Topology
    PFC

Recommended
OPN
REF3K3W3LFCPSUTOBO1
Product Status active and preferred
Infineon Package L-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package L-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

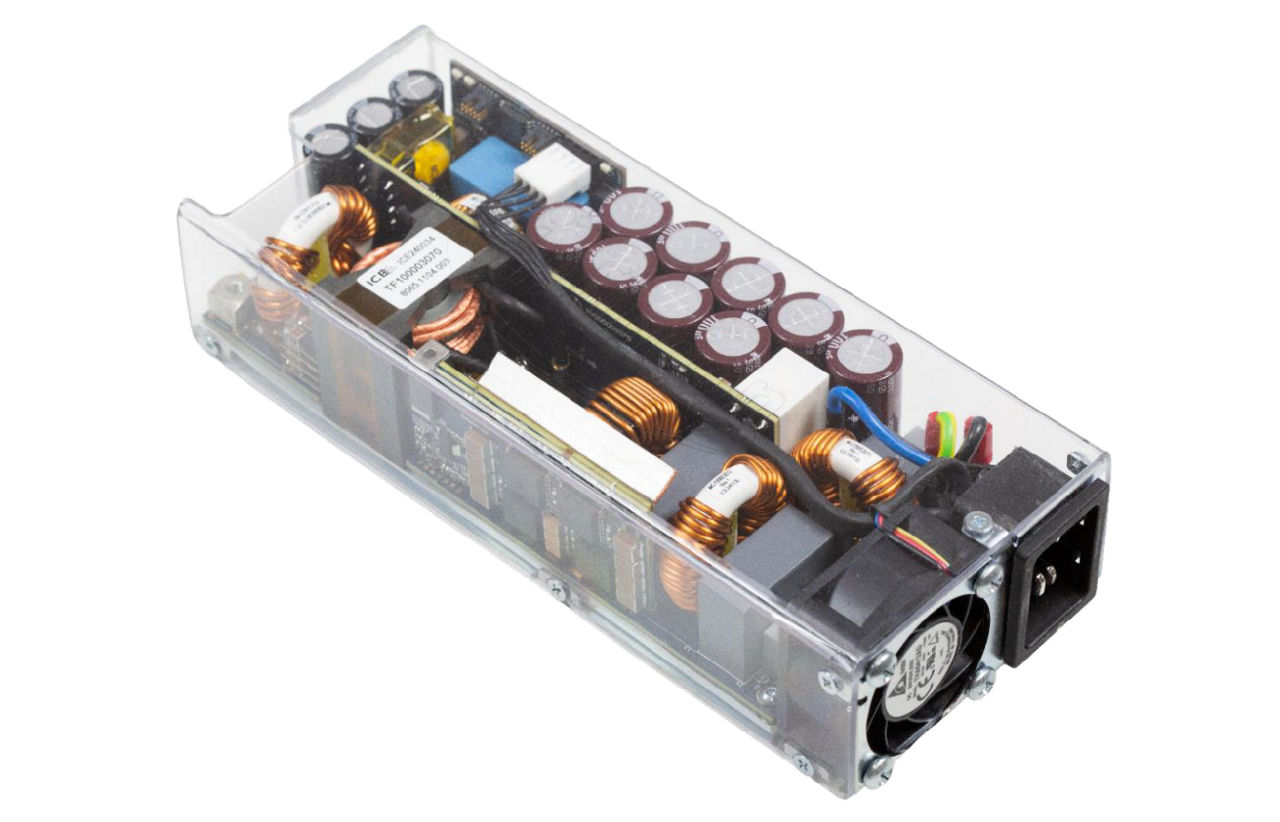

REF_3K3W_3LFC_PSU is a 3.3 kW high-frequency and high-density PSU for server telecom applications. The front-end AC-DC converter is a 3-level flying capacitor (3LFC) implemented with 400 V CoolSiC™ for power factor correction, while the high-frequency (500 kHz) DC-DC converter to provide isolation and regulate output voltage is a GaN LLC half-bridge, with full-bridge rectification. The PSU includes a baby-boost stage to hold-up time requirements.

Features

  • 97.6% Peak efficiency @ 98 W/in³
  • 3-level flying capacitor PFC
  • High frequency GaN LLC (500 kHz)
  • Fully integrated transformer structure

Benefits

  • System solution using GaN, SiC and Si
  • OCP efficiency spec incl high p. density
  • Flying cap. charge solution at start-up
  • S3-level driving supply
  • Hold-up time extension circuit
