REF_1KW_PSU_5G_GAN

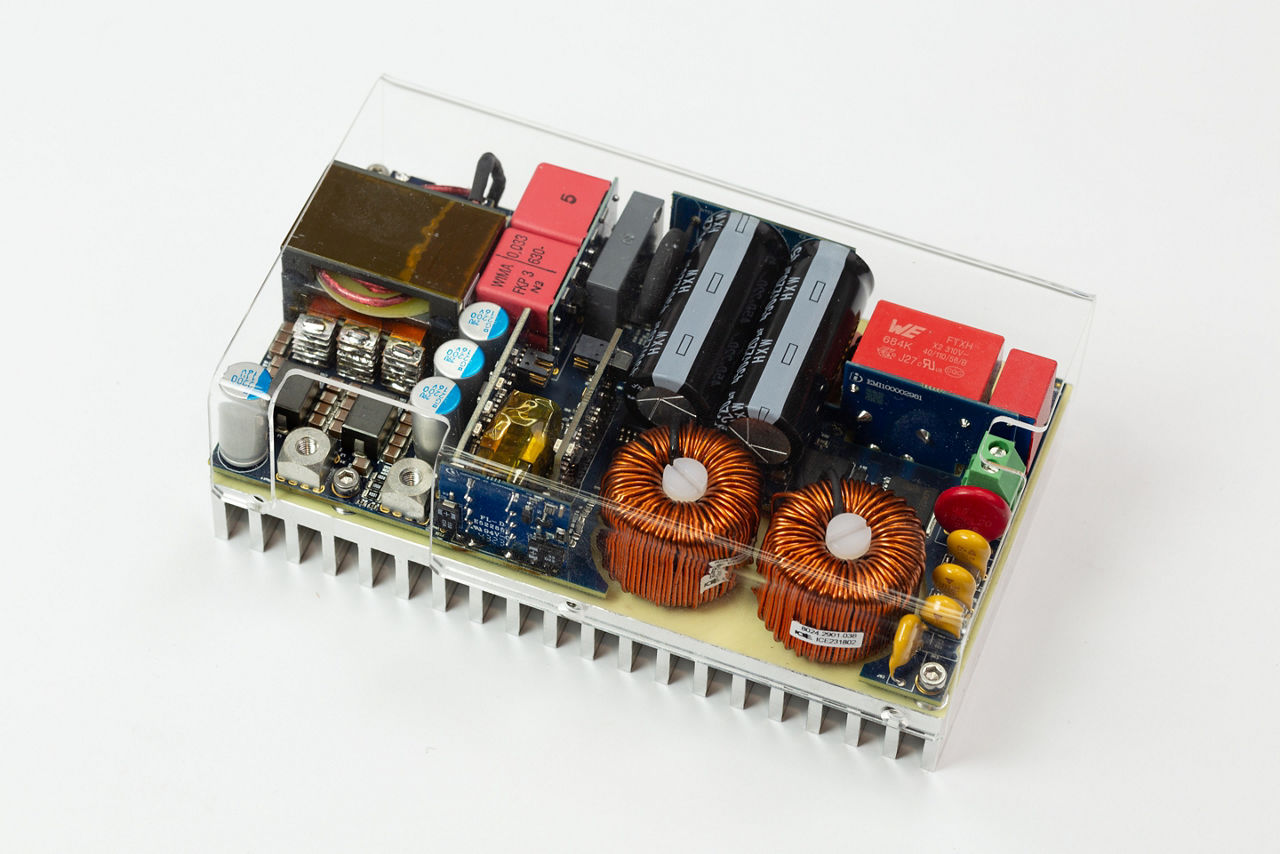

12 V/1 kW fan-less PSU with CoolGaN™ - ideal for outdoor 5G edge computing
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_1KW_PSU_5G_GAN
REF_1KW_PSU_5G_GAN
ea.
Application Notes

Product details

  • Efficiency
    96.3%, 10% load - 93%, 100% load - 96%
  • Input current
    9 A
  • Input Type
    AC
  • Input Voltage
    230 V
  • Output Current
    83 A
  • Output Voltage Type
    DC
  • Power max
    1000 W
Recommended
OPN
REF1KWPSU5GGANTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The PSU comprises a front-end AC-DC bridgeless totem-pole PFC converter followed by a back-end DC-DC isolated half-bridge (HB) LLC converter. The front-end converter provides power factor correction (PFC) and control of the total harmonic distortion (THD). The LLC converter provides safety isolation and a tightly regulated output voltage at 12 VDC.

Features

  • CCM totem-pole PFC
  • HB LLC
  • Full digital control in both PFC & LLC
  • Fan-less cooling

Benefits

  • Ideal for outdoor edge computing SMPS
  • Low profile
  • High efficiency
