PROF_2 BTS7008-1EPP DB
PROF_2 BTS7008-1EPP DB
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    High-side switches, PROFET™ +2 12V
Recommended
OPN
PROF2BTS70081EPPDBTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

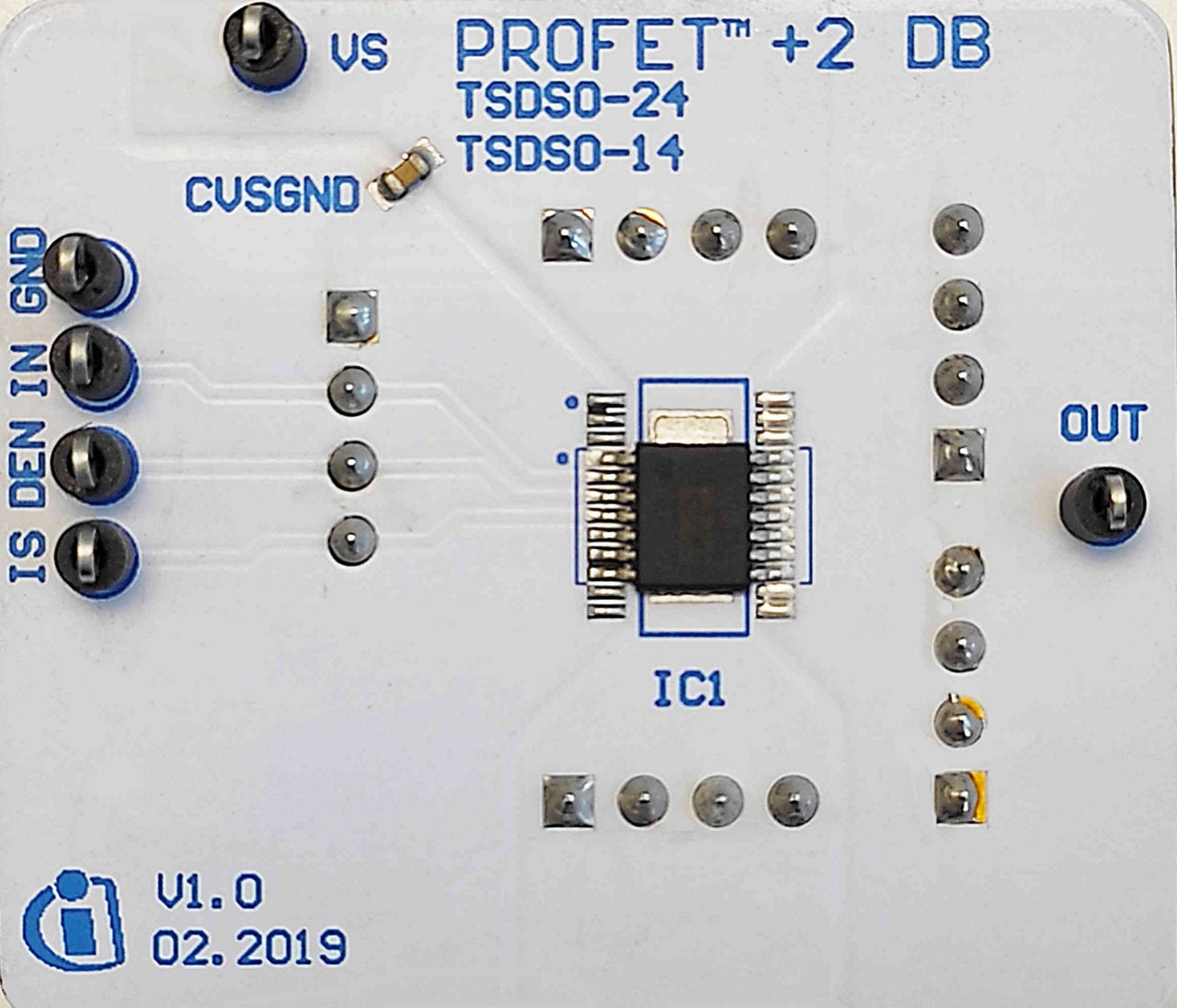

This daughterboard comes with 1 Smart High-Side switch of BTS7008-1EPP and is compatible with the PROFET™+2 12V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daughterboard is capable to drive typical automotive loads.

Features

  • High-Side Switch and Embedded Protection
  • V: 3.1-28V, 3.3V/5V compatible logic I/P
  • Protection: current tripping
  • Diagnosis: load current sense output
  • Optimized for design flexibility family
  • Miniaturization / Shrink of the PCB Area

Benefits

  • 50% Lower Internal Operating Current
  • Current sensing accuracy≤ 8%nominal load
  • Smaller package size for area savings
  • Ultra-low leakage ≤ 0.5 μA @ 85°C

Applications
