on request
RoHS Compliant

PRG_XDP700_BRD

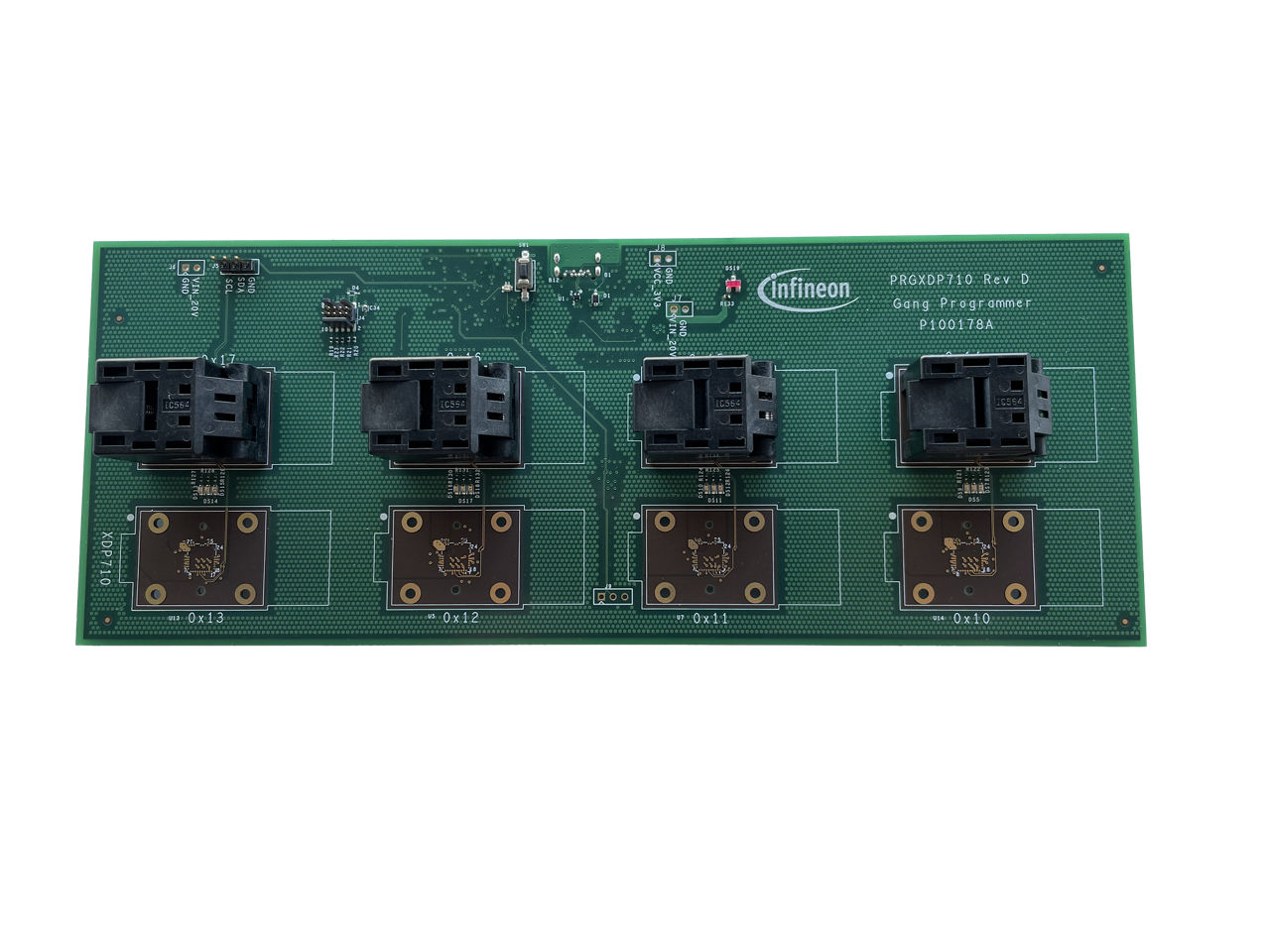

Gang programmer board for XDP700-002
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

PRG_XDP700_BRD
PRG_XDP700_BRD
User Manual

Product details

  • Board Type
    Evaluation Board
  • Input Type
    DC
  • Output Voltage max
    22 V
  • Qualification
    Industrial
  • Sub Application
    Cellular infrastructure
  • Supply Voltage max
    5 V
  • Target Application
    Telecom, DC-DC power conversion for telecom infrastructure
OPN
PRGXDP700BRDTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
This board is designed to program 4 devices simultaneoulsy offline. The programming dongle and the power supply is integrated on the board and requiers just a USB connection.

PRG_XDP700_BRD is available on demand, please contact us here to place your request or receive more information.

Features

  • Only USB connection required
  • Sockets to easily swap devices
  • Programming status LED indicators

Benefits

  • Program up to 4 devices simultaneously
  • Communication controller integrated
  • High voltage warning LED
  • Works with XDP Gang Programmer GUI
