OUT OF SHAFT FOR 3D 2 GO

XENSIV™ - Out of shaft adapter for all 3D magnetic sensor 2GO kits and Shield2Go
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

OUT OF SHAFT FOR 3D 2 GO
OUT OF SHAFT FOR 3D 2 GO
ea.

Product details

  • Board Type
    Evaluation Board
  • Family
    3D Magnetic Sensor
  • Target Application
    Industrial, Consumer, Automotive
Recommended
OPN
OUTOFSHAFTFOR3D2GOTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

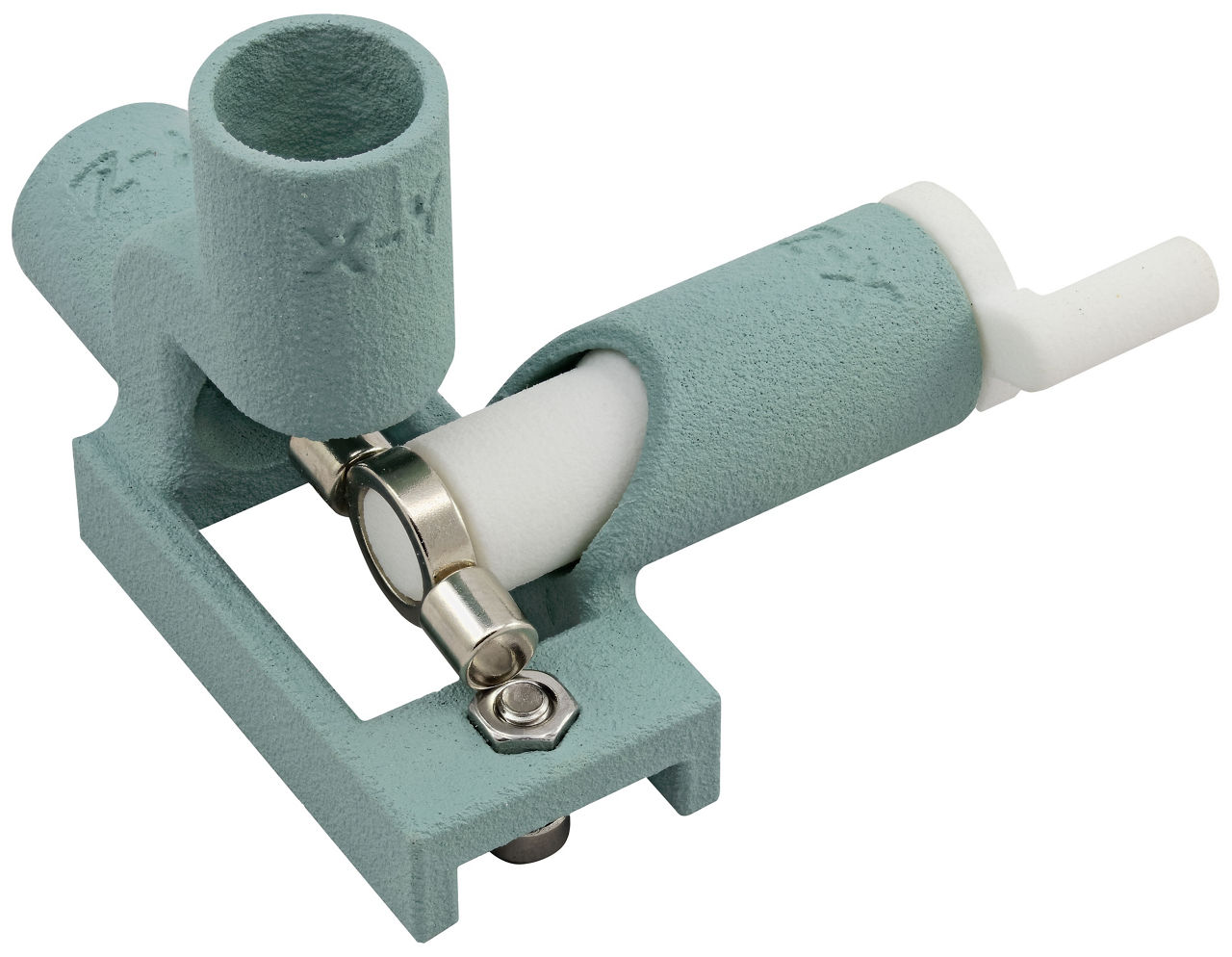

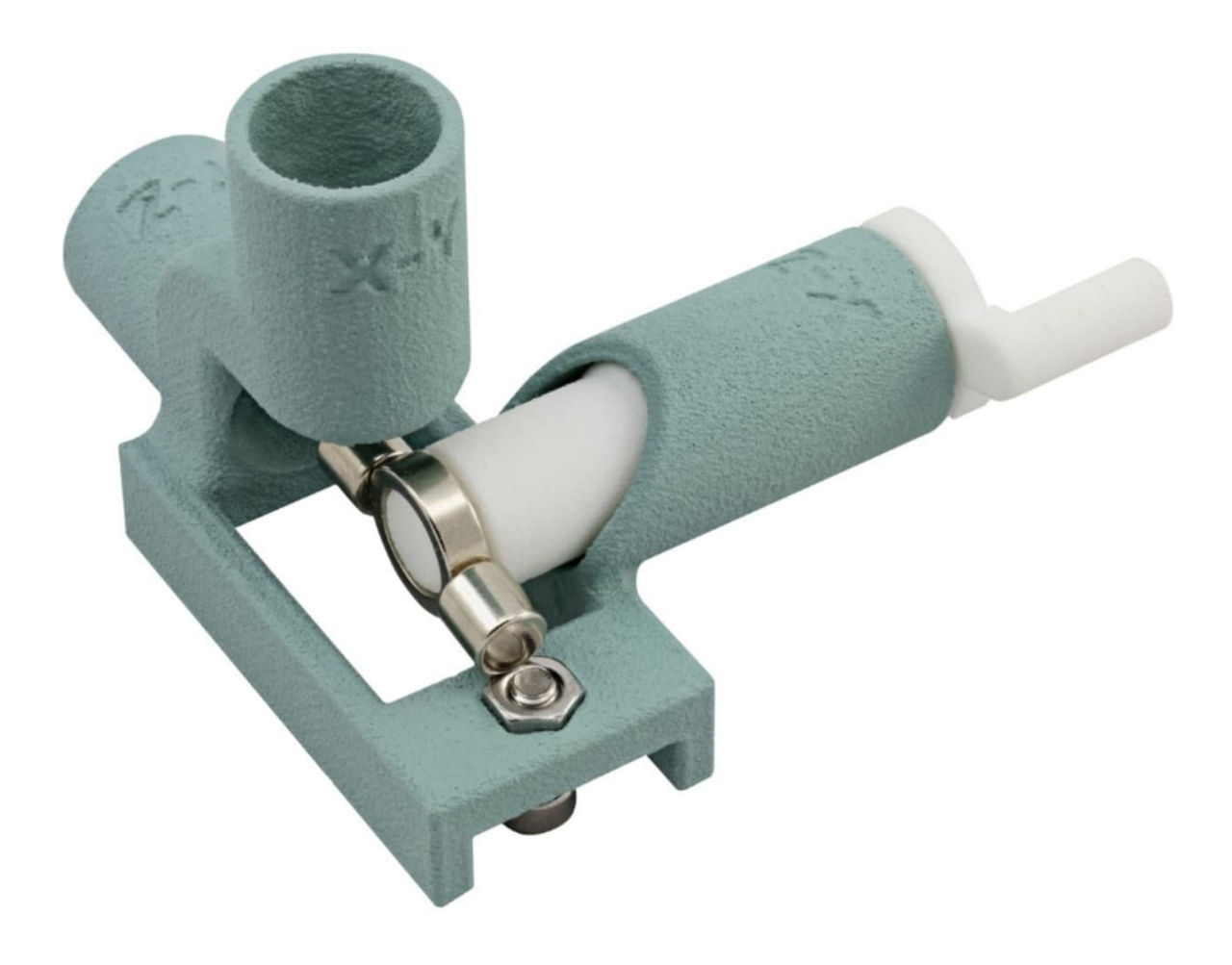

Infineon's out-of-shaft adapter, mountable on 3D magnetic sensor 2GO kits & Shield2Go, allows evaluation of rotational movements in out-of-shaft setups. Combined with XENSIV™ 3D magnetic sensors, test x-z, y-z & x-y axis measurements. Ideal for limited space applications. Discover the flexibility: Easy mounting, 1st angle measurement, 3 configurations. Includes magnetic rotation bar with ring magnet.

Features

  • Easy mounting on all 3D Magnetic Sensor2GO kits and Shield2Go
  • First angle measurement in out of shaft configuration
  • Three different out of shaft configurations possible
  • Magnetic rotation bar with ring magnet included
