MOS7_GENERIC_POW_BOARD

OptiMOS™ 7 40 V SSO8 MOSFET, MOTIX™ MCU (SoC) TLE987x
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

MOS7_GENERIC_POW_BOARD
MOS7_GENERIC_POW_BOARD
ea.
User Manual

Product details

  • Board Type
    Reference Board
  • Family
    SSO8 with OptiMOS™ 7, MOTIX™ 32-bit motor control SoC
  • Input Type
    DC
  • Pout max
    400 W
  • Qualification
    Automotive (some passive components do not have AECQ qualification. Details in the user manual)
  • Supply Voltage
    7 V to 18 V
  • Target Application
    Automotive fan and pump, 400 W BLDC motor for 12V application, radiator fan, water pump
  • Topology
    3-phase full-bridge
Recommended
OPN
MOS7GENERICPOWBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

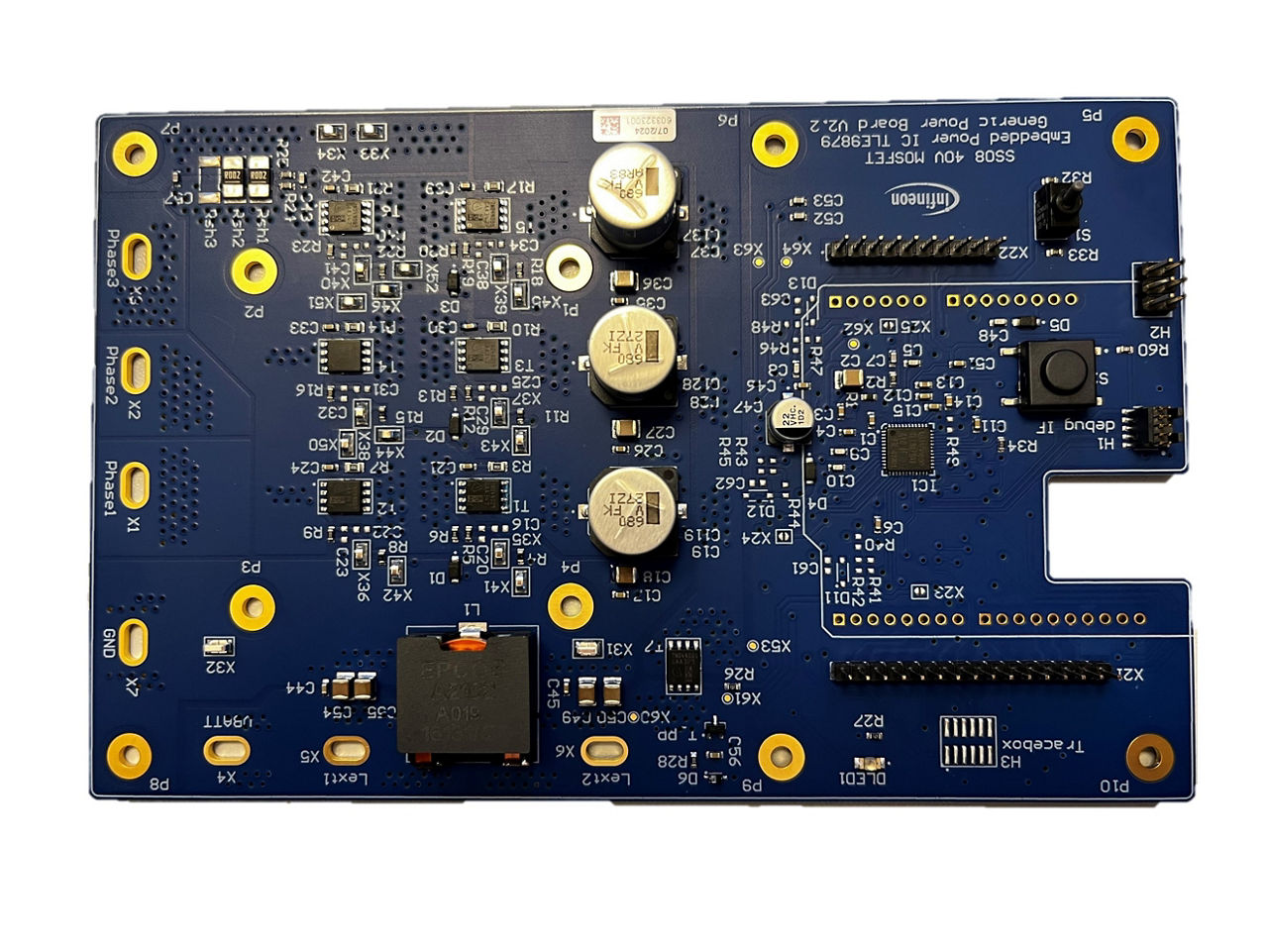

The Generic Power evaluation board is a complete solution for BLDC motor control applications. Powered by MOTIX™ TLE9879QXA40 32-bit motor control (SoC), featuring OptiMOS™ 7 MOSFETs, it is capable to drive loads up to 400W supplied by a battery voltage of 12 V. This user manual contains a description of the design, schematics and measurement reports.

Features

  • Drive loads up to 400 W
  • Thermally optimized
  • EMC optimized

Benefits

  • Automotive engine cooling fan application
  • MOSFET controlled by MOSFET driver integrated in SoC
  • Drive loads up to 400 W at a battery voltage of 12 V
  • Design description, schematics and measurements
  • EMC testing according to CISPR25 standard
