MID-RANGE SBC BOARD
MID-RANGE SBC BOARD
ea.
User Manual

Product details

  • Applications
    Automotive
  • Board Type
    Evaluation Board
  • Family
    System Basis Chip (SBC), OPTIREG™ SBC, Motor Driver
  • Input Type
    DC
  • Output Voltage
    1.9 V
  • Qualification
    Automotive
  • Sub Application
    Control Panels, Low-end ADAS, Steering Lock, Sunroofs, Power Lift Gates, Seat Modules, Gearstick, Car Lighting ECUs, HVAC, Body Control & Gateways
  • Supply Voltage
    12 V
  • Target Application
    Motor Control & Drives, Motorcycles, E-Bikes & Small E-Vehicles
  • Topology
    LIN, CAN-FD, SBC with 3 output voltage regulators
Recommended
OPN
MIDRANGESBCBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

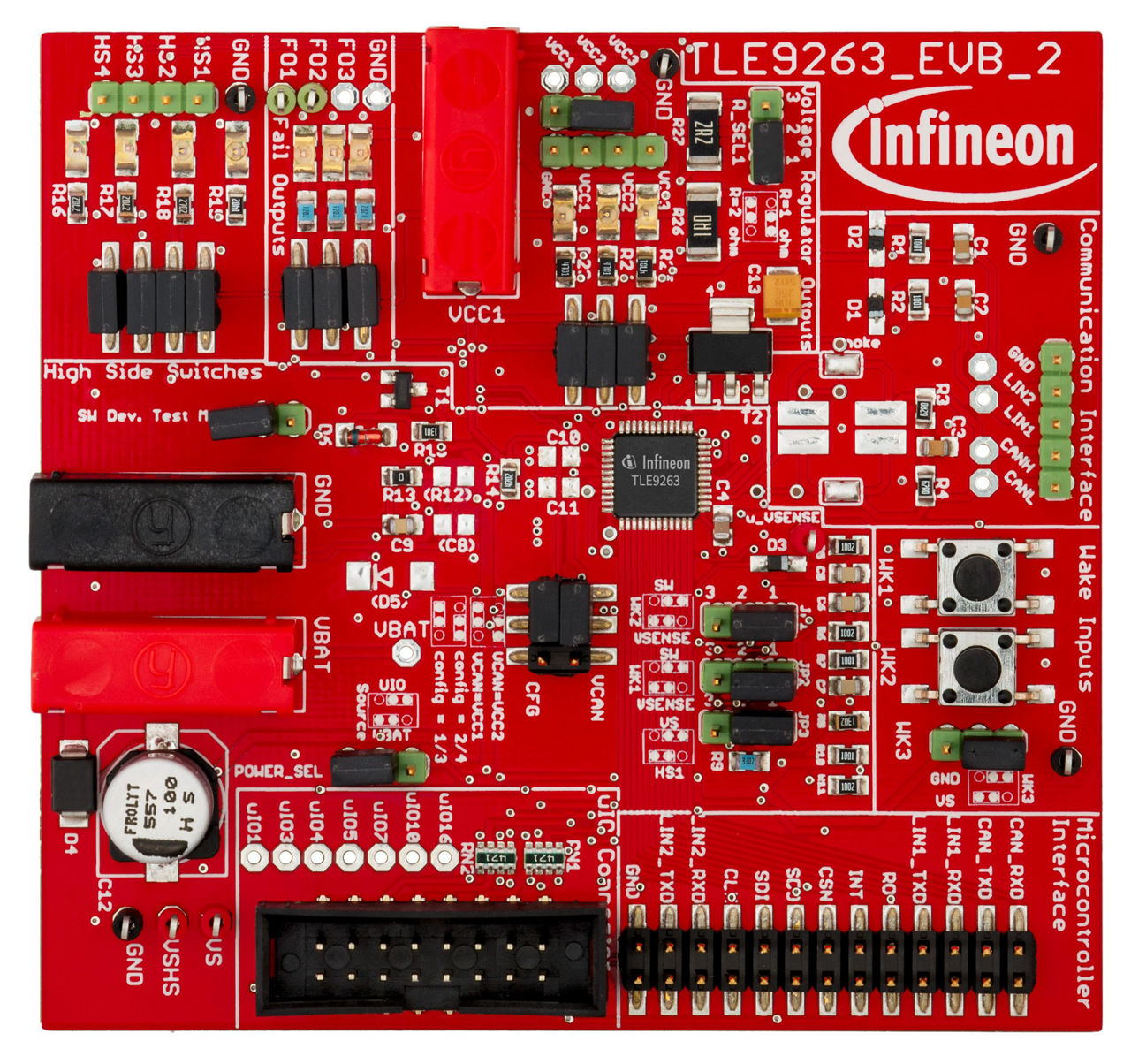

This demo board enables device evaluation of the Mid-Range SBC product family and accelerates the design-in phase. It is populated with the representative product families’ superset component TLE9263-3BQX . The evaluation board can be connected to the “ UIO STICK ” (Power Easy Kit Lite) and controlled via USB using a powerful and intuitive Graphical User Interface (GUI) installed on your computer.
