MA070E17

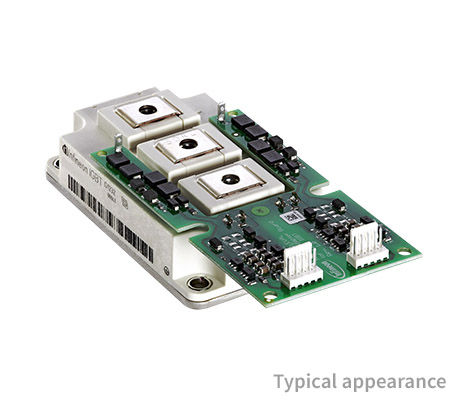

Evaluation Adapter Board for 1700 V 62mm Half Bridge IGBT Modules

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

MA070E17
MA070E17

Product details

  • Applications
    Drives, Solar, Traction, Wind
  • Board Type
    Evaluation Board
  • Family
    Gate Driver, IGBT Modules
  • Input Type
    DC
  • Product Name
    MA070E17
  • Sub Application
    Drives, Wind, Traction, Solar, Renewable Energy
  • Target Application
    Wind Energy Systems, Solar Energy Systems, Motor Control & Drives, Industrial
  • Topology
    Half Bridge
OPN
MA070E17EVALNOSA1
Product Status on request
Infineon Package E-EUPEC
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package E-EUPEC
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Evaluation Adapter board with booster stage offers reliable connection between driver and 1700 V 62mm Half Bridge IGBT modules . It operates together with 2ED300E17-SFO evaluation boards and 2ED300C17-S / 2ED300C17-ST IGBT driver board. The IGBT module is to be ordered separately.

Features

  • Plug & play solution
  • Mech. adaption to module package

Applications
