LITE LDO SBC BOARD

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

LITE LDO SBC BOARD
LITE LDO SBC BOARD
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    System Basis Chip (SBC), OPTIREG™ SBC
  • Input Type
    DC
  • Output Voltage
    4.9 V to 5.1 V
  • Qualification
    Automotive
  • Sub Application
    Steering column and steering lock, Fuel pump, Smart Power Distribution modules, Light Control Unit (LCU) for front, and rear, Gear shifter and selectors, Heating, ventilation and air conditioning (HVAC), Closure (power lift gate, sliding door, etc.), Seat belt pretension, Seat control module
  • Supply Voltage
    5.5 V to 28 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
LITELDOSBCBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

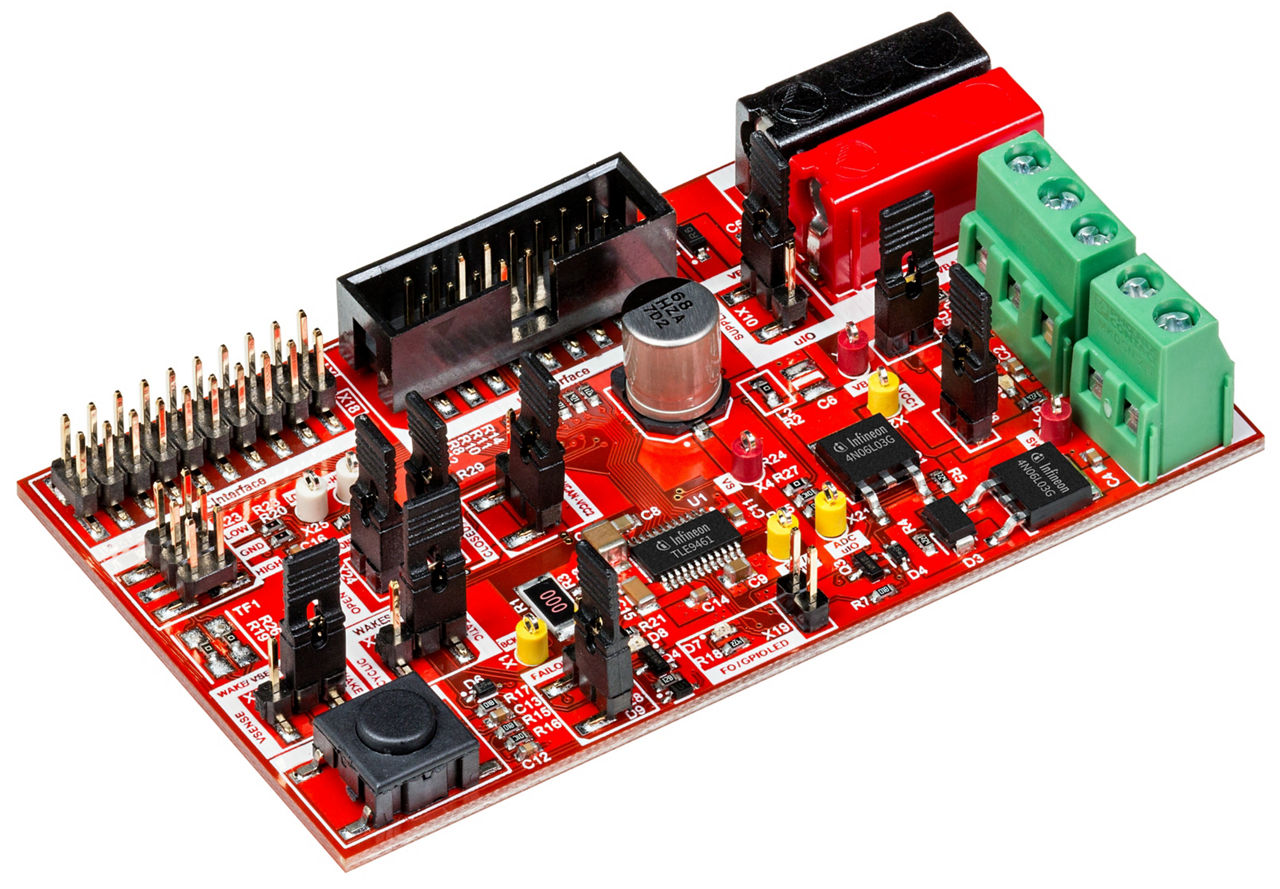

This demo board enables device evaluation of the Lite SBC product family and accelerates the design-in phase. It is populated with the representative product families’ superset component TLE9461-3ES. The evaluation board can be connected to the “UIO STICK” (Power Easy Kit Lite) and controlled via USB using a powerful and intuitive Graphical User Interface (GUI) installed on your computer.
