Active and preferred
RoHS Compliant

KIT_XMC_LED_DALI_20_RGB

Order Nr : KITXMCLEDDALI20RGBTOBO1
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_XMC_LED_DALI_20_RGB
KIT_XMC_LED_DALI_20_RGB
ea.

Product details

  • Applications
    Lighting ; Building Automation , Home appliance
  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Core
    ARM Cortex-M0
  • External memory
    None
  • Family
    XMC1300 Industrial Microcontroller
  • Features
    DALI, DMX interface
  • GPIOs/Shield Compatibility
    Arduino Uno
  • Hardware Compatibility
    KIT_XMC11_BOOT_001
  • Programmer/Debugger
    External XMC Link Debugger
  • Sensors
    None
  • Software Support
    DAVE
  • Supply Voltage
    12 V to 48 V
  • Target Application
    Industrial
  • Topology
    Buck
  • WiFi Standard
    N/A
Recommended
OPN
KITXMCLEDDALI20RGBTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

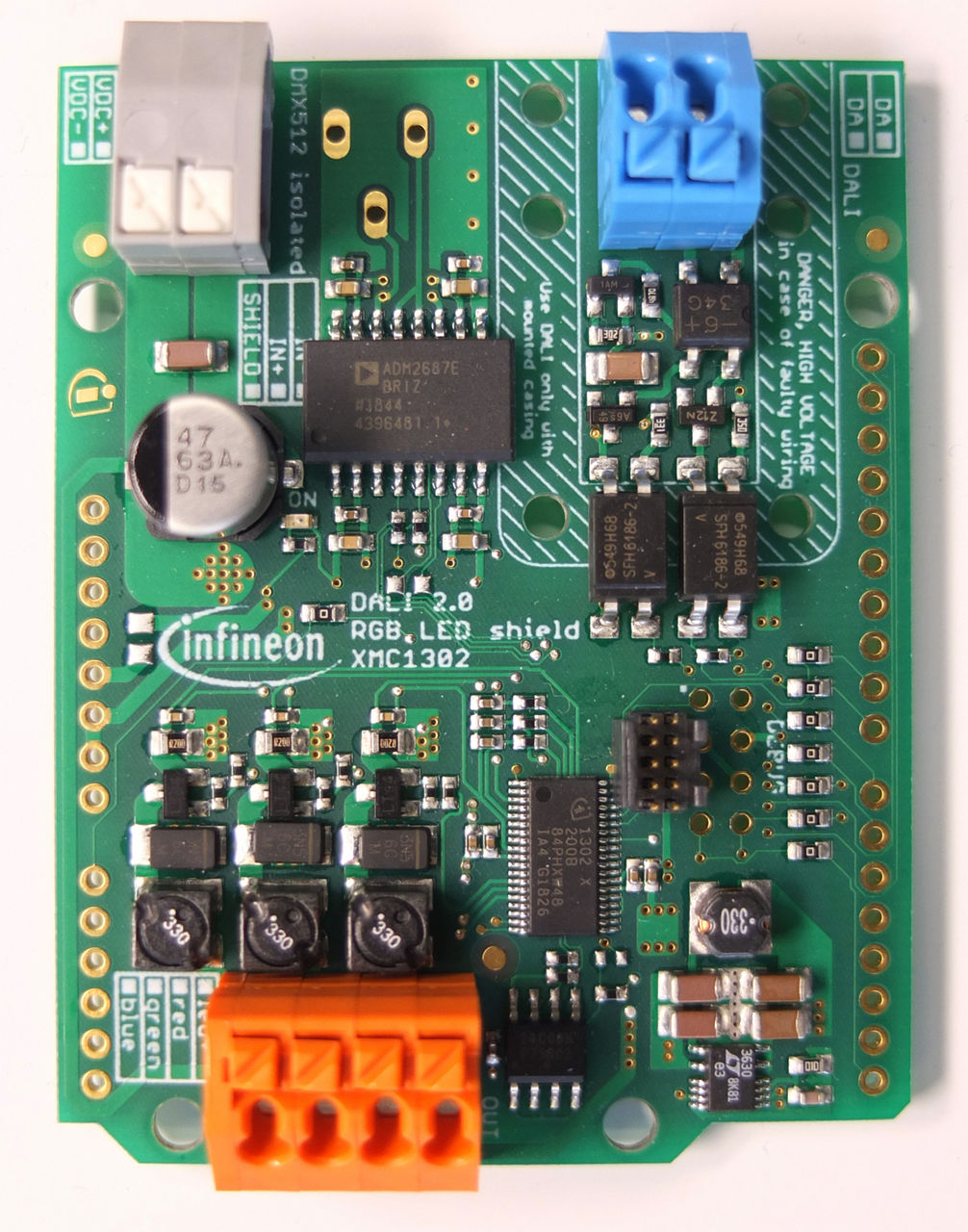

The RGB LED lighting shield from Infineon technologies is one of the first intelligent evaluation boards compatible with Arduino as well as Infineon’s XMC1100 BOOT KIT. It is designed to be easily configurable and combinable for different LED light engines and lamps, for fast prototyping and in-expensive evaluation of LED lighting applications.

Features

  • Compatible w/ Arduino Uno R3
  • Compatible w/ XMC1100 Boot Kit
  • Wide DC input voltage range
  • Simple I²C interface
  • DALI and DMX interface

Benefits

  • 3 channels RGB LED lighting
  • Flicker-free light
  • High-speed pulse density modulation
  • Small size
  • High-frequency current control
  • Parameterization with external debugger
  • Dynamic dimming & color control

Applications
