KIT_PSC3M6_CC2
Active and preferred
RoHS Compliant

KIT_PSC3M6_CC2

PSOC™ Control C3M6 Motor Drive Control Card

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_PSC3M6_CC2
KIT_PSC3M6_CC2


Product details

  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Connectivity
    N/A
  • Core
    ARM Cortex M33
  • Device
    PSC3M6GES3AHQ1
  • External memory
    None
  • Family
    PSOC Control C3
  • GPIOs/Shield Compatibility
    MADK
  • Hardware Compatibility
    MADK Power boards
  • Input Type
    DC
  • Programmer/Debugger
    SEGGER J-Link Lite
  • Qualification
    Industrial
  • Sensors
    Hall sensors, Encoders
  • Software Ecosystem
    ModusToolbox™
  • Software Support
    ModusToolbox™
  • Target Application
    Motor Control & Drives
  • Topology
    N/A
  • WiFi Standard
    N/A

Recommended
OPN
KITPSC3M6CC2TOBO1
Product Status active and preferred
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The PSOC™ Control C3M6 CC2 motor control kit is an evaluation board designed to help engineers develop PSOC™ Control C3 based motor control solutions. A suitable power stage can be quickly added using MADK (M1/M3/M5) boards or the 100-pin HD connector to drive a wide range of motors. It features an isolated onboard debugger and supports multiple device package footprints. CC2 is a subset of the MC1 kit without the power board.

Features

  • PSOC™ Control C3M6 (PSC3M6GES3AHQ1)
  • Supports MADK power boards (M1, M3, M5)
  • Supports 100-pin HD connector interface
  • On-board debugger (SEGGER J-Link LITE)
  • 2 User LEDs, 1 Debug LED, and 1 COM LED
  • Selectable 3.3 V or 5 V analog signals
  • 2 User switches and 2 potentiometers
  • Supports multiple package footprints
  • 4x Hall sensor and encoder interfaces
  • USB Full-Speed device interface

Benefits

  • Accelerate motor control development
  • Supports different motor power ratings
  • Sensored or sensorless FOC applications
  • Evaluate and control up to four motors
  • Reduce time with a ready-to-use platform
  • Speed up development with code examples

Bill of Material

Documents

Design resources

Diagrams

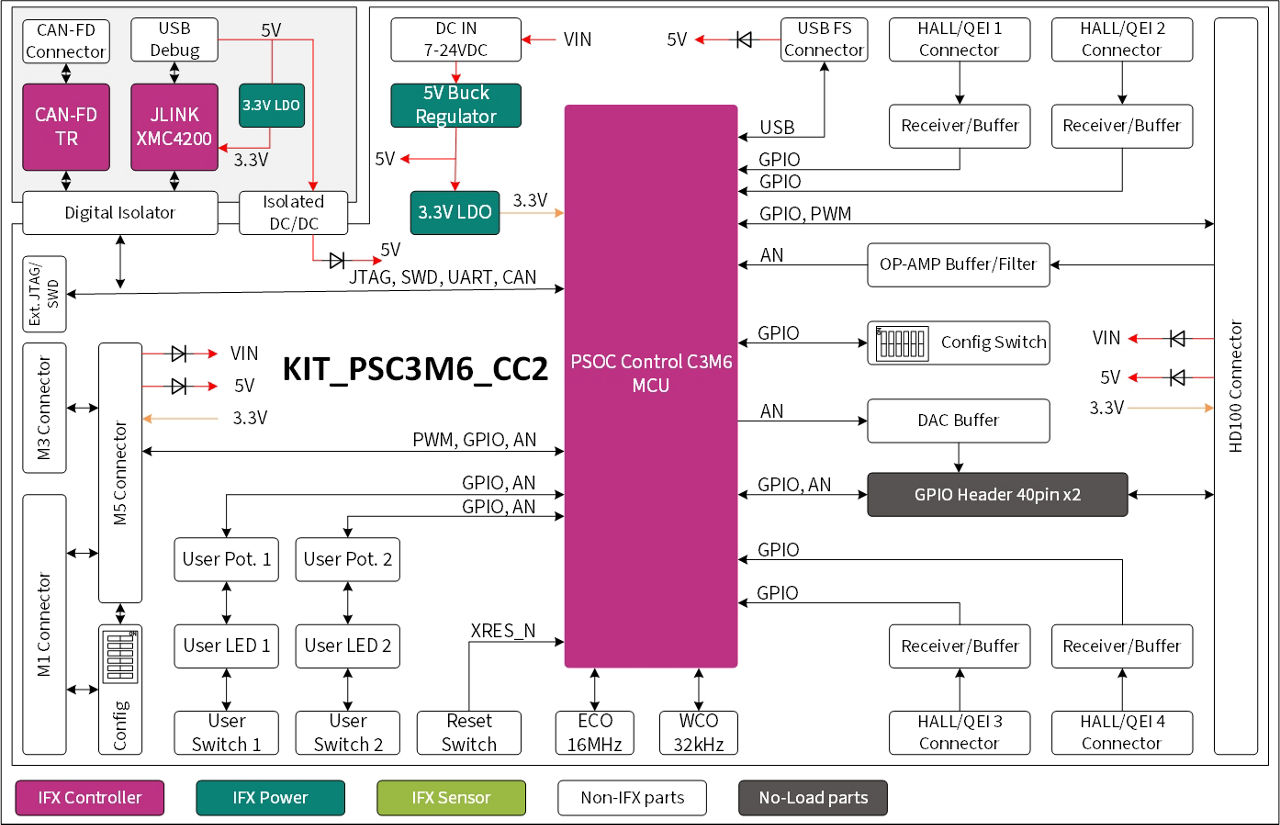

KIT_PSC3M6_CC2 Block Diagram
KIT_PSC3M6_CC2 Block Diagram
KIT_PSC3M6_CC2 Block Diagram KIT_PSC3M6_CC2 Block Diagram KIT_PSC3M6_CC2 Block Diagram
KIT_PSC3M6-CC2 - Main Picture KIT_PSC3M6-CC2 - Main Picture KIT_PSC3M6-CC2 - Main Picture

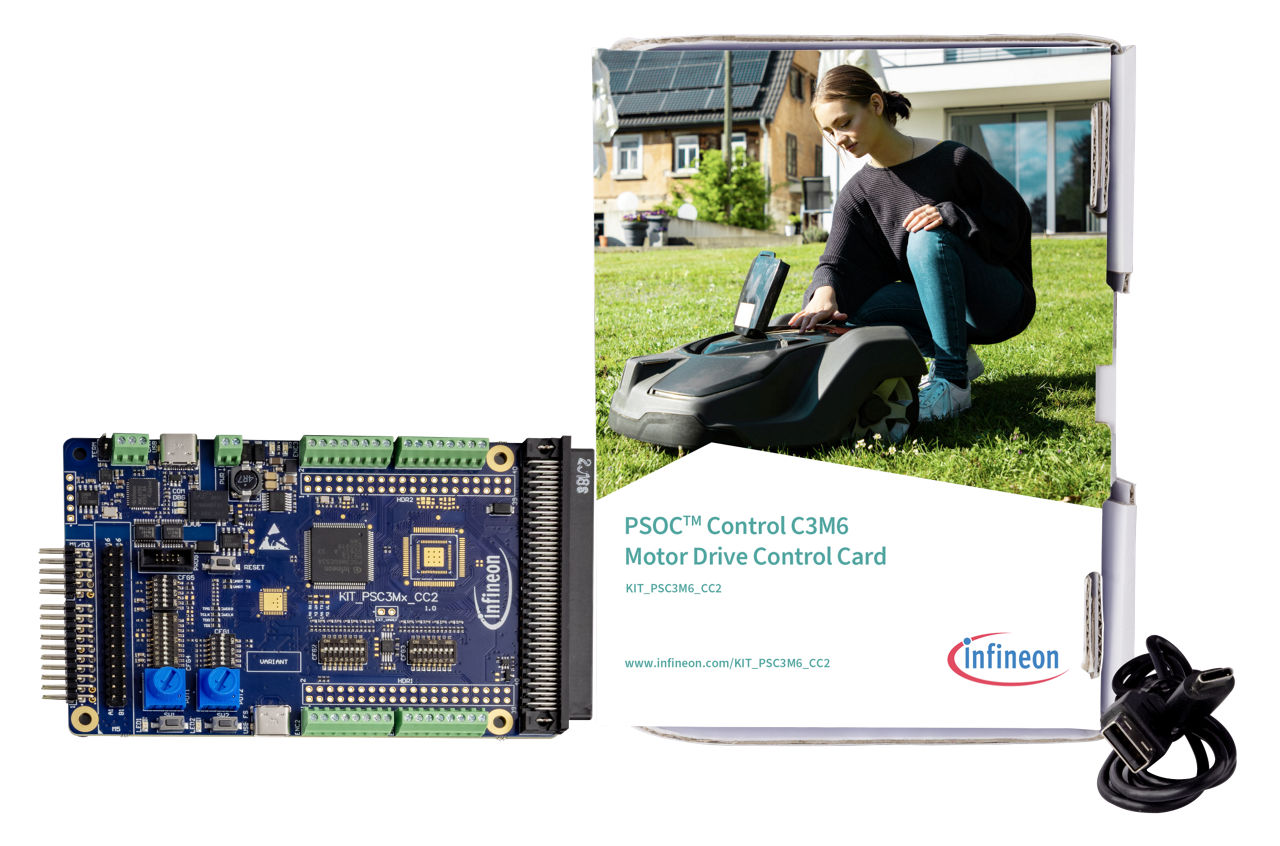

KIT_PSC3M6-CC2 - Kit contents KIT_PSC3M6-CC2 - Kit contents KIT_PSC3M6-CC2 - Kit contents

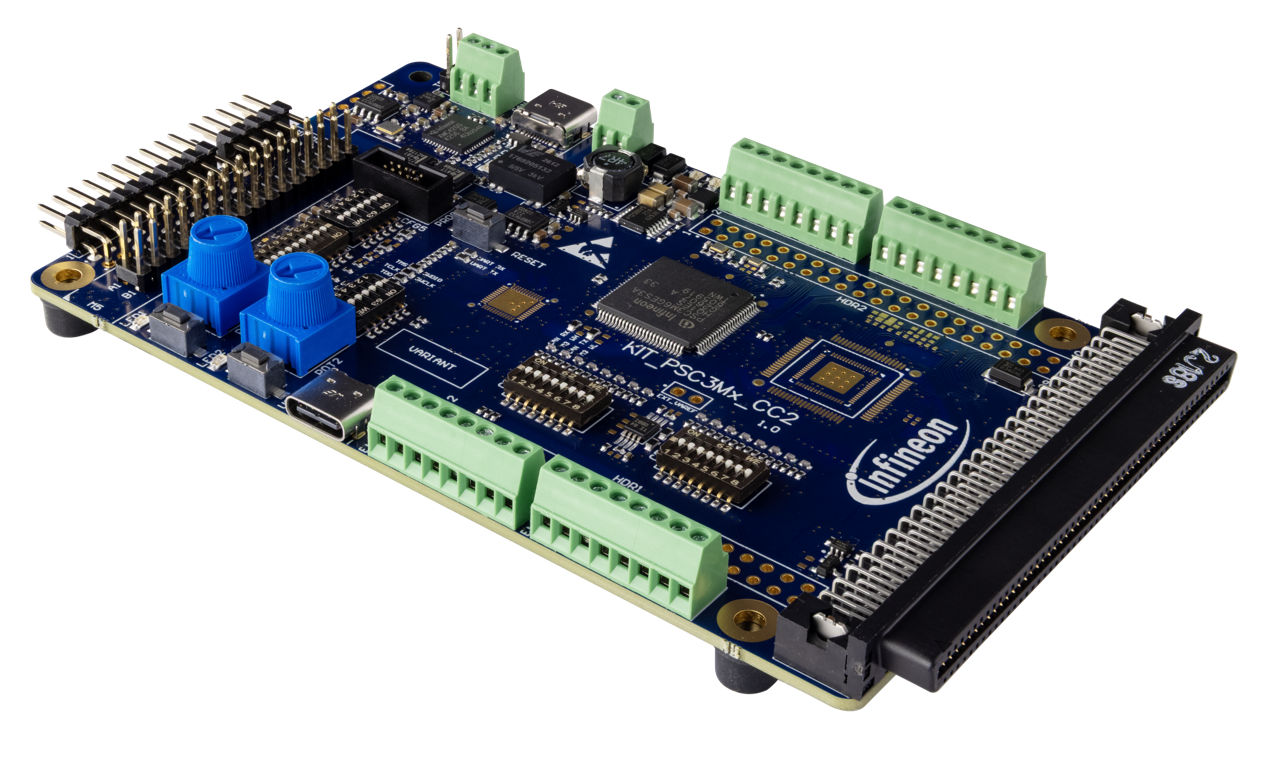

KIT_PSC3M6-CC2 - Devkit KIT_PSC3M6-CC2 - Devkit KIT_PSC3M6-CC2 - Devkit
×
