KIT_LGMB_BOM504

Kit mother board for low voltage drives scalable power demoboard
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_LGMB_BOM504
KIT_LGMB_BOM504
User Manual

Product details

  • Board Type
    Demo Board
  • Configuration
    1EDN8550B
  • Description
    Kit mother board for low voltage drives scalable power demoboard.
  • Family
    Gate Driver
  • Input Type
    DC
  • Output Voltage min
    15 V
  • Product Name
    KIT_LGMB_BOM504
  • Qualification
    Industrial
  • Target Application
    Motor Control & Drives, E-Mobility, Small E-Vehicles, E-Bikes & amp
  • Topology
    Buck, Boost, Full Bridge, B6 Bridge, Half Bridge, DC-DC converter
Recommended
OPN
KITLGMBBOM504TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

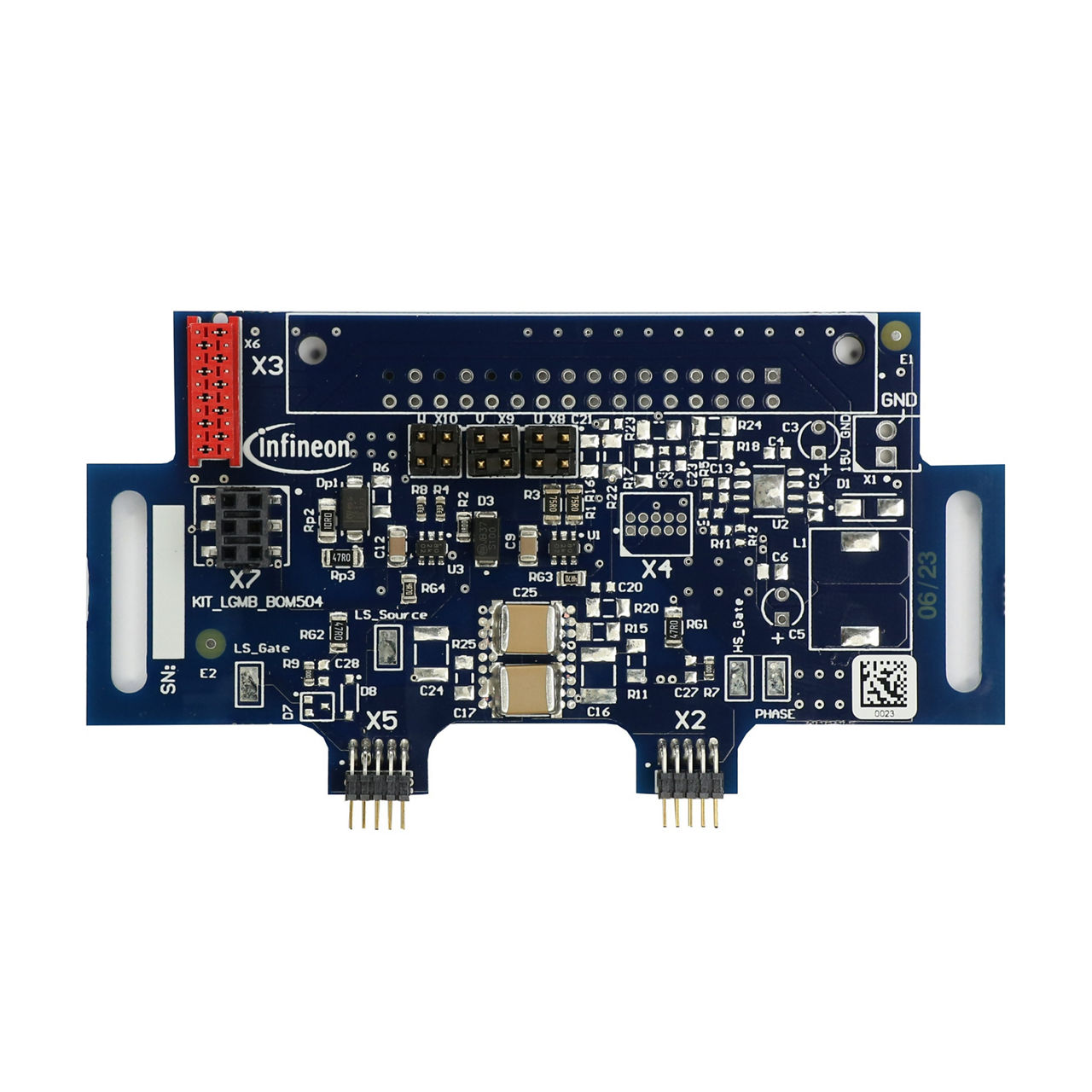

The kit mother boards serve as supporting boards for the LVD scalable power demoboard platform . They provide the system with the gate drivers for driving the MOSFETs of the power boards. The mother board connects to the control through the master mother board and does not connect to an individual control board.

Features

  • Gate resistors on FR4 for ease of rework
  • Additional ceramic capacitor connected to the DC bus
  • Optional branch out connection for paralleling of MOSFETs
