Evaluation kit for EiceDRIVER™ 2EDF7275F dual-channel functional isolated gate driver IC
Additional Technical Information
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DRIVER_2EDF7275F
KIT_DRIVER_2EDF7275F
ea.
Additional Technical Information

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    90 x 35 x 30mm
  • Family
    Gate Driver
  • Input Type
    DC
  • Interfaces
    no
  • Language
    SPICE
  • Product Category
    Evaluation Boards
  • Product Name
    KIT_DRIVER_2EDF7275F
  • Qualification
    Consumer
  • Sub Application
    Adapter
  • Target Application
    Industrial, Power Supplies, SMPS
  • Topology
    Dual low-side switches, Dual high-side switches, Half Bridge
Recommended
OPN
KITDRIVER2EDF7275FTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

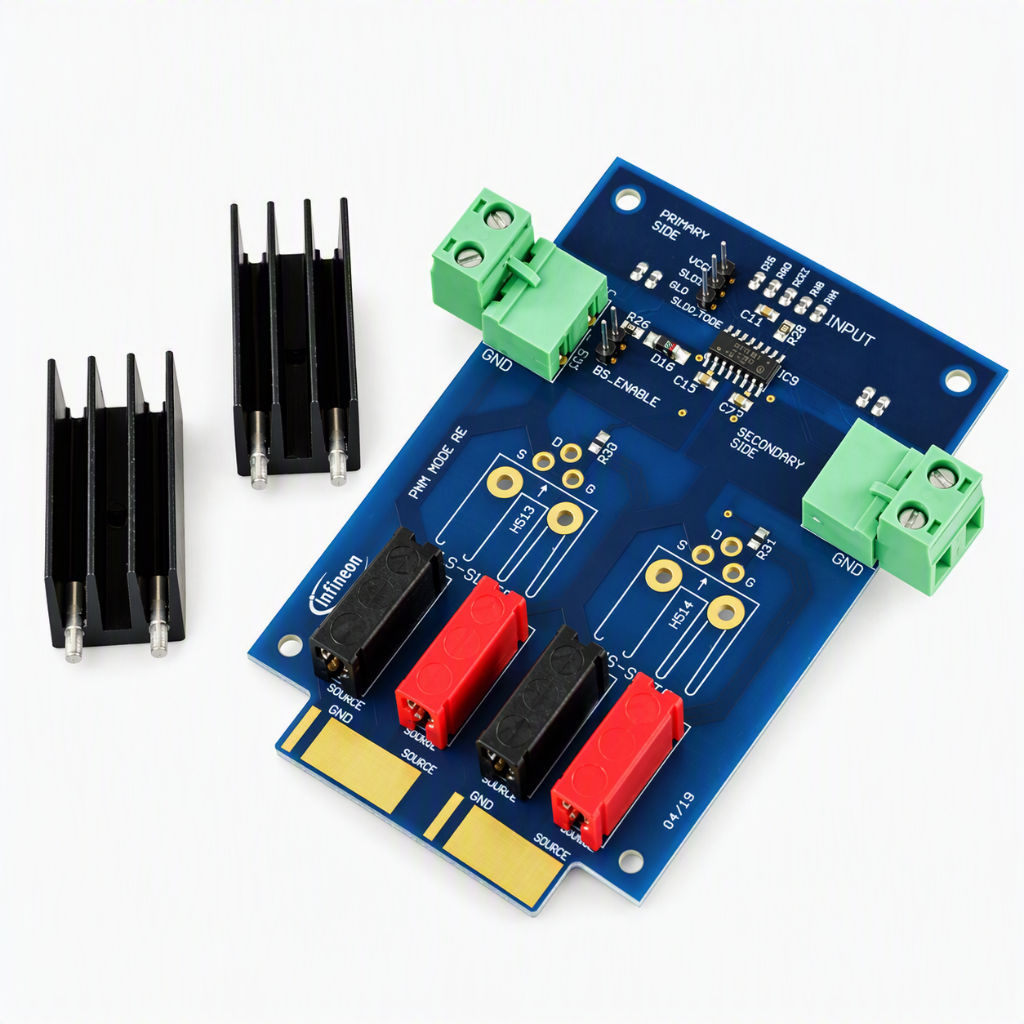

Infineon's EiceDRIVER™ 2EDF7275F kit tests the dual-channel driver IC, with integrated circuitry for exploring 2EDF7275F's features and its impact on load signals. It can feed two MOSFETs, recommending CoolMOS™ or OptiMOS™. An external function generator and DC power supply are required. Additional features include MOSFET testing, banana connector power-up, and potential daughter card connectivity.

Features

  • Complete and easy-to-use solution platform integrating Infineon’s 2EDF7275F EiceDRIVER™ gate driver IC and CoolMOS™ or OptiMOS™ power MOSFETs
  • Provides the possibility to evaluate the influence of the gate load (Rg or Cgs) on the driving behavior of the 2EDF7275F
  • Provides the possibility to easily replace and test different power MOSFETs in TO-220 package

Benefits

  • Familiarize with the Infineon’s 2EDF7275F EiceDRIVER™ features
  • Understanding the influence of the gate load on the driving behavior
