KIT_DRIVER_1EDN7512G

Evaluation kit for single-channel low-side non-isolated EiceDRIVER™ gate driver IC 1EDN7512G
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DRIVER_1EDN7512G
KIT_DRIVER_1EDN7512G
ea.

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    90 x 35 x 30mm
  • Family
    Gate Driver
  • Frequency
    100 kHz to 200 kHz
  • Input Type
    DC
  • Interfaces
    no
  • Mounting
    THD
  • Product Name
    KIT_DRIVER_1EDN7512G
  • Qualification
    Consumer
  • Sub Application
    Adapter
  • Supply Voltage
    10 V to 20 V
  • Target Application
    SMPS, Power Supplies, Industrial
  • Topology
    Low-side switch
Recommended
OPN
KITDRIVER1EDN7512GTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

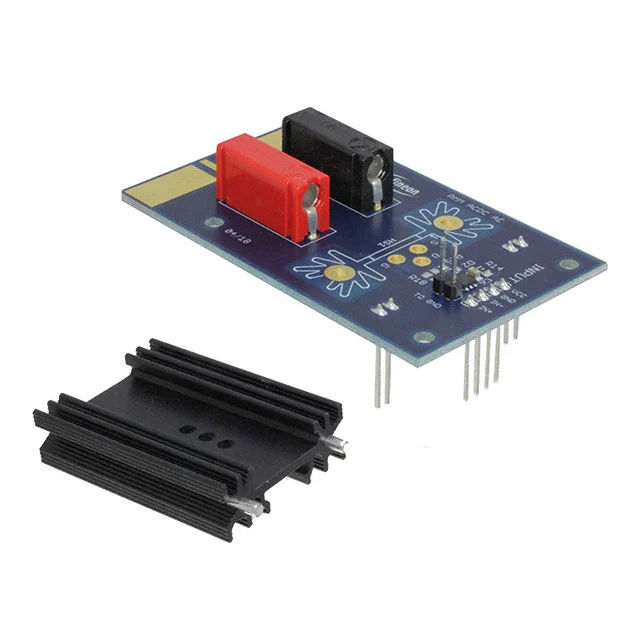

The evaluation kit provides a test platform for Infineon's EiceDRIVER™ 1EDN7512G gate driver IC in WSON 6pin package. It is designed to be placed on a breadboard for connection of power supply and signals using hook-up wires. Kit enables testing of gate drivers in power electronics, allowing users to evaluate the gate driver IC with different MOSFET switches. Function generators and microcontrollers, such as Infineon's XMC™ microcontroller family

Features

  • Single-channel low-side non-isolated gate driver IC
  • Peak current: 5A
  • Package: Through hole device (THD)
  • Optimized for CoolMOS™ and OptiMOS™

Benefits

  • Cost-effective test platform for the 1EDN7512G gate driver IC
  • Easy to use design
  • Combination test platform for gate driver IC and MOSFET

Applications
