KIT_ACT_BRD_60R040S7

Line rectifier module featuring 600V CoolMOS™ S7 with integrated control and driving scheme
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_ACT_BRD_60R040S7
KIT_ACT_BRD_60R040S7
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    35mm×2.5mm×30.5mm
  • Frequency
    0.045 kHz to 0.065 kHz
  • Input Type
    AC
  • Pout max
    2400 W
  • Product Category
    CoolMOS™, Gate Driver, SR Controller
  • Product Name
    KIT_ACT_BRD_60R040S7
  • Qualification
    Standard
  • Supply Voltage
    85 V to 265 V
  • Target Application
    Power Supplies, Telecom, SMPS
  • Topology
    PFC, non-Isolated, Continuous Conduction Mode (CCM), Boost
Recommended
OPN
KITACTBRD60R040S7TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

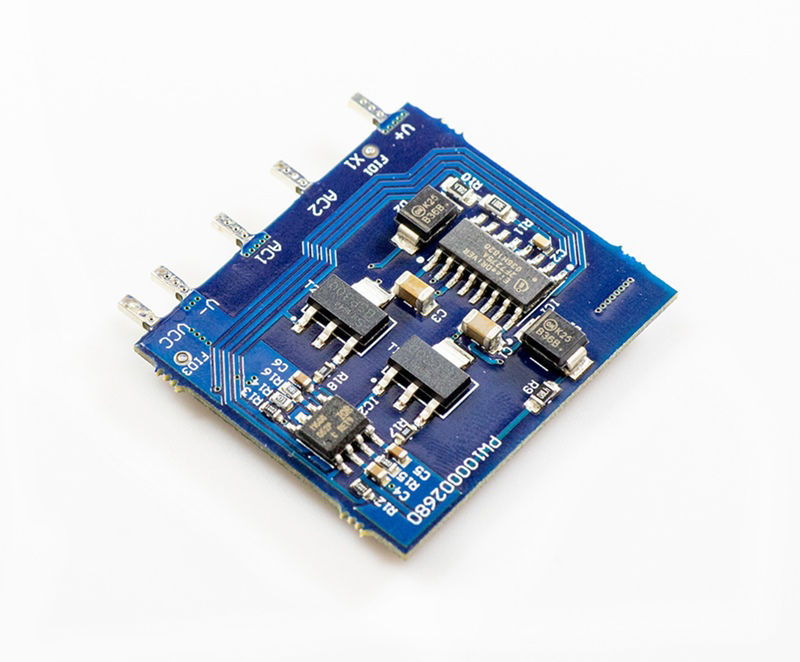

The KIT_ACT_BRD_60R040S7 replaces the standard diode bridge rectifier with an active full-bridge using CoolMOS™ S7 40mΩ RDS(on) in CCM boost PFCs. The board, pre-equipped with control and driving circuitries, requires five connections and links the logic ground to DC-.

Features

  • Active-bridge daughter card for line rectification
  • Integrated control and driving scheme
  • Based on 40mΩ CoolMOS™ S7

Benefits

  • Efficiency increases compared to standard bridge solution
  • Extremely compact design (almost the same size as that of the standard bridge)
  • Lower temperature rises compared to standard bridge solution
  • No need for heatsink connection

Applications
