KIT_A2G_TC375_5V_TRB

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_A2G_TC375_5V_TRB
KIT_A2G_TC375_5V_TRB

Product details

  • Board Type
    Evaluation Board
  • Family
    Microcontroller
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

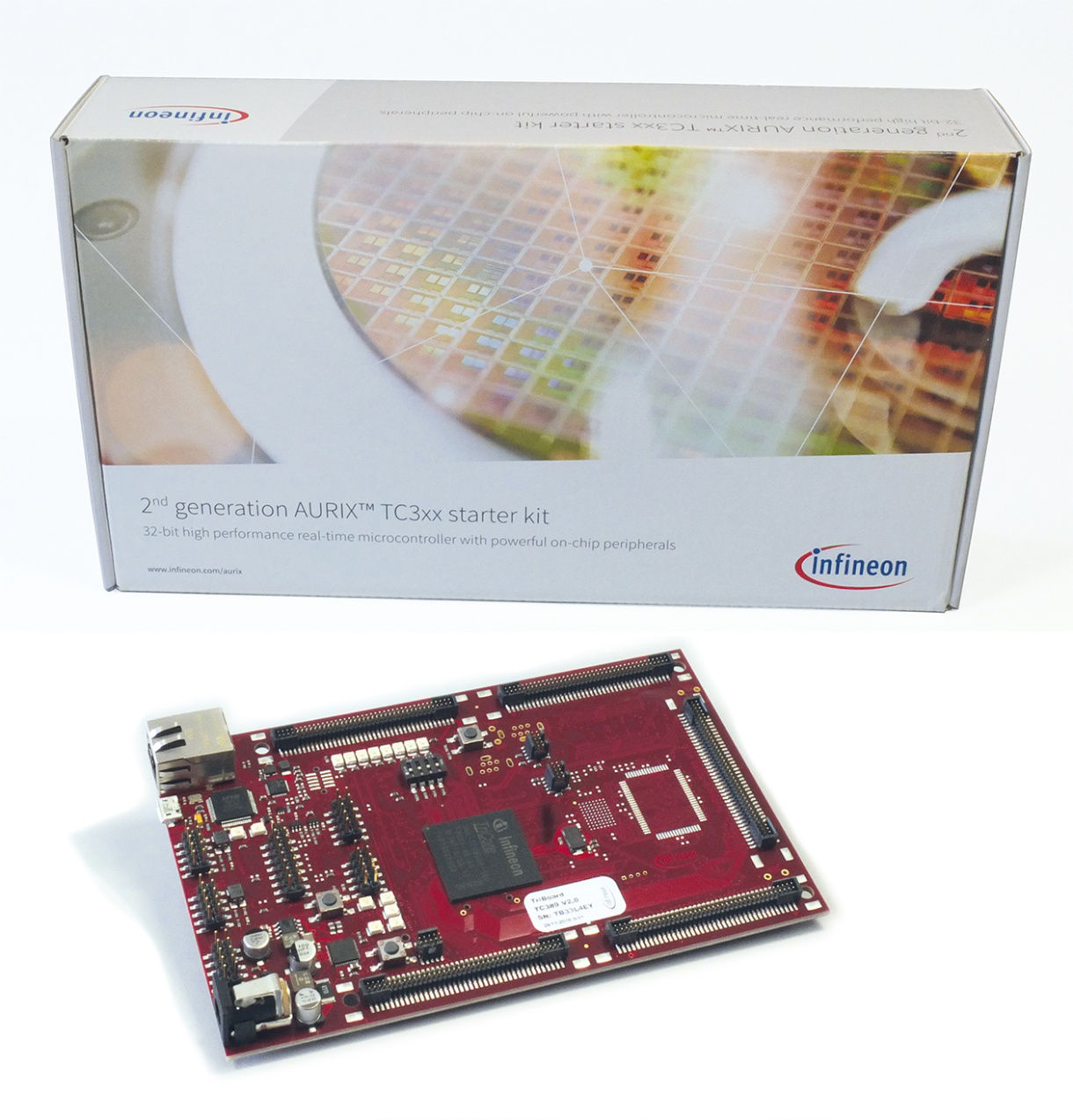

Order Nr.: KITA2GTC3755VTRBTOBO1Price: 649,- EURThe 5V standard AURIX™ evaluation board has a TC375TP mounted directly on the board and enables customers to quickly start developing, evaluating and testing their software.A downloadable User Manual helps with the installation, use and configuration of the board and includes the schematics and the layout. ( see Documents section )

Features

  • Infineon’s  AURIX™ TC375 in LQFP-176 Package
  • FlexRay™ Transceivers
  • High Speed CAN Transceivers (CAN-FD capable)
  • USB to UART bridge
  • Ethernet PHY
  • Serial Eeprom
  • LIN Transceiver
  • Crystal 20MHz (default) or External Clock
  • USB miniWiggler JDS for easy debugging
  • 8 Low Power Status LEDs
  • 8-DIP switches for configuration
  • access to all pins of controller
  • 100mm x 160mm (EURO-Board)
  • :
  • Infineon’s Multi Voltage Safety Micro Processor Supply TLF35584QV
  • Three LEDs to validate power supply (5Volt / 3,3 Volt / 1,25 Volt)
  • LED indicating safe state signal 2 from TLF35584
  • LED indicating /HDRST (ESR0) active state
  • LED indicating activ miniWiggler JDS
  • LED switched via DAS software
  • 2 x Infineon’s FlexRay™ Transceiver TLE9221SX
  • 2 x Infineon’s High Speed CAN-Transceiver TLE9251VSJ
  • Infineon’s LIN-Transceiver TLE 7259-3GE
  • USB to UART bridge FT2232HL (FTDI)
  • Single-Chip/Port 10/100M Ethernet PHYCEIVER with Auto MDX RTL8201FI-VC-CG (Realtek)
  • 8 general purpose LEDs
  • 2K I 2C Serial Eeprom with EUI-48™ 2) Node Identity (MICROCHIP)
  • Reset switch
  • Enable switch
  • Generic switch
  • 4-pin Dip switch
