EVALSF3R-ICE3BR4765JG
EVALSF3R-ICE3BR4765JG
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    CoolSET™
OPN
SF3RICE3BR4765JGTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

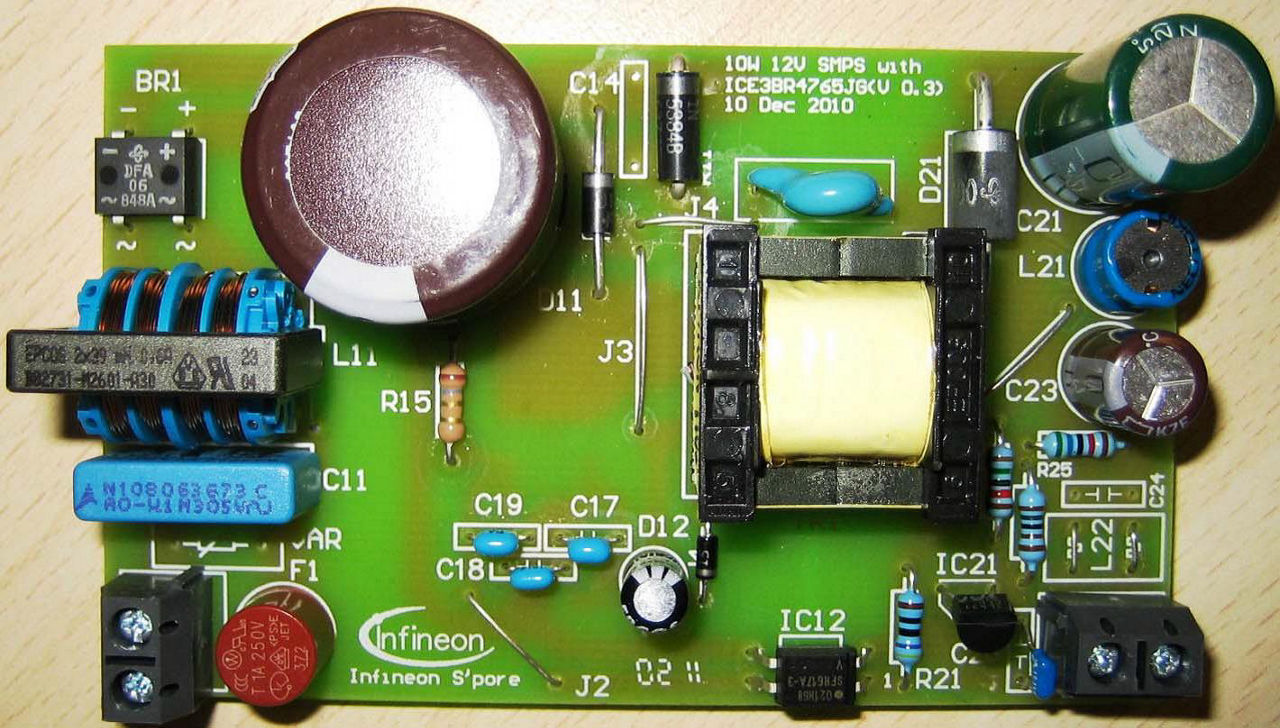

The universal 12V 10W power supply uses ICE3BR4765JG in a flyback converter, operating at 65kHz in Discontinuous Conduction Mode. It includes Active Burst Mode, auto restart protection for serious faults, and BiCMOS design. It also features built-in soft start time, frequency jitter, and external auto-restart. It excels in low standby power and EMI performance.

Features

  • 650V avalanche rugged CoolMOS™ with built-in Startup Cell
  • Active Burst Mode for lowest Standby Power
  • Fast load jump response in Active Burst Mode
  • 65 kHz internally fixed switching frequency
  • Auto Restart Protection Mode for Overload, Open Loop, Vcc Undervoltage, Overtemperature & Vcc
  • Overvoltage
  • Built-in Soft Start
  • Built-in blanking window with extendable blanking time for short duration high current
  • External auto-restart enable pin
  • Max Duty Cycle 75%
  • Overall tolerance of Current Limiting < ±5%
  • Internal PWM Leading Edge Blanking
  • BiCMOS technology provides wide VCC range
  • Built-in Frequency jitter feature and soft driving for low EMI
