EVALQRC-ICE2QR4765G
EVALQRC-ICE2QR4765G
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    CoolSET™
OPN
EVALQRCICE2QR4765GTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

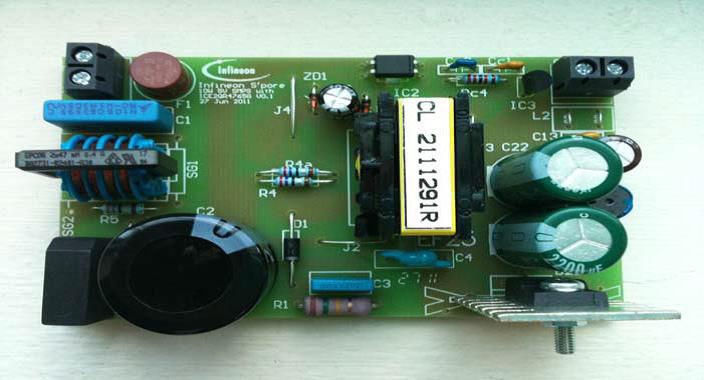

The ICE2QR4765G evaluation board is a 10W quasi-resonant flyback converter with integrated CoolMOS™, simplifying PCB design, enhancing efficiency, and reducing diode recovery issues. It improves system efficiency across all loads using Infineon’s digital frequency reduction technology. The board includes adjustable protections and its features like Auto Restart and Latch-off Modes optimize performance, offering a cost-effective solution.

Features

  • 650V avalanche rugged CoolMOS™ with built in depletion startup cell
  • Quasi-resonant operation
  • Digital frequency reduction with decreasing load
  • Cycle-by-cycle peak current limitation with foldback point correction
  • Built-in digital soft-start
  • Direct current sensing with internal Leading Edge Blanking Time
  • VCC under voltage protection: IC stop operation, recover with softstart
  • VCC over voltage protection: IC stop operation, recover with softstart
  • Openloop/Overload protection: Auto Restart
  • Output overvoltage protection: Latch-off with adjustable threshold
  • Short-winding protection: Latch-off
  • Over temperature protection: Autorestart
