EVAL_XDPS2221E_120W_3C

NEW

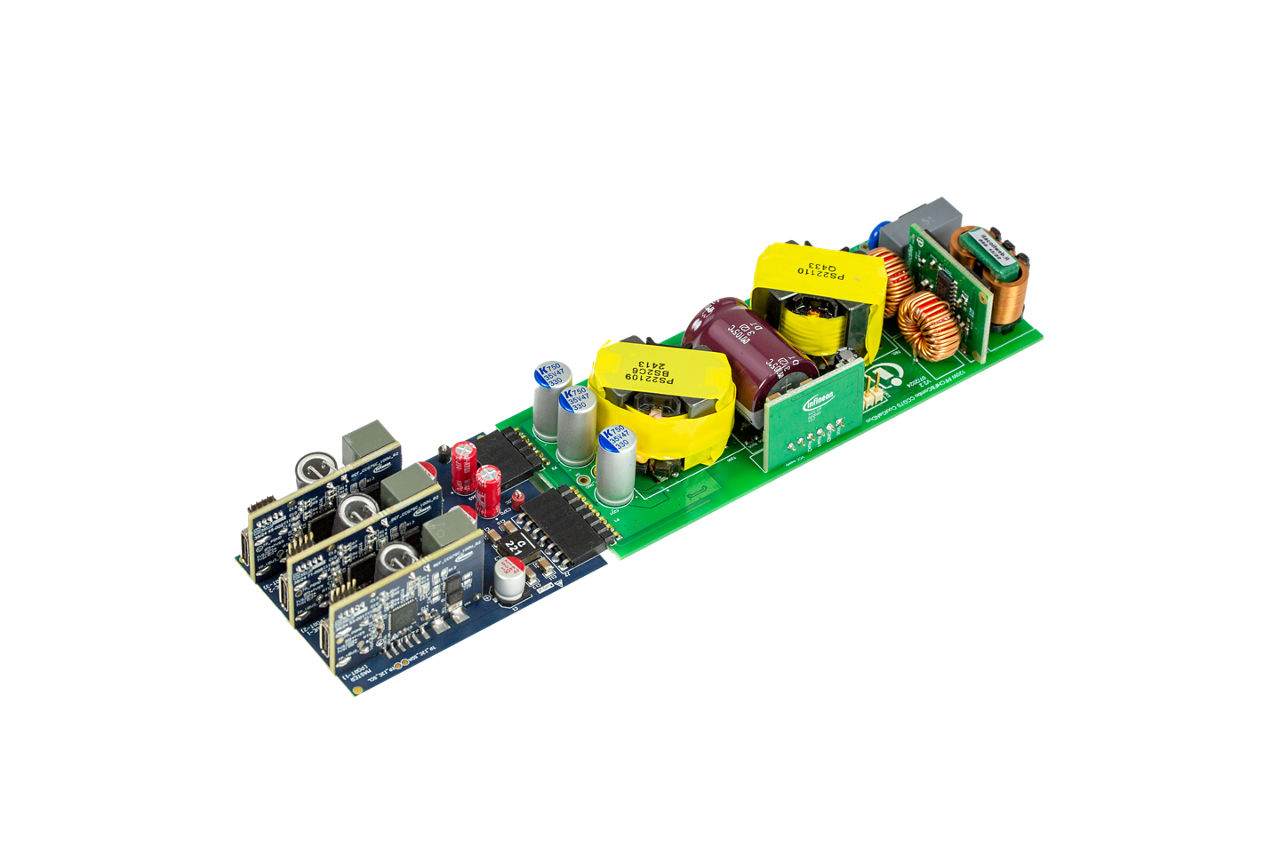

120 W USB Power Delivery evaluation board demonstrates the XDPS2221E controller and CoolGaN™ switches for multi-port USB PD charging application.
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_XDPS2221E_120W_3C
EVAL_XDPS2221E_120W_3C
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    62 x 45 x 23 mm
  • Family
    Power Controller (PWM, PFC)
  • Input Type
    AC
  • Interfaces
    Input Connector AC, Output connector DC, Control interface DC
  • Output Current
    0 A to 5 A
  • Output Voltage
    5 V to 20 V
  • Pout
    0 W to 120 W
  • Qualification
    Consumer
  • Sub Application
    Commercial
  • Supply Voltage
    90 V to 264 V
  • Topology
    Hybrid flyback
Recommended
OPN
EVALXDPS2221E120W3CTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The XDP™ XDPS2221E controller is an easy- to-use, highly integrated device including the multimode PFC controller, the hybrid-flyback (HFB) controller. The high level of integration for both PFC and HFB stages makes it the perfect choice for wide input – wide output applications.

Features

  • PFC + Hybrid-flyback + DC/DC-Buck
  • Maximized peak efficiency above 95%
  • Wide output voltage page for USB-PD 3.1
  • 120 W output power
  • CoolGaN™ swithes at PFC and half-bridge
  • 3-port PD output with EZ-PD™ CCG7SC

Benefits

  • PFC + HFB combo control for PD charging
  • Minimized standby power consumption
  • Compliance to DoE Level VII
  • Scalability from single- to multi-port
