EVAL_TDM3885_3.3VOUT

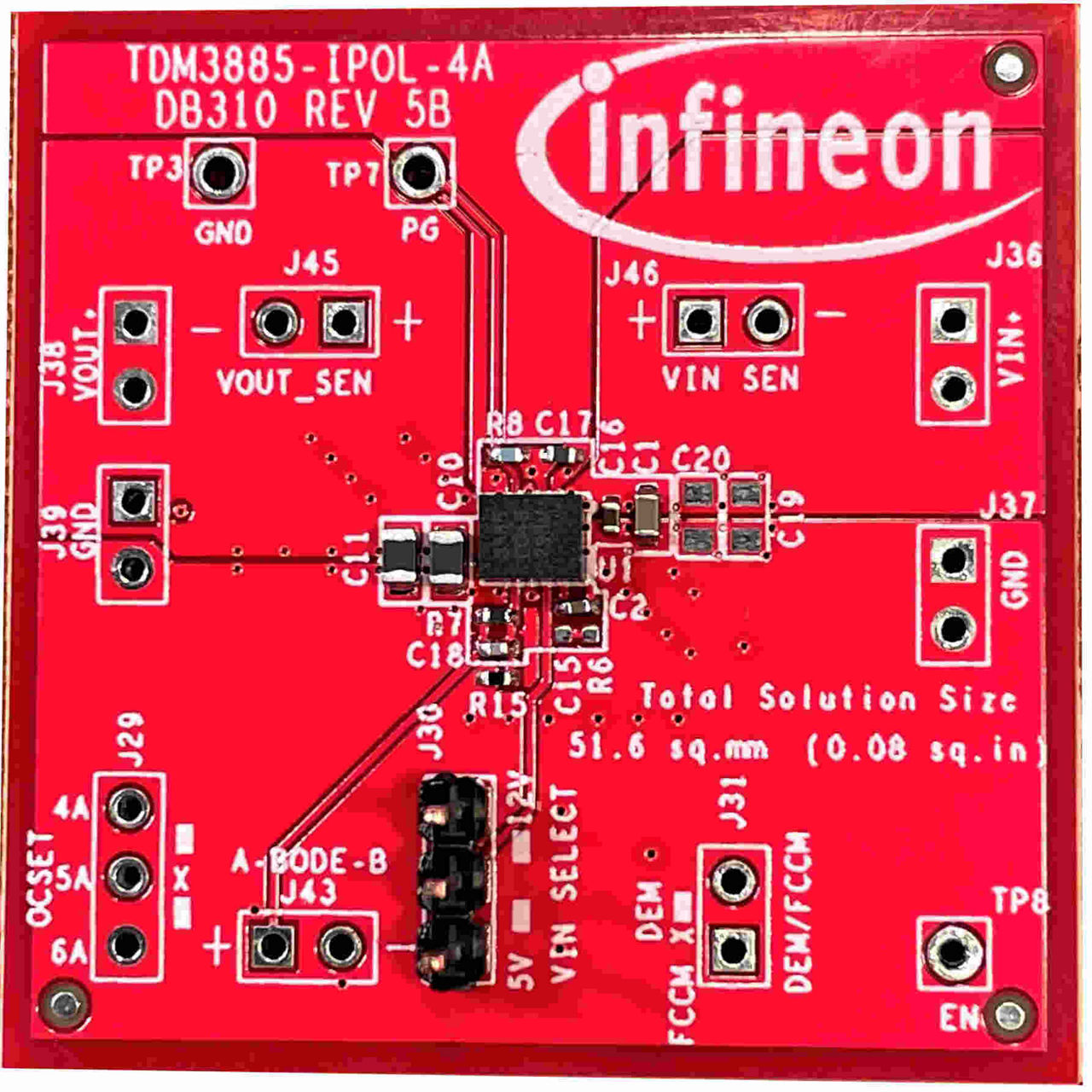

Evaluation board 4 A IPOL synchronous buck voltage regulator with integrated inductor
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TDM3885_3.3VOUT
EVAL_TDM3885_3.3VOUT
User Manual

Product details

  • Family
    DC-DC Converter
  • Frequency
    724 kHz
  • Input Type
    DC
  • Input Voltage range
    10.8 V to 13.2 V
  • Input Voltage
    12 V
  • Output Current
    4 A
  • Output Voltage range
    3.23 V to 3.36 V
  • Output Voltage
    3.3 V
  • Target Application
    Data Processing, Cellular infrastructure, Power Supplies
  • Topology
    Buck
Recommended
OPN
EVALTDM388533VOUTTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
The EVAL_TDM3885_3.3VOUT 4A POL module is a fully integrated, efficient DC-DC solution. It features a PWM controller, MOSFETs, and inductor, providing accurate power delivery in a space-efficient design. With Vin = 12V, Vout = 3.3V, Fsw = 600kHz, and Iout = 0-4A, it offers stable performance with ceramic capacitors without compensation.

Features

  • Optimized module with inductor included
  • Enhanced stability IPOL engine
  • Enhanced light load efficiency
  • Pre-bias capable soft-start
  • Precision reference (0.5 V +/-1.0%)

Applications
