EVAL_TDA38812_3.3VOUT
EVAL_TDA38812_3.3VOUT
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    Single Phase
  • Family
    DC-DC Converter
  • Frequency
    0.4 MHz to 1 MHz
  • Input Type
    DC
  • Output Current max
    20 A
  • Qualification
    Industrial
  • Sub Application
    Power Supplies
  • Supply Voltage
    2.7 V to 16 V
  • Target Application
    Single phase Buck
  • Topology
    Buck
Recommended
OPN
EVALTDA3881233VOUTTOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

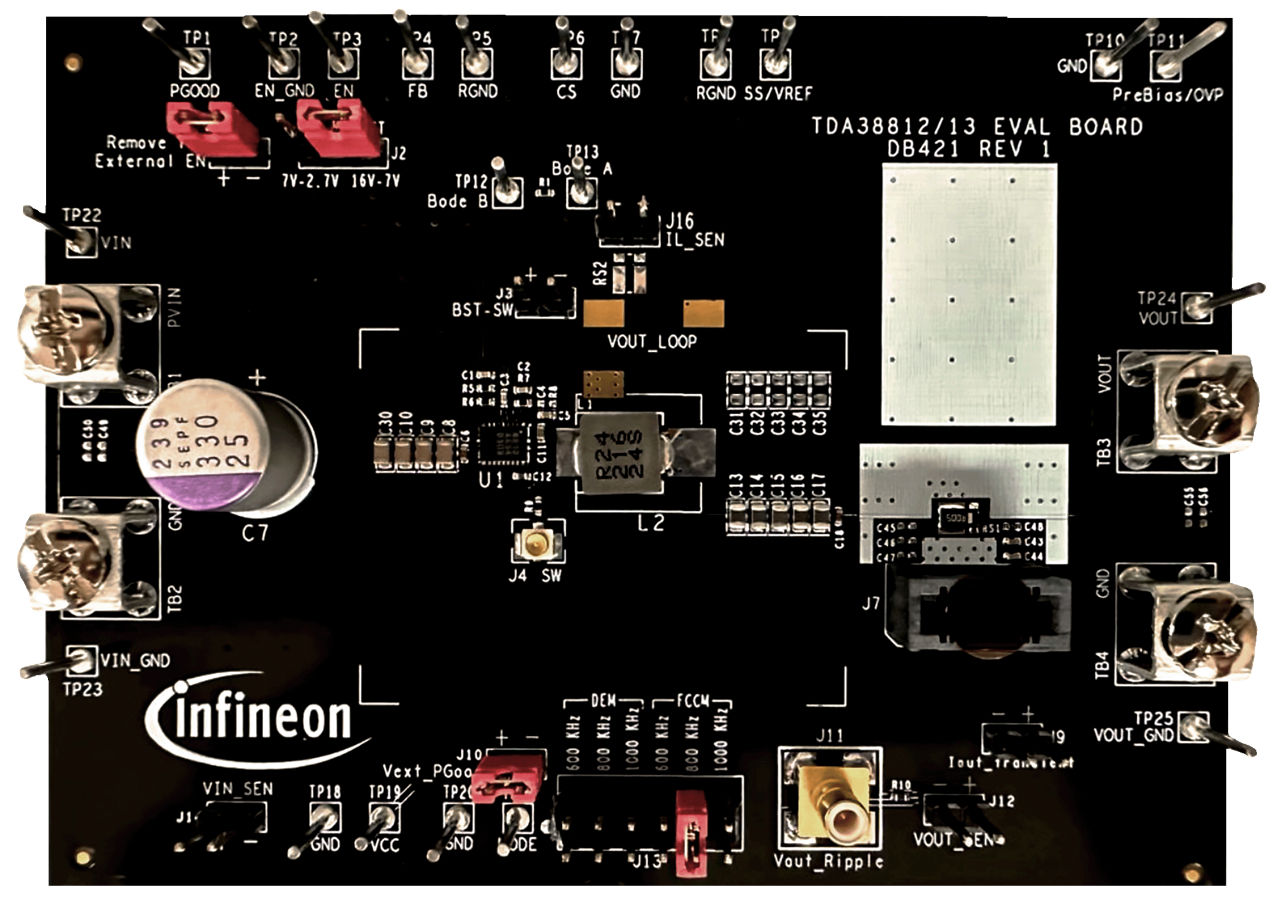

The evaluation board EVAL_TDA38812_3.3VOUT demonstrates the capability of the compact, versatile, high performance, and easy to use TDA38812 point of load regulator that use a proprietary COT that delivers fast transient response required for demanding applications in server, AI, datacom, telecom and storage markets. The board features VIN = +12 V, VOUT = 3.3 V, Fsw = 600 KHz - 1000 KHz at Iout 0 to 20 A

Features

  • Wide input voltage range
  • No external compensation
  • Supports both FCCM and DEM mode
  • Programmable Fsw
  • Soft start
  • OCP limit
  • Enhanced protection features

Benefits

  • Support diverse end applications
  • Compact design
  • No external components
  • Efficiency at light/full load
  • Robust design and reliability

Bill of Material
