Active
RoHS Compliant

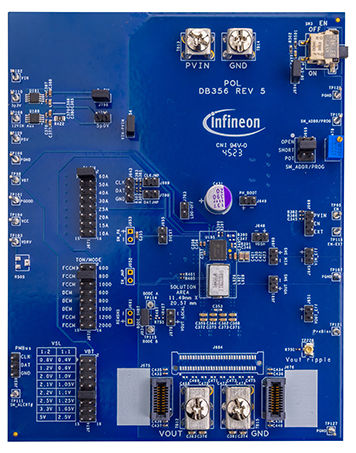

EVAL_TDA38740A_3.3VOUT

Evaluation demoboard 3.3 Vout for IPOL single-voltage regulator TDA38740A
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TDA38740A_3.3VOUT
EVAL_TDA38740A_3.3VOUT
ea.
User Manual

Product details

  • Configuration
    TDA38740A
  • Description
    Evaluation demoboard 3.3 Vout for IPOL single-voltage regulator TDA38740A
  • Family
    OptiMOS™ IPOL
  • Frequency
    400 kHz to 1000 kHz
  • Halogen-free
    yes
  • Input Type
    DC
  • Output Current max
    40 A
  • Output Voltage
    0.25 V to 5.12 V
  • Supply Voltage
    3 V to 17 V
  • Target Application
    Data centers
  • Topology
    Buck
Recommended
OPN
EVALTDA38740A33VOUTTOBO1
Product Status active
Infineon Package ---
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package ---
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
OptiMOS™ IPOL TDA38740A is a synchronous buck converter with PMBus communication interface, providing a compact, high-performance, and flexible solution in a compact QFN package. This evaluation board is to be used during the designing process for evaluating and measuring characteristic curves, and for understanding the various part features.

Features

  • Forced continuous conduction mode
  • Diode emulation
  • Programmable switching frequency
  • Monotonic start-up
  • Enhanced pre-bias start-up
  • Thermally compensated internal OCP

Benefits

  • 13 writes to MTP
  • Small size with 5x6 mm2 PQFN
  • PMBus communication
  • Enhanced light load efficiency

Applications
