EVAL-M1-36-45A

iMOTION™ MADK Evaluation board for CIPOS™ Nano Intelligent Power Modules
User Manual
board
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M1-36-45A
EVAL-M1-36-45A
ea.
User Manual

Product details

  • Applications
    Fans, Pumps, Hair Dryers
  • Board Type
    Evaluation Board
  • Family
    Intelligent Power Modules (IPM), Motor Driver, iMOTION™ Motor Control ICs, Microcontroller
  • Input Type
    AC
  • Motor Power max
    85 W
  • Product Name
    EVAL-M1-36-45A
  • Sub Application
    Fans, Hair Dryers, Pumps
  • Target Application
    Motor Control & Drives, Industrial, Consumer, Automation
  • Topology
    3-Phase Inverter
OPN
EVALM13645ATOBO2
Product Status not for new design
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

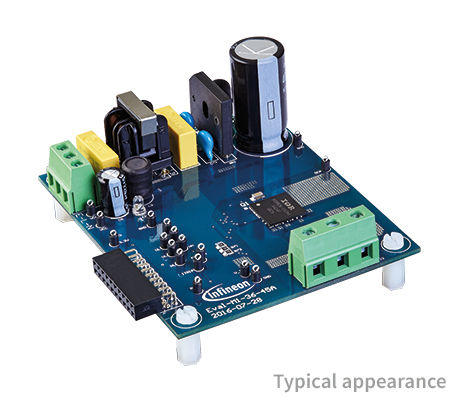

This evaluation board is a complete power stage to drive 3-phase motor, powered by IRSM836-045MA CIPOS™ Nano . It is equipped with a standardized iMOTION™ MADK M1 platform interface. With standard oscilloscope probes easy access to several measurement points is granted. The featured IRSM836-045MA is a 4 A, 500 V Intelligent Power Module (IPM) for Small Appliance Motor Drive Applications

Features

  • Power stage to drive 3-phase motor
  • For 10-80 W motor drives
  • iMOTION™ MADK M1 platform interface
  • 230 V Grid
  • Rohs compliant
