EVAL_IGK080B041S_GAN

CoolGaN™ BDS evaluation board with 40 V 6mΩ part in UFWLB-16 (WLCSP 1.7x1.7) package.
User manual
board
Video
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_IGK080B041S_GAN
EVAL_IGK080B041S_GAN
User manual


Product details

  • Family
    CoolGaN™
  • Operating Voltage max
    40 V
  • Operating Voltage
    28 V

Recommended
OPN
EVALIGK080B041SGANTOBO1
Product Status active and preferred discontinued
Infineon Package 1 --
Package Name N/A N/A
Packing Size 1 N/A
Packing Type CONTAINER CONTAINER
Moisture Level NA N/A
Moisture Packing NON DRY NON DRY
Lead-free No No
Halogen Free No No
RoHS Compliant Yes No

Product Status
Active
Infineon Package 1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

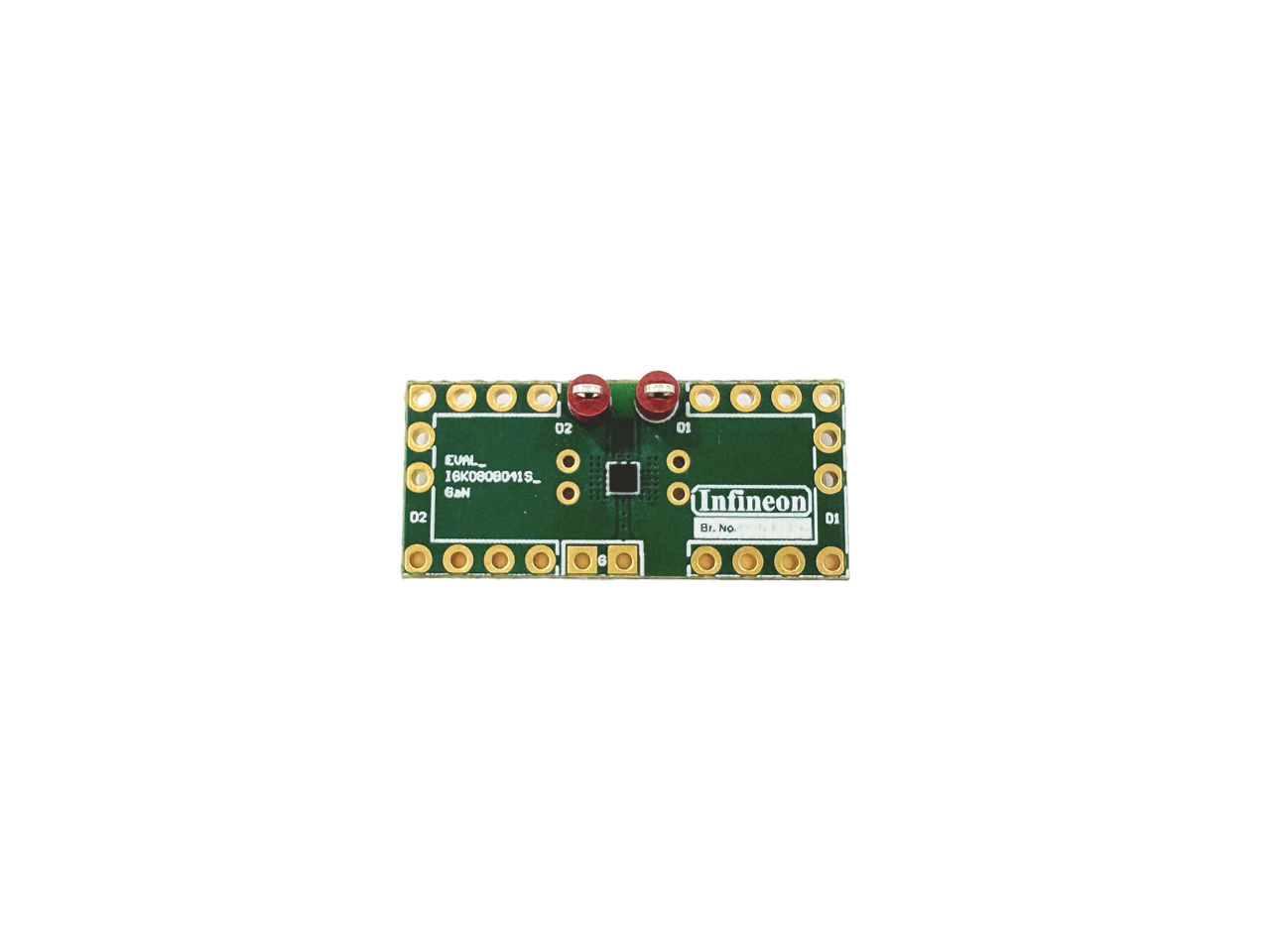

EVAL_IGK080B041S_GaN is a compact daughterboard for assembling and evaluating a CoolGaN™ 40 V, 6 mΩ bidirectional switch (BDS) in a 1.7 × 1.7 mm WLCSP package. It provides Berg stick terminals for drain‑1, drain‑2, and gate connections, making it compatible with the EVAL_GD_BDS_GaN gate driver evaluation board.

Features

  • UFWLB-16 (WLCSP 1.7x1.7) package
  • Drain to drain configuration
  • Compatible with EVAL_GD_BDS_GaN
  • Qualified according to JEDEC

Benefits

  • Bidirectional voltage blocking
  • Bidirectional current blocking
  • Low on-resistance (6mΩ)
  • Low gate charge
  • Low output charge
  • Lower cost

Applications
