Active and preferred
RoHS Compliant

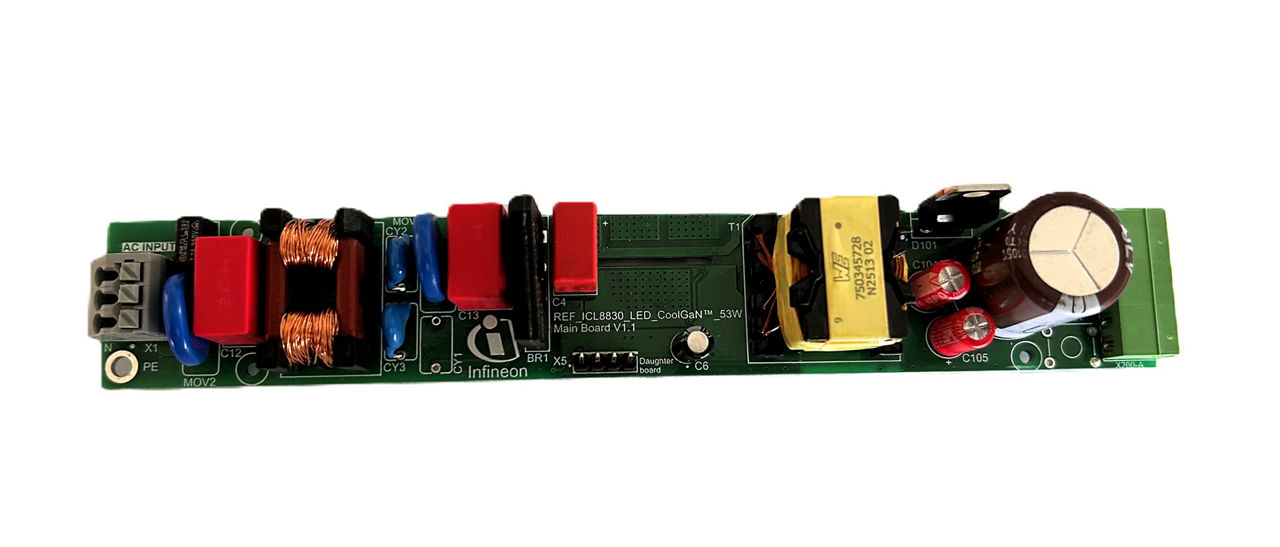

EVAL_ICL8830_GAN

Evaluation board with the new ICL8830 PFC flyback controller and CoolGaN™ Transistor, optimized for high-frequency LED drivers and battery chargers
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_ICL8830_GAN
EVAL_ICL8830_GAN
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    181*27*25 mm
  • Family
    LED Driver & Ballast Controller
  • Frequency max
    200 kHz
  • Input Type
    AC
  • Pout max
    52.8 W
  • Qualification
    Industrial
  • Target Application
    Lighting
  • Topology
    Flyback
Recommended
OPN
EVALICL8830GANTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This board showcasing ICL8830, a high-frequency single-stage PFC flyback controller paired with Infineon's CoolGaN™ Transistor in DPAK, designed for efficient power conversion. Supports switching frequencies above 300 KHz, demonstrating the controller's capability to operate with GaN technology. Optimized for minimal power losses, this board is suitable for developing high-performance LED drivers and battery chargers.

Features

  • Featuring ICL8830 flyback controller
  • Optimized with GaN Transistors in DPAK
  • Comprehensive set of protections

Benefits

  • High-frequency operation for size reduction
  • Reduced power losses with GaN
  • High efficiency at high switching frequency

List of Components:

Bill of Material
