EVAL-FFXMR12KM1DR

Evaluation board for 1200 V CoolSiC™ MOSFET 62 mm half-bridge modules
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-FFXMR12KM1DR
EVAL-FFXMR12KM1DR
User Manual

Product details

  • Applications
    Medical, Solar String Inverter, Induction Cooking, EV charging, Energy Storage
  • Board Type
    Evaluation Board
  • Dimensions
    110x61 mm
  • Family
    CoolSiC™ MOSFET
  • Frequency
    1 kHz to 100 kHz
  • Input Type
    DC
  • Interfaces
    Others
  • Motor Power max
    40 W
  • Product Name
    EVAL-FFXMR12KM1DR
  • Qualification
    Industrial
  • Supply Voltage
    15 V to 24 V
  • Target Application
    EV Charger, Energy Storage, Solar String Inverter
  • Topology
    Half Bridge
OPN
EVALFFXMR12KM1DRTOBO1
Product Status on request
Infineon Package -
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package -
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

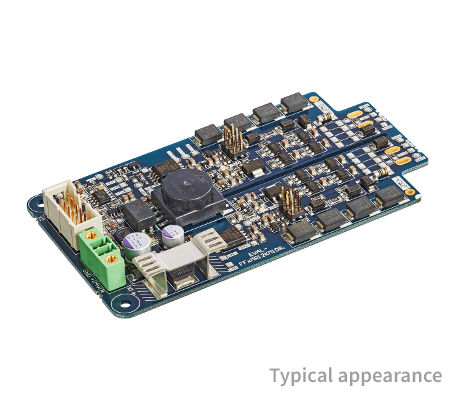

The EVAL-FFXMR12KM1DR is a gate driver board for driving 62 mm modules with our latest CoolSiC™ Trench MOSFET technology in a half-bridge configuration. It shows a reliable and fast controllability of such devices using the famous 1EDI20I12AH compact gate driver together with a booster stage to increase the driver output power.

Features

  • Half-bridge driver
  • For CoolSiC™ MOSFET 62 mm modules
  • Fits electrically & mechanically
  • Neg, voltage adj. from -5 V to 0 V
  • Pos. voltage adj. for highswitching
  • PCB design to limit the PCB heating
