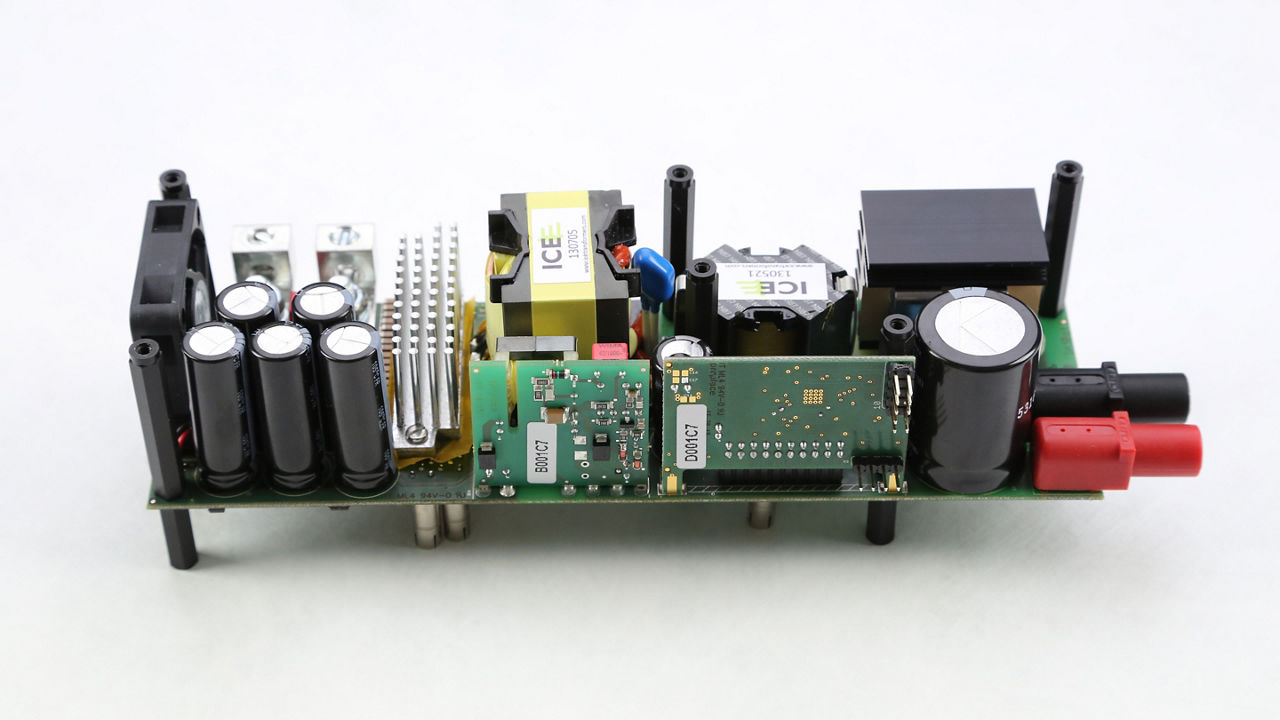

EVAL_600W_12V_LLC_C7

600W half-bridge LLC evaluation board with 600V CoolMOS™ C7 SJ MOSFET in analog and digital versions
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_600W_12V_LLC_C7
EVAL_600W_12V_LLC_C7
Application Notes

Product details

  • Applications
    PC Power, Server
  • Board Type
    Evaluation Board
  • Dimensions
    220 x 75 x 60mm
  • Family
    Power Controller (PWM, PFC), MOSFET, Gate Driver
  • Frequency
    132 kHz to 155 kHz
  • Input Type
    DC
  • Interfaces
    x
  • Mounting
    SMD, THD
  • Output Current
    0 A to 50 A
  • Output Voltage
    12 V
  • Pout
    0 W to 600 W
  • Product Name
    EVAL_600W_12V_LLC_C7
  • Qualification
    Industrial
  • Sub Application
    Server, PC Power
  • Supply Voltage
    350 V to 410 V
  • Target Application
    Power Supplies
  • Topology
    Half Bridge, LLC
Recommended
OPN
EVAL600W12VLLCC7TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The evaluation board showcases the design of the half-bridge LLC stage of a server SMPS to meet 80+ Titanium standard efficiency requirements. It uses 600V CoolMOS™ C7 SJ MOSFET, OptiMOS™ 40V low voltage power MOSFET, QR CoolSET™, EiceDRIVER™ 2EDL and 2EDN gate drivers, and an LLC controller for analog or XMC™ microcontroller in the digital version.

Features

  • Output voltage: 12V
  • Output current: 50A
  • Peak efficiency @ 50% load > 97.4%
  • Efficiency @ 10% load > 95%

Benefits

  • 80+ Titanium Stardard achieved
  • Optimal use of MOSFET devices
  • ZVS achieved in entire load range
  • HV MOSFET safe operation in LLC

Applications
