EVAL_5BR2280BZ_700MA1

10.5 W non-isolated high-voltage buck converter evaluation board
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_5BR2280BZ_700MA1
EVAL_5BR2280BZ_700MA1
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Device
    ICE5BR2280BZ
  • Dimensions
    70 (L) x 35 (W) x 20 (H) mm
  • Family
    CoolSET™
  • Frequency
    65 kHz
  • Input Type
    AC
  • Input Voltage
    230 V
  • Iout
    0.2 A
  • Isolated
    No
  • Output Current
    0.2 A
  • Output Voltage
    15 V
  • Pout max
    10.5 W
  • Product Name
    EVAL_5BR2280BZ_700mA1
  • Qualification
    Industrial
  • Sub Application
    Offline SMPS
  • Target Application
    Power Supplies, Industrial, Consumer, SMPS, Home Appliances
  • Topology
    Buck
Recommended
OPN
EVAL5BR2280BZ700MA1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

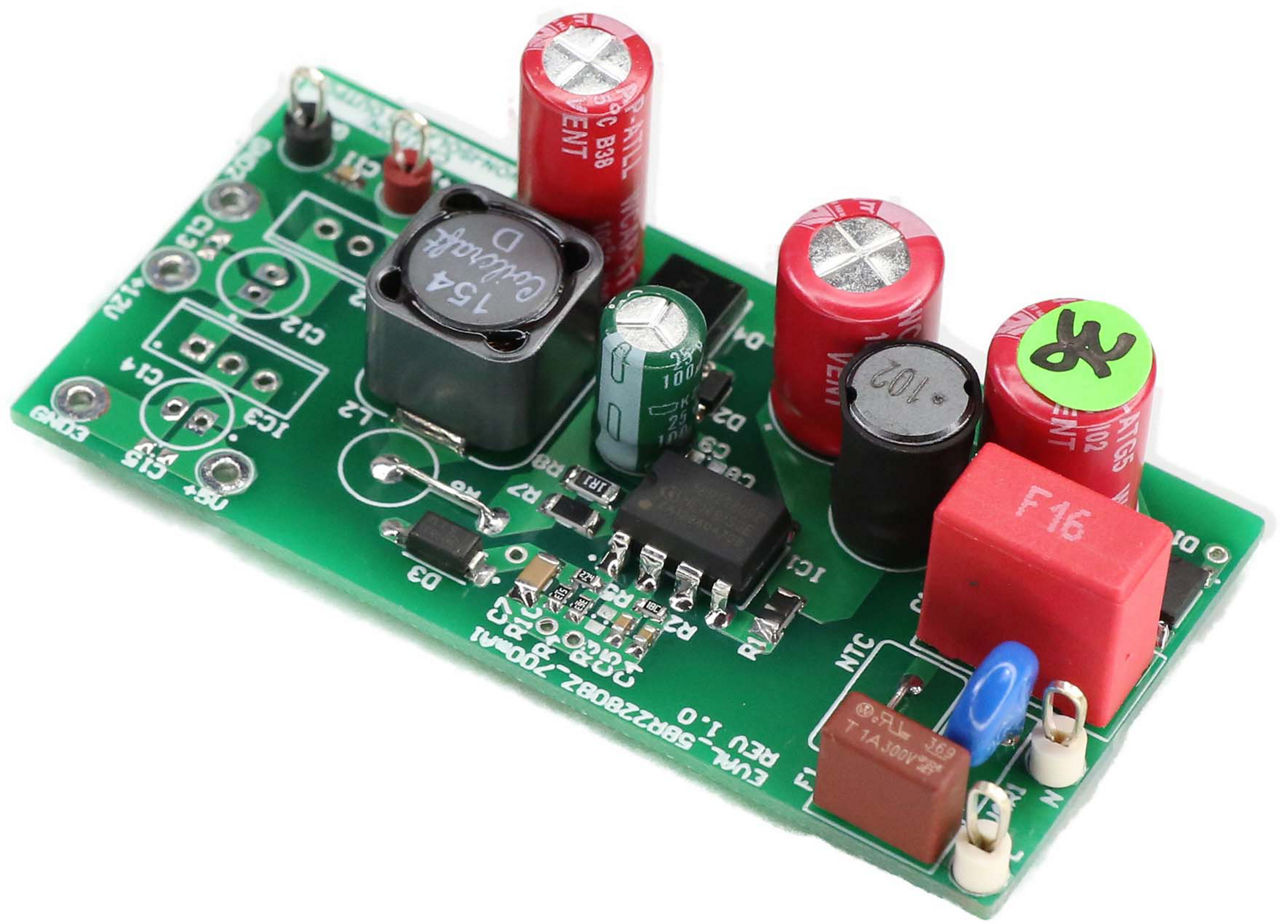

The EVAL_5BR2280BZ_700mA1 is an evaluation board configured in a non-isolated high-voltage buck topology and comes along with the ICE5BR2280BZ , a product of Infineon’s 5th generation fixed frequency CoolSET™ family .Designers can evaluate the performance of the buck converter easily and quickly, thanks to:An universal wide input with a single 15 V / 700 mA outputPlaceholders for dual LDOsImplemented off-the-shelf components

Features

  • Universal input 85~264 VAC
  • Single non-isolated output 15 V / 700 mA
  • > 81% full-load efficiency @ 230 VAC

Benefits

  • Cost-efficient buck topology for non-isolated auxiliary power supply
  • Ease of evaluation with placeholders for dual LDOs to support different output requirements
  • Ease of mock-up with off-the-shelf components and dual footprint to support SMD or through-hole power inductor

Applications

Bill of Material
