EVAL_3K3W_ARCP_PSU

High efficiency 3.3 kW PSU evaluation board for server and data center
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

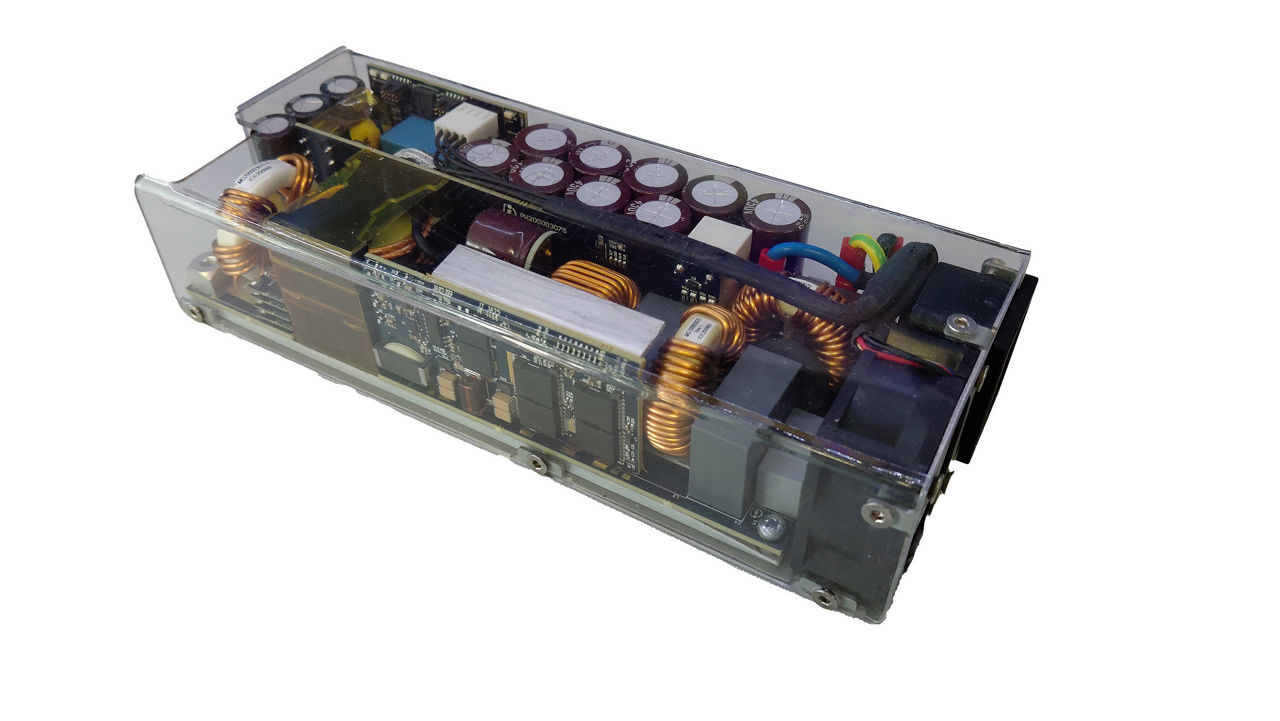

EVAL_3K3W_ARCP_PSU
EVAL_3K3W_ARCP_PSU
Application Notes

Product details

  • Efficiency
    Efficiency max 99.26% for PFC / 98% for full PSU
  • Input Voltage
    230 V
  • Output Power max
    3300 W
  • Output Voltage
    50 V
  • Power density
    95 W/in³
Recommended
OPN
EVAL3K3WARCPPSUTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The EVAL_3K3W_ARCP_PSU has an ARCPTP AC-DC converter for PFC and THD correction, and a GaN HB LLC DC-DC converter with FB rectification for safety isolation and output regulation, achieving 98% efficiency. It features a baby-boost converter for server hold-up time compliance, reducing bulk capacitance and increasing power density significantly always.

Features

  • 98% Efficiency @ 95 W/in³
  • OptiMOS™ High Efficiency
  • Planar magnetic design
  • Full digital control
  • Totem-Pole PFC GaN
  • Half-Bridge LLC converter

Benefits

  • Complete Infineon solution
  • Full PSU including PFC
  • Very high efficiency
  • Extended Hold Up Time

Applications
