EVAL_38164_SVID

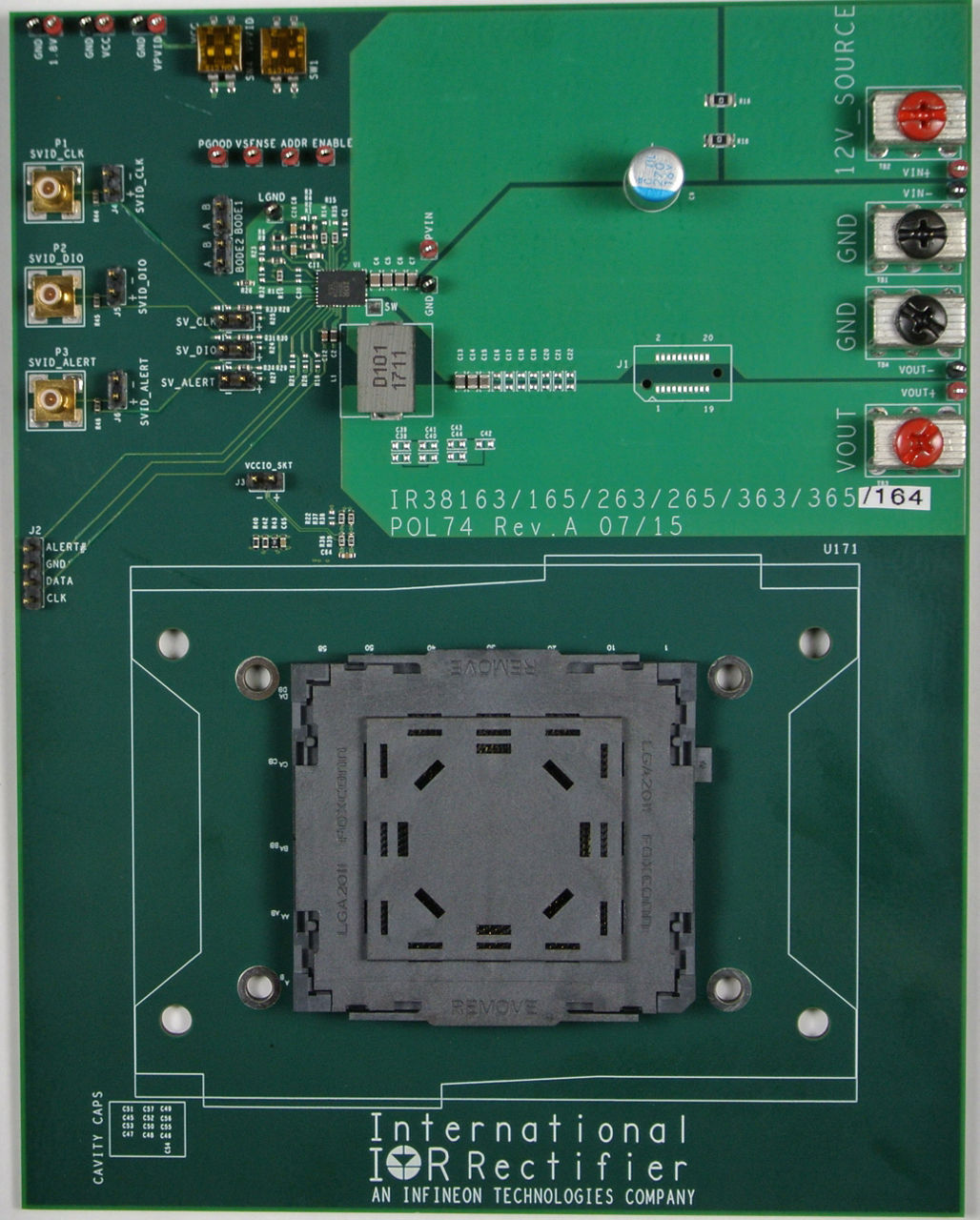

Evaluation board featuring the IR38164_SVID
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_38164_SVID
EVAL_38164_SVID
Data Sheet

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    5.5" x 7" 10 layer board
  • Family
    DC-DC Converter
  • Input Type
    DC
  • Output Voltage min
    1 V
  • Product Name
    EVAL_38164_SVID
  • Qualification
    Industrial
  • Supply Voltage
    5 V to 12 V
  • Target Application
    Data Processing
  • Topology
    Buck
Recommended
OPN
EVAL38164SVIDTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The IR38164 OptiMOSTM IPOL is a highly efficient, fully integrated dc-dc regulator with Intel SVID and I2C/PMBusTM interfaces, offering programmability of switching frequency, output voltage, and fault responses over a wide input range. The EVAL_38164_SVID user guide provides detailed application information for the IR38164 in the data sheet.
