EVAL-1ED38X0DCT

Companion board for EVAL-1ED3890MX12M for gate driver configuration purposes
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED38X0DCT
EVAL-1ED38X0DCT
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Gate Driver, CoolSiC™ MOSFET
  • Input Type
    DC
  • Product Name
    EVAL-1ED38X0DCT
  • Qualification
    Industrial
  • Target Application
    UPS, EV Charger, Motor Control & Drives
  • Topology
    Half Bridge, High-side switch, Low-side switch
Recommended
OPN
EVAL1ED38X0DCTTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

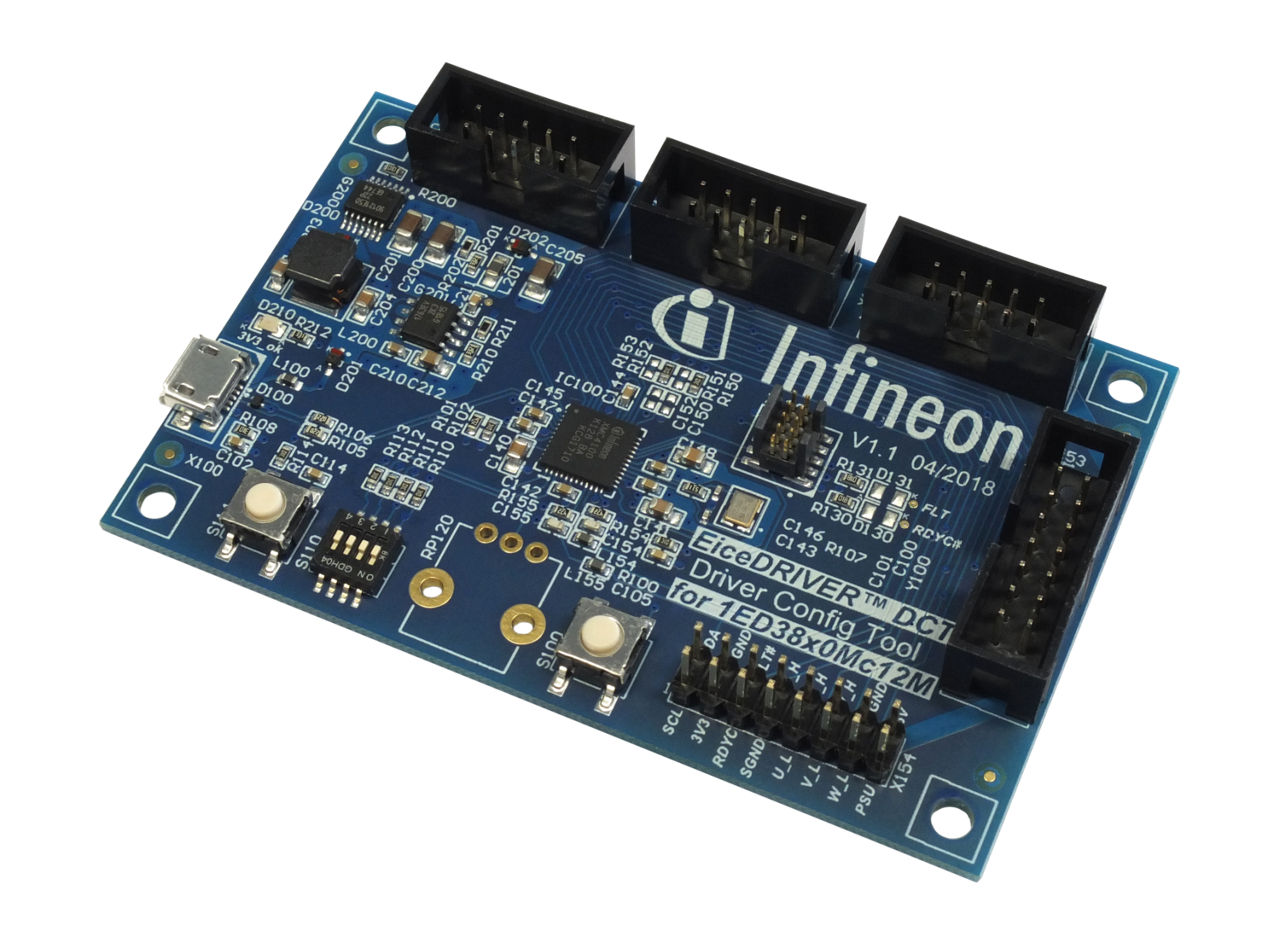

The EVAL-1ED38X0DCT is a companion board to the EVAL-1ED3890MX12M for evaluating the EiceDRIVER™ X3 1ED3890Mx12M . It is XMC4200-powered, and enables I2C configurability for DESAT, Soft-Off, UVLO, Miller-Clamp, TLTO, and Fault. The evaluation board is supported by the highly recommended EiceDRIVER™ 1ED38x0 DCT software available through the Infineon Toolbox ( here ).

Features

  • XMC4200 based companion board meant to be used with evaluation boards that require a microcontroller (e.g., EVAL-1ED3890MX12M)
  • USB connector
  • Connectors enabling connection
