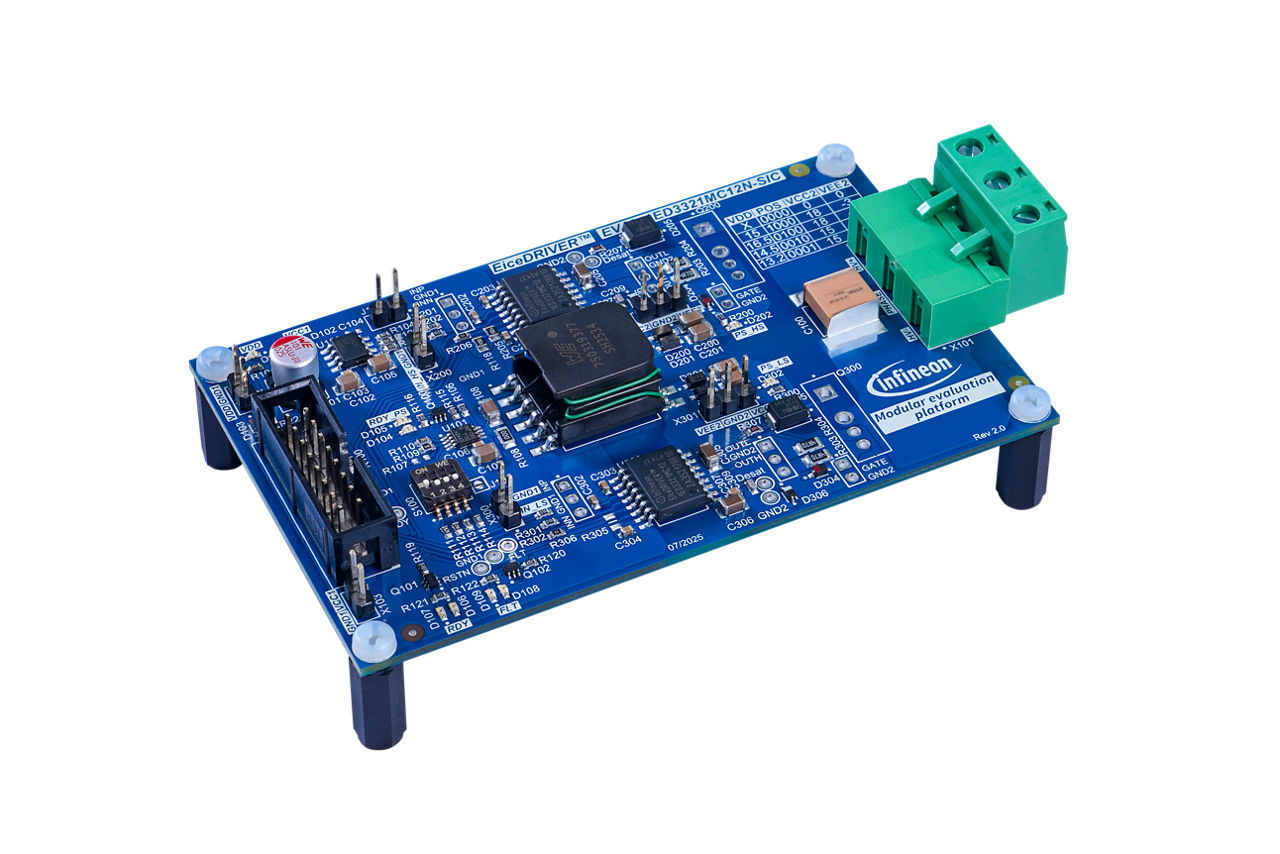

EVAL-1ED3321MC12N-SIC

Evaluation board for EiceDRIVER™ 1ED332xMC12N, Single-channel 5.7 kV (rms) isolated gate driver IC with DESAT and soft-off
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED3321MC12N-SIC
EVAL-1ED3321MC12N-SIC
ea.

Product details

  • Board Name
    EVAL-1ED3321MC12N-SiC
  • Board Type
    Evaluation Board
  • Dimensions
    100 mm x 60 mm x 32 mm
  • Eval-Board Product Mapping
    1ED3323MC12N, 1ED3321MC12N, 1ED3322MC12N, 1ED3320MC12N
  • Family
    Gate Driver
  • Input Type
    DC
  • Output Voltage
    0 V to 900 V
  • Qualification
    Industrial
  • Sub Application
    Industrial
  • Target Application
    Isolated switch mode power supplies (SMPS), High-voltage isolated DC-DC converters, Commercial air-conditioning (CAC), Commercial and agricultural vehicles (CAV), Welding, High voltage DC-DC converter and DC-AC inverter, UPS systems, Solar inverters, Industrial motor drives, servo drives
  • Topology
    Half Bridge
Recommended
OPN
EVAL1ED3321MC12NSICTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon’s EVAL-1ED3321MC12N-SIC evaluation board, part of Modular evaluation platform, simplifies assessment of EiceDRIVER™ 1ED3321MC12N gate drivers and power switches in half-bridge setups. This board works independently or can be plugged into the EVAL-DCLINK-DPT board to assist design engineers in either measuring parameters or conducting Double Pulse Testing (DPT). Also, it is compatible with other ICs from EiceDRIVER™ 1ED332xMC12N family.

Features

  • Single channel isolated gate driver
  • Precise DESAT with fault output
  • Soft-off fault turn-off
  • Separate source and sink outputs
  • 40 V absolute max. output voltage
  • High CMTI >300 kV/μs
  • 11 V/12 V UVLO protection
  • 85 ns prop. delay w/ 35 ns input

Benefits

  • Part of Modular evaluation platform
  • Enables Double Pulse Testing DPT
  • Easy measurement and configuration
  • On-board Isolated power supply
  • Superior protection with precise DESAT
