DEMOBRD BTS3160D V1.1

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMOBRD BTS3160D V1.1
DEMOBRD BTS3160D V1.1

Product details

  • Board Type
    Evaluation Board
  • Family
    Low-Side Switches, Classic HITFET™ 12V
  • Input Type
    DC
  • Output Voltage
    13.5 V
  • Product Name
    DEMOBOARD BTS3160D V1.1
  • Qualification
    Automotive
  • Sub Application
    Resistive, inductive and capacitive loads
  • Supply Voltage
    13.5 V
  • Target Application
    Automotive
  • Topology
    Low-side switch
OPN
DEMOBRDBTS3160DV11TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

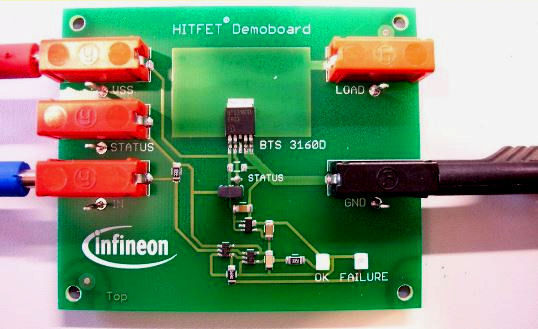

The BTS 3160 Demoboard is a small PCB (7 cm × 8 cm) where a engineering sample is already mounted with a 6 cm² copper cooling area. LEDs show the device status. All device pins can be directly accessed and a jumper disconnects the attached logic from the device to avoid interferenc es for customer measurements.
