Active and preferred

DEMOBOARD TLF4277-2EL

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMOBOARD TLF4277-2EL
DEMOBOARD TLF4277-2EL
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Linear Voltage Regulator (LDO), OPTIREG™ Linear
  • Input Type
    DC
  • Language
    SPICE
  • Output Voltage
    5.1 V
  • Product Category
    Evaluation Boards
  • Qualification
    Automotive
  • Sub Application
    Antenna supply
  • Supply Voltage
    12 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
DEMOBOARDTLF42772ELTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

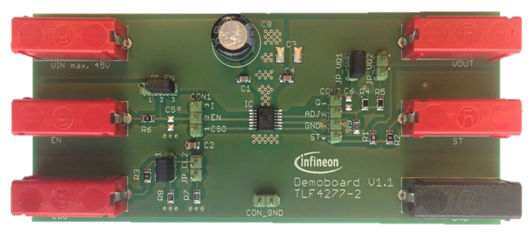

The TLE4277-2EL demoboard is for evaluating the TLF4277-2EL in the PG-SSOP-14 EP package, including the TLF4277-2LD package parameters. It enables evaluation of Infineon's high-performance automotive antenna LDOs with integrated current sense. Designed for infotainment ECUs requiring active antenna diagnostics, the demoboard provides a convenient plug-and-play solution with pre-mounted external components.

Features

  • Plug-and-play evaluation capability
  • Easy verification and configuration
  • Enable, current sense, over-temp, limit
  • Adjustable output voltage
  • AEC-Q100 qualified

Benefits

  • Capabilities of TLF4277-2EL &TLF4277-2LD
  • Easy application adaption for evaluation

Applications
