DEMOBOARD TLE8366EV
DEMOBOARD TLE8366EV
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Dimensions
    10x80
  • Family
    DC-DC Converter, OPTIREG™ Switcher
  • Frequency
    360 kHz
  • Input Type
    DC
  • Mounting
    SMD
  • Output Current
    0 A to 1.8 A
  • Output Voltage
    0.6 V to 16 V
  • Pout min
    0 W
  • Qualification
    Automotive
  • Supply Voltage
    4.75 V to 45 V
  • Target Application
    Automotive
  • Topology
    Buck
Recommended
OPN
DEMOBOARDTLE8366EVTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

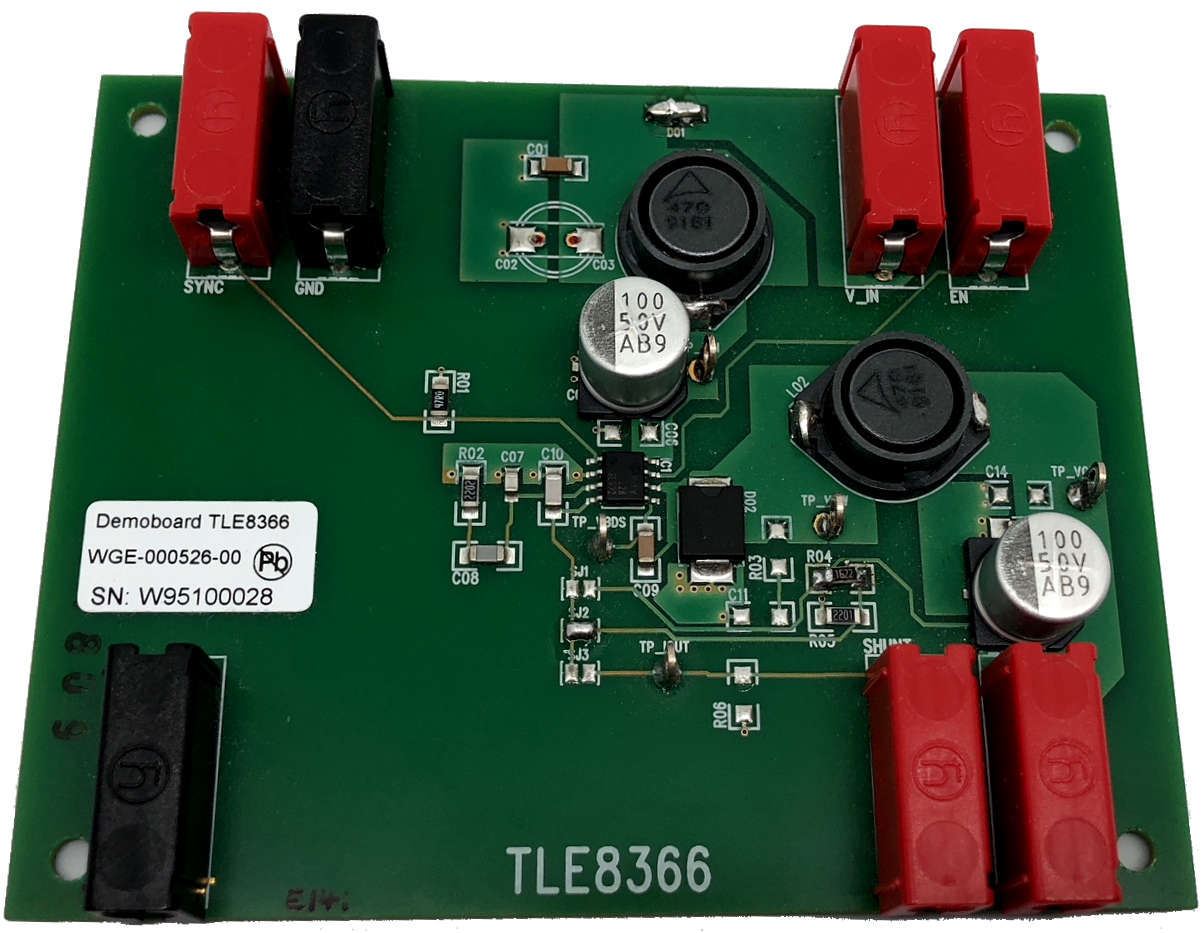

The TLE8366 demoboard evaluates Infineon's TLE8366 buck converter. It features a 1.8A power switch in a small PG-DSO-8 package. Versions include fixed voltage options: TLE8366EV50 (5.0V) and TLE8366EV33 (3.3V), and a variable voltage variant, TLE8366EV. Wide input voltage range of 4.75-45V, suitable for automotive applications.

Features

  • Plug and Play Evaluation Capability
  • Easy verification and configuration
  • Synchronization to external frequency
  • Enable, over-temp shutdown, output limit
  • AEC-Q100 Qualified

Benefits

  • Demonstrate the capabilities of TLE8366
  • Easy application adaption for evaluation

Applications
