DEMOBOARD BTF3050TE
DEMOBOARD BTF3050TE
ea.
User Manual

Product details

  • Applications
    Resistive, inductive and capacitive loads
  • Board Type
    Evaluation Board
  • Family
    Low-Side Switches, HITFET™ + 12V
  • Input Type
    DC
  • Output Voltage
    13.5 V
  • Product Name
    DEMOBOARD BTF3050TE V1.1
  • Qualification
    Automotive
  • Sub Application
    Resistive, inductive and capacitive loads
  • Supply Voltage
    13.5 V
  • Target Application
    Automotive
  • Topology
    Low-side switch
Recommended
OPN
DEMOBOARDBTF3050TETOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

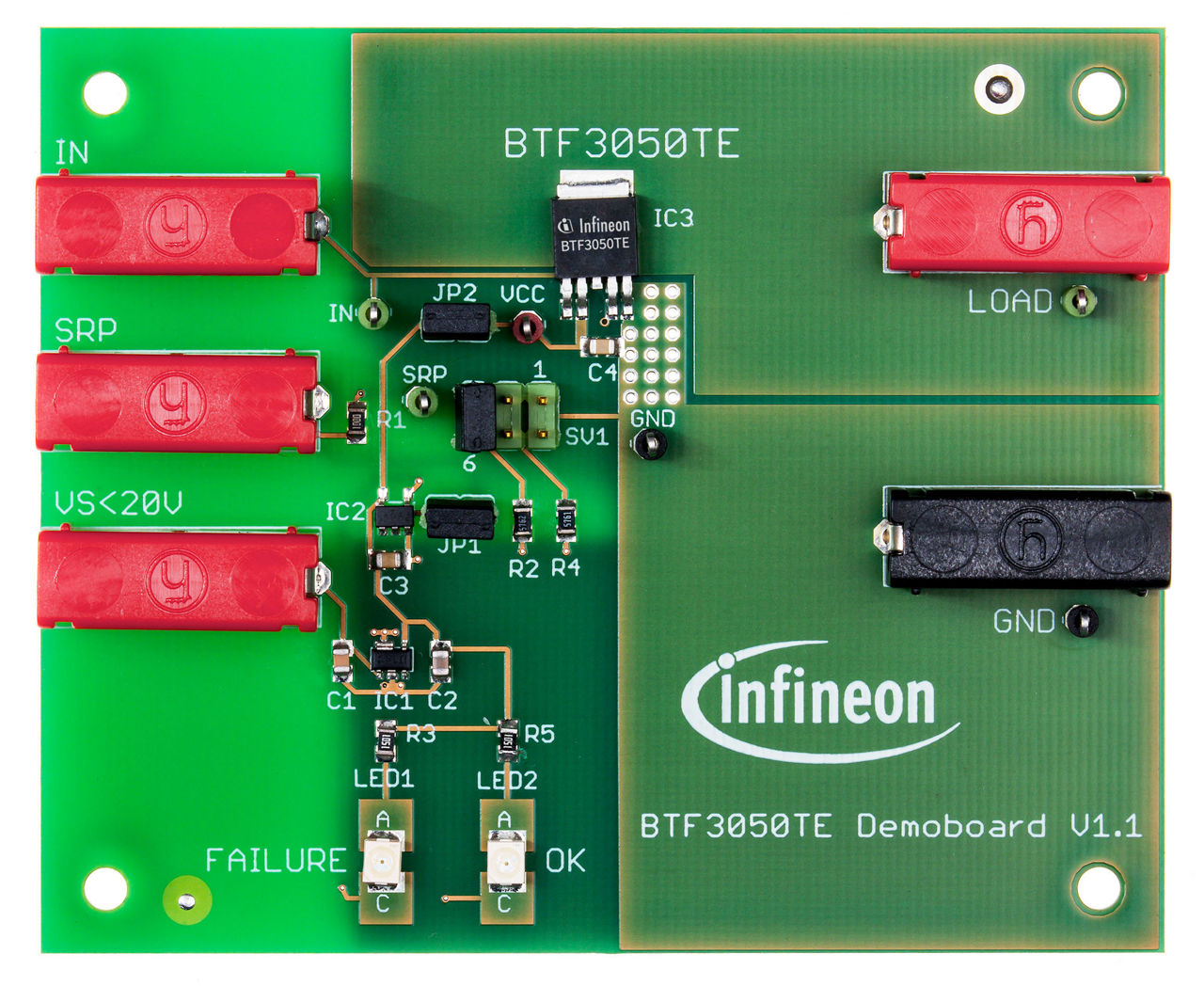

The BTF3050TE Demoboard is a small PCB (85mm x 70mm) where a BTF3050TE sample is already mounted. An integrated voltage regulator provides a stable 5V to the device supply pin. The SRP resistor selector allows the user to control the device’s Slew Rate. LEDs show the device status.
