DEMO SENSE2GOL PULSE

Demo kit with XENSIV™ BGT24LTR11 24 GHz radar sensor in pulsed Doppler mode, for motion, speed, and direction of movement detection
Application Notes
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO SENSE2GOL PULSE
DEMO SENSE2GOL PULSE
ea.
Application Notes

Product details

  • Antenna
    External
  • Board Type
    Demo Board
  • Direction of Motion
    Yes
  • Family
    XENSIV™ 24GHz Radar Sensors
  • Frequency
    24 GHz to 24.25 GHz
  • Halogen-free
    Yes
  • Input Type
    DC
  • Max Detection Range
    20 m
  • Min Detection Range
    1 m
  • Motion
    yes
  • Number of Rx Antennas max
    1
  • Number of Tx Antennas max
    1
  • Product Name
    BGT24LTR11
  • Qualification
    Industrial (JEDEC20/22)
  • Speed [m/s]
    Yes
  • Target Application
    Security systems, Smart Home, Smart Building, Intelligent switches, Speed measurement, Lighting
Recommended
OPN
DEMOSENSE2GOLPULSETOBO1
Product Status active
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

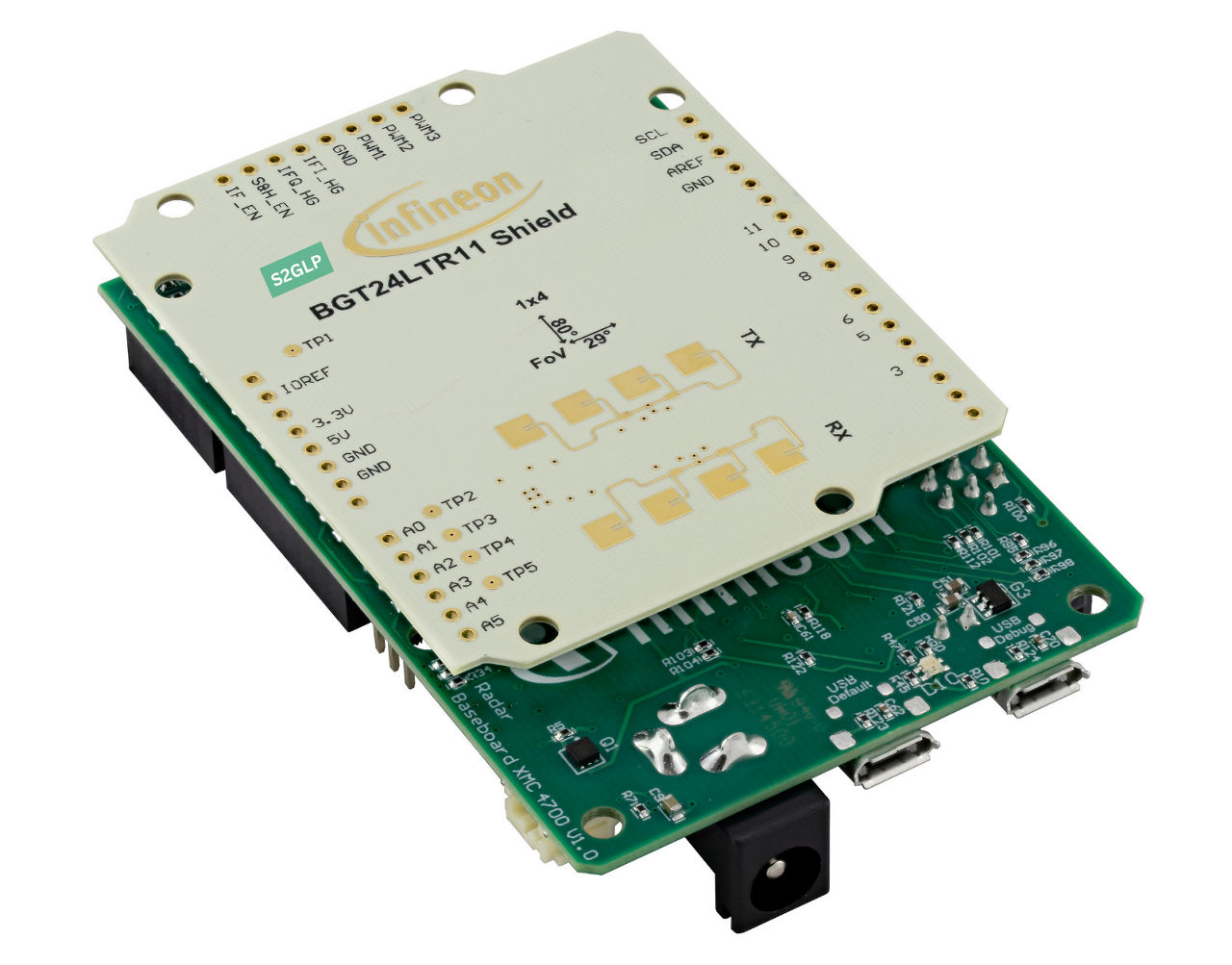

This demo kit features XENSIV™ BGT24LTR11 pulsed-Doppler shield mounted on a Radar Baseboard MCU4 (based on XMC4700 MCU), via the SAMTEC connectors. This kit operates in pulsed-Doppler mode and is compatible with the DAVE™ based embedded software and Radar GUI, enabling easy radar sensor configuration and an immediate display of radar signals targeting motion, speed, and direction of movement detection. The XENSIV™ BGT24LTR11 FMCW shield embeds the BGT24LTR11 24 GHz radar sensor with 1Tx, 1Rx onboard antennas. Additionally, it is adaptable for use with other hardware, such as the Arduino UNO.

Features

  • Detects motion, speed and direction of movement
  • Detection range up to 18 m for humans
  • High sensitivity of detection in comparison to PIR
  • Arduino compatible baseboard
  • Changeable modulation parameters to suit use case
  • Current sensors for monitoring and optimization
  • Operates with Radar GUI (Legacy)

Benefits

  • Detects motion, speed and direction of movement
  • Detection range up to 18 m for humans
  • High sensitivity of detection in comparison to PIR
  • Arduino compatible baseboard
  • Changeable modulation parameters to suit use case
  • Current sensors for monitoring and optimization
  • Operates with Radar GUI (Legacy)
