DEMO-3RBR4765JG
DEMO-3RBR4765JG
Application Notes

Product details

  • Board Type
    Demo Board
  • Family
    CoolSET™
  • Input Type
    AC
  • Output Current
    0.83 A
  • Output Voltage
    12 V
  • Pout
    10 W
  • Qualification
    Industrial
  • Sub Application
    Offline SMPS
  • Supply Voltage
    85 V to 265 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
OPN
DEMO3RBR4765JGTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

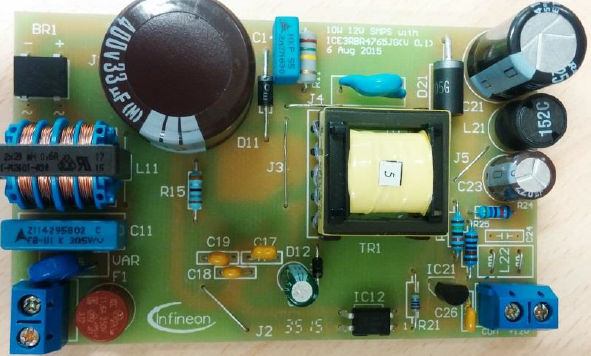

This is the universal input 10 W 12 V off-line flyback converter power supply using Infineon CoolSET™ F3R family, ICE3RBR4765JG ( DSO16/12). The converter is operated in Discontinuous Conduction Mode, 65 kHz fixed frequency, low standby power and various mode of protections for a high reliable system. This demo board is designed to evaluate the performance of ICE3RBR4765JG in ease of use.
