Active and preferred
RoHS Compliant

CYW920819M2EVB-01

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW920819M2EVB-01
CYW920819M2EVB-01
ea.
User Manual

Product details

  • Bluetooth Standard
    BT/BLE 5.4
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Connectivity
    Bluetooth® Dual-Mode
  • Core
    ARM Cortex-M4
  • External memory
    None
  • Family
    AIROC™ CYW20820 Bluetooth® & Bluetooth® LE system on chip
  • GPIOs/Shield Compatibility
    Arduino Uno
  • Hardware Compatibility
    Arduino Uno
  • Input Type
    DC
  • Programmer/Debugger
    Onboard KitProg
  • Programming/Bridging
    USB-UART
  • Qualification
    Industrial ; Consumer
  • Sensors
    Ambient Light,Analog MIC,Digital MIC,Six-axis IMU,Thermistor
  • Software Ecosystem
    ModusToolbox™
  • Software Support
    ModusToolbox
  • Target Application
    Healthcare, Lighting, Home automation, Bluetooth® connected IoT application, sensors, Bluetooth® Mesh, Industrial
  • WiFi Standard
    N/A
Recommended
OPN
CYW920819M2EVB-01
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

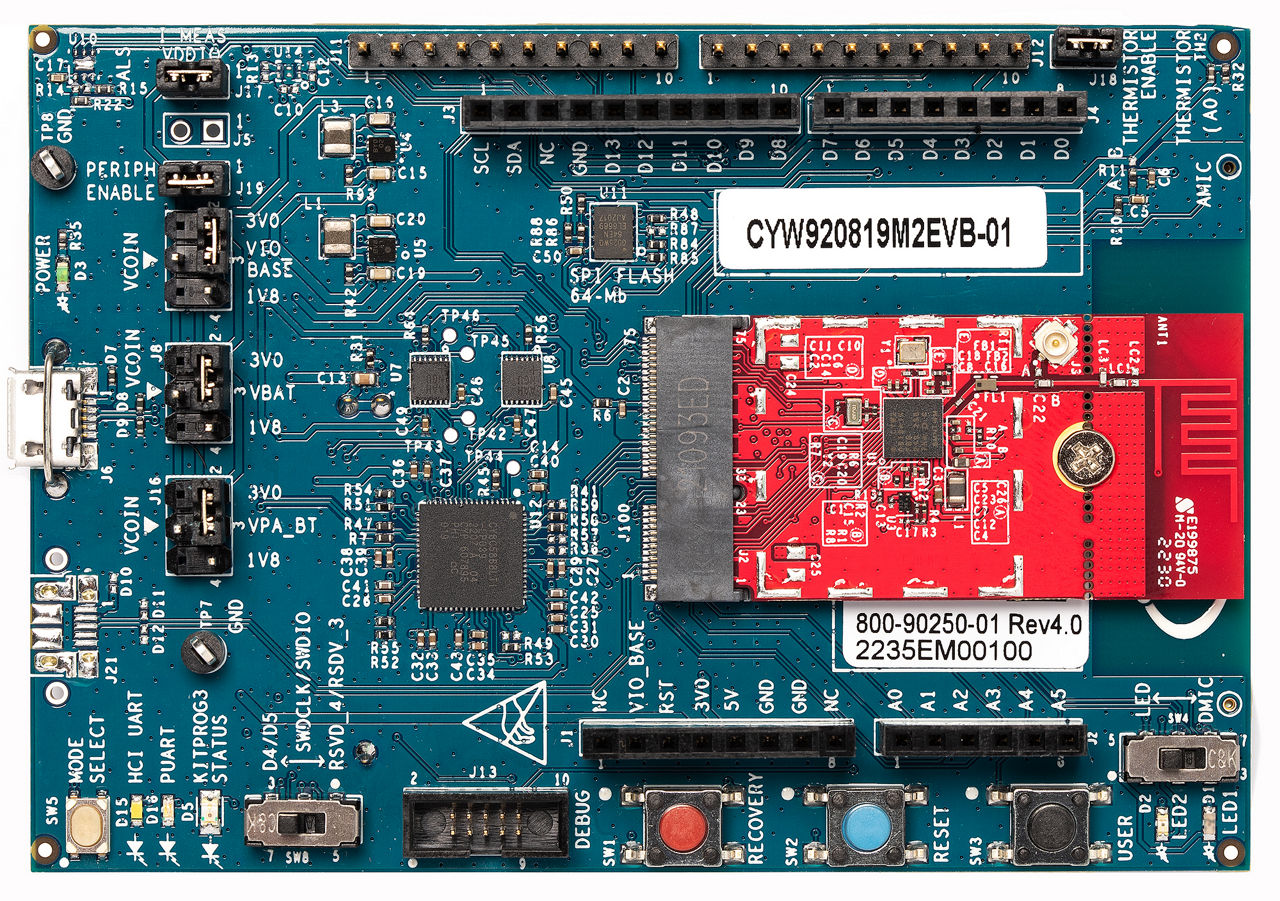

The Infineon CYW920819M2EVB-01 Evaluation kit enables you to evaluate and develop single-chip Bluetooth® applications using the AIROC™ CYW20819, an ultra-low-power Bluetooth® & Bluetooth® LE system on a chip. The CYW20819 is a stand-alone baseband processor with an integrated 2.4 GHz transceiver supporting Bluetooth® & Bluetooth® LE. It employs high integration to reduce external components, thereby minimizing the device’s footprint and cost.

Features

  • 62 pin FPBGA package
  • Arduino compatible headers
  • Ambient light sensor,
  • Thermistor
  • Infineon digital microphone
  • User switches and LEDs
  • USB connector for USB-UART bridge

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications

Applications
