CYW920721M2EVB-03
CYW920721M2EVB-03
User Manual

Product details

  • Bluetooth Standard
    BT/BLE 5.4
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Core
    ARM Cortex-M4
  • External memory
    64 Mb
  • Family
    CYW20739
  • GPIOs/Shield Compatibility
    Arduino Uno
  • Programmer/Debugger
    Onboard KitProg
  • Sensors
    Ambient Light,Analog MIC,Digital MIC,Six-axis IMU,Thermistor
  • Software Support
    ModusToolbox
  • WiFi Standard
    N/A
Recommended
OPN
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

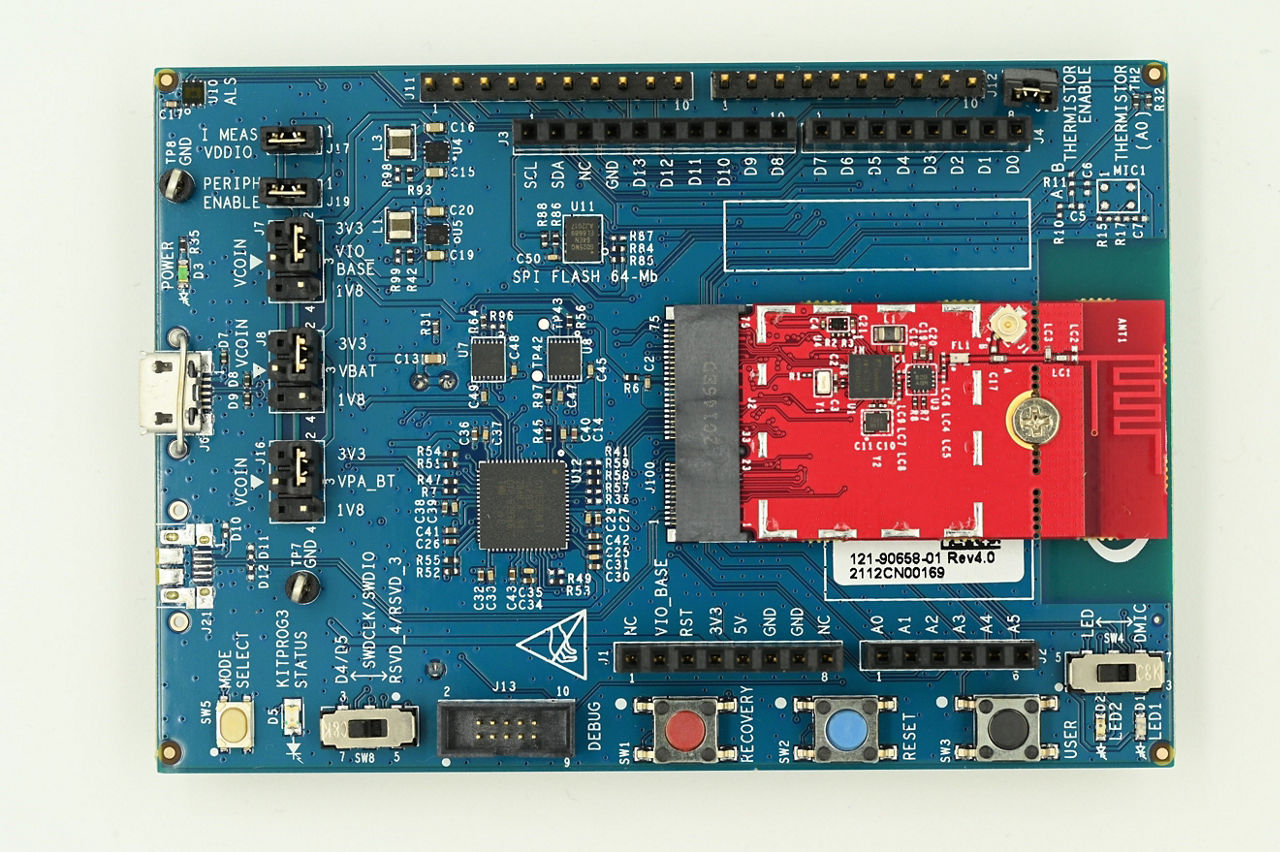

The Infineon AIROC™ CYW920721M2EVB-03 Bluetooth® Evaluation Kit enables evaluation, prototyping, and development of a wide array of IoT applications using the AIROC™ CYW20721. The CYW20721 provides reliable Bluetooth® Core 5.4 connectivity, integrating an Arm® Cortex®-M4 processor with floating point unit. It is a highly integrated device integrating multiple serial interfaces, PWMs, digital microphone interface and more.

Features

  • Standard Arduino headers support
  • Customizable/Programmable user buttons
  • Onboard USB-UART connector
  • Support for Infineon’s AIROCTM BTSTACK
  • Support for ModusToolbox™ software
  • Code examples from the Infineon GitHub

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications

Applications
