Active and preferred
RoHS Compliant

CYUSBS236

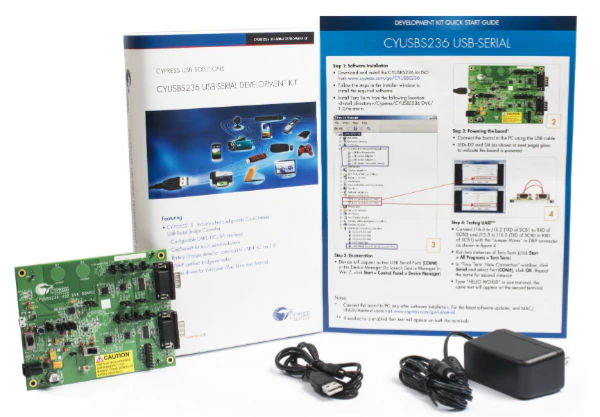

EZ-USB™ Serial bridge controller USB-serial (dual channel) development board
Data Sheet
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYUSBS236
CYUSBS236
ea.
Data Sheet

Product details

  • Board Type
    Evaluation Board
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Industrial, Consumer
  • Target Application
    Adapters and chargers, Home entertainment, Mobile devices
Recommended
OPN
CYUSBS236
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The USB-Serial Bridge Controller series, CY7C65215, by Infineon offers dual configurable serial channels for UART/I2C/SPI interfaces with the industry’s lowest standby power consumption (5 uA). Featuring up to 19 GPIO pins, it is ideal for various applications requiring USB connectivity, including portable medical devices and point-of-sales terminals.

Features

  • USB-UART reference design kit
  • Full-speed dual channel controller
  • IC: CY7C65215-32LTXI
  • Configurable for UART/I2C/SPI interfaces
  • CAPSENSE™ capacitive-touch sensing
  • Battery charging v1.2

Benefits

  • Dual channels interface
  • Configurable for UART/I2C/SPI interfaces
  • USB-Serial SDK for Windows
  • SDKs for Android, Linux, Mac
  • Reference schematics
  • PCB design and layout files

Applications
