Active and preferred
RoHS Compliant

CYBT-343026-EVAL

AIROC™ CYBT-343026-EVAL Bluetooth® & Bluetooth® LE Module Evaluation Kit
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYBT-343026-EVAL
CYBT-343026-EVAL
ea.
Data Sheet

Product details

  • Bluetooth Standard
    BT/BLE 5.0
  • Board Type
    Evaluation Kit
  • CAPSENSE™
    No
  • Connectivity
    Bluetooth Dual-Mode
  • Core
    ARM Cortex-M4
  • External memory
    None
  • Family
    AIROC™ CYW20706 Bluetooth® & Bluetooth® LE System on Chip
  • GPIOs/Shield Compatibility
    Arduino Uno
  • Hardware Compatibility
    Arduino Uno
  • Input Type
    DC
  • Programmer/Debugger
    USB-UART
  • Programming/Bridging
    USB-UART
  • Qualification
    Consumer, Industrial
  • Sensors
    None
  • Software Ecosystem
    WICED™ Smart
  • Software Support
    ModusToolbox
  • Target Application
    Industrial automation, Home entertainment, Wearables
  • WiFi Standard
    N/A
Recommended
OPN
CYBT-343026-EVAL
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

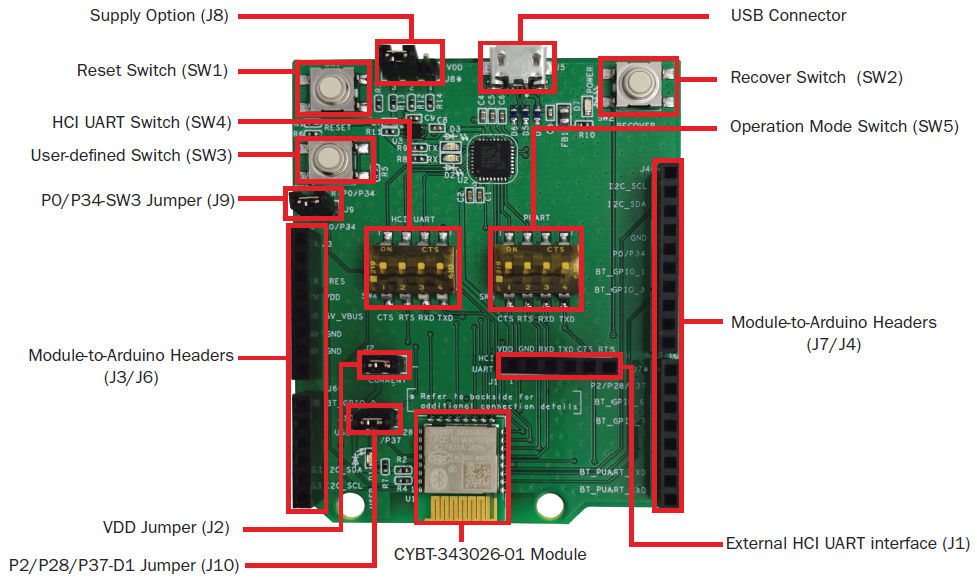

The Infineon AIROC™ Bluetooth® & Bluetooth® LE Module Evaluation Kit (CYBT-343026-EVAL) enables evaluation, prototyping, and development of a wide array of IoT applications using the AIROC™ CYBT-343026-01 module. This module is based on the CYW20706 system on a chip, which is Bluetooth® Core 5.2-compliant, stand-alone baseband processor with an integrated 2.4 GHz transceiver.

Features

  • Generic Access Profile (GAP)
  • Generic Attribute Profile (GATT)
  • Security Manager Protocol (SMP)
  • Radio Frequency Communication protocol
  • Service Discovery Protocol (SDP)
  • BLE Mesh protocol
  • Integrated serial flash
  • Input/output interfaces
  • External headers for debugging

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications

Applications

Bill of Material
