CYALKIT-E04

S6AE102A and S6AE103A Evaluation Kit

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYALKIT-E04
CYALKIT-E04

Product details

  • Board Type
    Evaluation Board
  • Family
    DC-DC Converter
  • Input Type
    DC
  • Qualification
    Consumer, Industrial
  • Target Application
    Wearables, Mobile devices
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

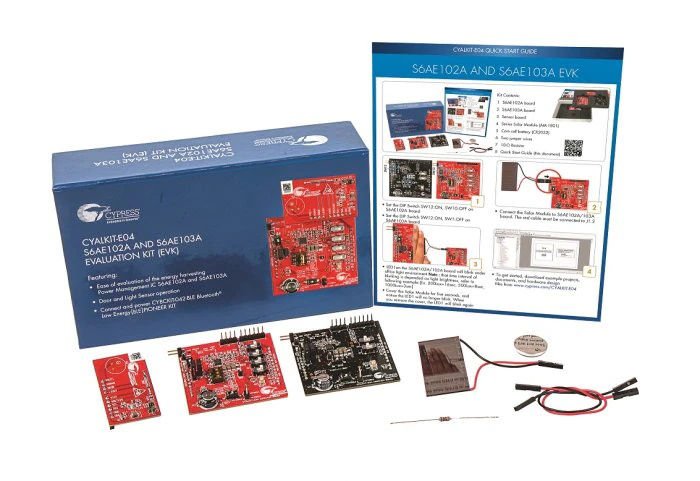

The CYALKIT-E04 S6AE102A and S6AE103A EVK is an energy harvesting evaluation kit for battery-free operation or battery-life extension. It features inputs for series solar cell and primary battery, quiescent current down to 280 nA, power-gating switch, multiplexer, storage control, and sensors for door open/close and light on/off detection.

Features

  • Input channel: two inputs for series solar cell and primary battery (option)
  • Input voltage range: 2.0 - 5.5 V
  • Input over voltage protection: 5.4 V
  • Startup power: 1.2 μW
  • Output channel: up to two outputs for different system loads
  • Output voltage range: 1.1- 5.2 V
  • Quiescent current: Down to 280 nA
  • Power-gating switch: Up to two output power control circuits that control power provided to the system load
  • Multiplexer: Select the power source from series solar-cell and primary battery
  • Storage control: Store energy in up to two external capacitors
  • Peripherals:  - Low power (400 nA) LDO - Low power (30 nA) CR Timer (S6AE103A only) - Low power (20 nA) Comparator (S6AE103A only)
  • Connected sensors:  - Magnetic switch for door open/close detection – Light sensor for light on/off detection
